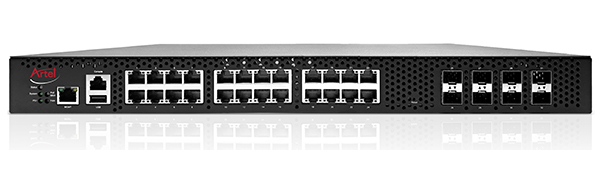

Artel Quarra PTP-10GG8POE Precision Timing Protocol (PTP) 10 Gbps Ethernet Switch with 24 x 100/1000/2.5G/5G/10GT POE+ and 8x 1G/10G Uplink Ports

This Next Generation Quarra PTP Ethernet Switch delivers POE+ power, twenty-four (24) 100/1000/2.5G/5G/10GT local Ethernet Ports, plus eight (8) 10G Uplink SFP Ports. IEEE 1588 PTPv2 with all clocking modes (Transparent Clock, Boundary Clock and Ordinary Clock), plus NTP v4 means Quarra switches are ready for Media Broadcast, ProAV and Industrial use-cases. The unit is ruggedized for heavy use.

• 24x 10GigE with POE+ - Comes with 24x 100/1000/2.5G/5G/10GT Copper (RJ-45) POE (IEEE 802.3at PoE+) Local Ethernet Ports.
• 8x 10Gig SFPs - Also includes 8x 1/10 Gigabit Ethernet SFP+ Slots.
• PoE Monitoring - Supports POE Monitoring, Scheduling, PD Alive Check, and PoE Priority. LEDS indicate PoE Output Power. Supports PoE PD Alive Check Function for PoE Device Power Recycle.
• IEEE 1588 Clock Synchronization - The industry’s most Accurate IEEE 1588 Timing & Synchronization for nanosecond accurate timing.
• All Clocking Modes - Including Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock.
• Hardware Timestamping - Transparent Clock is Hardware Timestamped for super accurate synchronization in 5G networks and video applications. The switch adds timestamps to PTP event packets as they enter and exit the Switch.
• Audio & Video - Tested and fully interoperable with SMPTE 2110, SDVoE (Tx/Rx), AES67 and Dante.
• Grandmaster Integration - Interoperates with all standard Grandmaster Clocks such as Meinberg and Sonifex.
• NTP v4 Support - Support Network Time Protocol version 4 including sNTP. NTP improves time resolution and frequency stability, works with IPv6 and enhances security with key cryptography to protect against malicious time synchronization hacks.
• Multiple Use-Cases - Designed for ProAV, Media Broadcast over IP, 3G/4G/5G, and Industrial Automation.
• Enhanced Determinism - Supports QoS CoS/DSCP to increase determinism.
• Powerful Switch Characteristics - 640Gbps Switch Fabric, 8 Priority Queues, 9216bytes Jumbo Frame, 16K MAC Table Size and 12Mbits Packet Buffer.
• Traffic Management - Supports IEEE 802.3x flow control to manage traffic to prevent network congestion and data loss.
• Redundancy & Ring Protection - Offers RSTP, MSTP, ERPS, LACP for Network Redundancy and Ring Protection.
• IGMP & DHCP - Supports IGMP Snooping v1/v2/v3, up to 512 groups. DHCP Relay Option 82 for policies IP address assignment.
• Configuration and Management - Easily managed from an intuitive Web GUI. Can be configured locally or remotely using a CLI (command line interface). No training is required; units can be quickly and easily configured. Offers SNMP v1/v2c/v3 for network management.

Artel’s Quarra PTP-10GG8POE 10 Gbps Precision Timing Protocol Switch delivers POE+ power on twenty-four (24) 100/1000/2.5G/5G/10GT local Ethernet Ports, and it has eight (8) 10G Uplink SFP Ports.

IP Network Transformation is taking over the media and broadcasting industry.  Contribution Networks, Live Production and video Distribution use cases leveraging Serial Digital Interface (SDI) infrastructure are rapidly migrating to IP-based infrastructure. SMPTE 2022-6, 2110 standards and as Precision Time Protocol (PTP) are essential elements of this transformation.

These Carrier Class Switches are designed for highly accurate nanosecond timing and control.  IEEE 1588 PTPv2 with all clocking modes, plus NTP v4 means Quarra switches are ready for Media Broadcast, ProAV, Defense, and Industrial application and is ruggedized for heavy use.

The device supports all possible clocking modes including Ordinary & Boundary Clocks, Peer to Peer Transparent Clock, End to End Transparent Clock with Hardware Timestamping (The switch adds timestamps to PTP event packets as they enter and exit the Switch).  Super accurate clock synchronization means the unit is well suited for 5G networks, video and industrial applications (including support for the Modbus TCP protocol).  Support for  QoS CoS/DSCP increases determinism.

The PTP-10GG8POE has been tested as fully interoperable with SMPTE 2110, SDVoE (Tx/Rx), AES67 and Dante.  Grandmaster integration testing has been performed with all standard Grandmaster Clocks such as Meinberg and Sonifex.
.

Support for NTP v4 (Network Time Protocol), including sNTP, improves time-resolution and frequency stability, works well with IPv6 and enhances security with key cryptography to protect against malicious time synchronization hacks.

POE Monitoring, Scheduling, PD Alive Check, and PoE Priority are included and LEDS indicate PoE Output Power.  The device also Supports PoE PD Alive Check Function for PoE Device Power Recycle.

The unit boasts powerful switching features including 8 Priority Queues, 9216bytes Jumbo Frame, 16K MAC Table Size and 12Mbits Packet Buffer.  Traffic Management is done with IEEE 802.3x flow control to manage traffic to prevent network congestion and data loss.  And the unit supports IGMP Snooping v1/v2/v3, up to 512 groups and DHCP Relay Option 82 for policies IP address assignment and RSTP, MSTP, ERPS, LACP for Network Redundancy and Ring Protection.

Configuration and Management can be performed with an intuitive Web GUI, can be configured locally or remotely using a CLI (command line interface) and offers SNMP v1/v2c/v3 for network management.

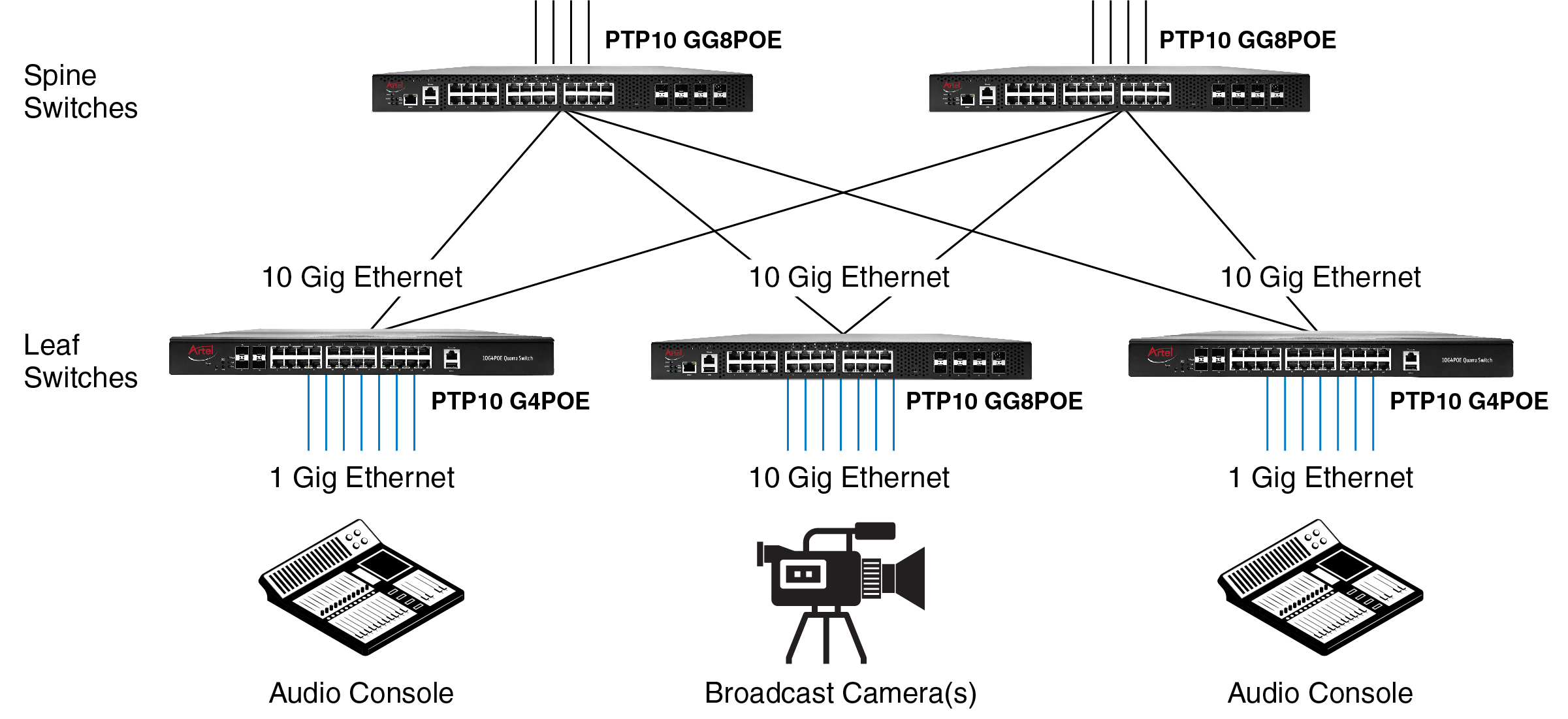

The Quarra PTP-10G4POE is used as a Precision Timing Protocol Leaf Switch, connected locally using 24x 1G POE Ethernet to IP media broadcast gear and aggregating to Spine Switches using 4x 10 Gig SFP Ethernet (Fiber).
