Patton SMART openGear

Overview

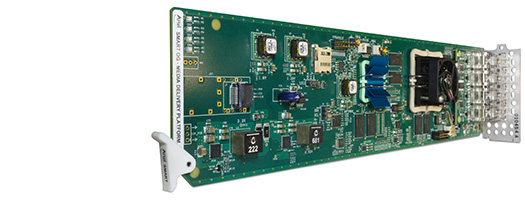

The SMART openGear^® Media Delivery Platform is a four-channel auto-sense 12G, 3G/HD/SD-SDI-over-IP multifunction gateway for use with openGear® frames, thus providing flexibility and operational simplicity.

The Platform offers greater port density and utilization of 1 Gig Ethernet or 10 Gig Ethernet trunks. Four user video ports can be independently bridged across 1Gig Ethernet or 10 Gig Ethernet trunk ports with or without user defined VLAN’s.

Functionality of the platform may be added to or upgraded via software download. The flexibility of function capabilities in the SMART openGear® Platform allows for a seamless transition as the end user’s network evolves.

Four channels of JPEG2000 Video-Over-IP.
JPEG-XS.
Two 1GigE/10 GigE data trunks.
Two SFP+ spares for future use.
Contribution Quality Transport of 2160p*, 1080p, 1080i, 720p and SD-SDI.

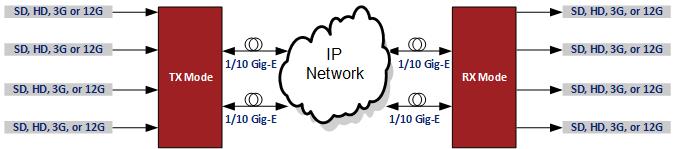

Module can be configured as Video-to-IP Encoder or IP-to-Video Decoder.
Fully transparent carriage of SDI/SDTI including ancillary data and up to 8 audio channel pairs.
VLAN tagging capabilities.
Supports unicast or multicast.

Awards:

Artel Wins 2021 NAB Show Product of the Year Award with SMART openGear^®

Applications

Features
Automatic rate selection.

12Gb/s 2160p 12G-SDI (SMPTE ST2082-10 Mode 1)*
2.970 Gb/s 3G-SDI (ST 424:2012)
1.485 Gb/s HD-SDI (ST 292:2011)
270 Mb/s SD-SDI (ST 259:2008, ITU 656)

SMPTE standards-based encapsulation and forward error correction and VSF recommendation for compressed video.

Video Services Forum Recommendation TR-01:2013

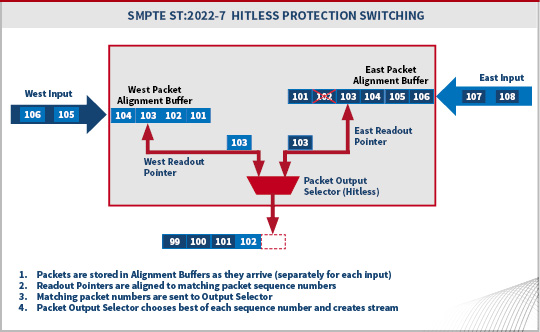

SMPTE ST 2022-7:2013 Seamless Protection Switching
SMPTE ST 2022-2:2007 IP Encapsulation of MPEG2 TS
SMPTE ST 2022-1:2007 FEC recovers lost, damaged, or delayed packets

Flexible user configurable FEC and buffering settings.

Selectable transmitter row and column Forward Error Correction settings
Selectable receiver buffering
Designed to withstand burst outages in excess of 3 ms

Supports unicast or multicast streaming Externally accessible SFP+ transceiver for 10G trunk interfaces.

WDM (1310 nm, 1550 nm)
CWDM ITU G.694.2 (Channels 27-61)
DWDM ITU G.694.1 (Channels 21-60)

Externally accessible SFP transceiver for 1G user interfaces.

Optical budget to 33dB
WDM (1310nm, 1550nm)
CWDM ITU G.694.2 (Channels 27-61)
DWDM ITU G.694.1 (Channels 21-60)

Rear panel HD-BNC monitor Configure, monitor, and manage via Ross DashBoard, SMART Manager* or SNMP* * Future Complete the quote cart for additional information.

Ordering

#	Model #	Description	Availability
1	398-010454-01	SMART openGear, Model SMART OG-J2K, card with JPEG-2000 Software	Pre-Order Available
2	398-010454-02	SMART openGear, Model SMART OG-JXS, card w/ JPEG-XS (TR-07) Software	Pre-Order Available
