Patton SMART ST2022 and J2K

Overview

The SMART Media Delivery Platform™ is an award-winning Software Defined four-channel auto-sense 3G/HD/SD-SDI-over-IP multi-function gateway with an integrated nonblocking Layer 2/3 switch.

The SMART Platform has been designed to attach seamlessly to the IP network without the need for external network elements. Functionality of the platform may be added or upgraded via software download.

The flexibility in function capabilities, along with greater port density, drastically reduces power consumption, reduces size and cost, and allows for a seamless transition as the end user’s network evolves.

Video-Over-IP Transport of 3G/HD/SD-SDI, ASI uncompressed or JPEG2000 compressed

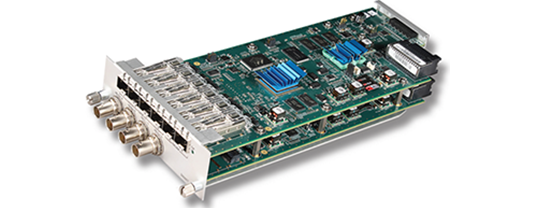

Single double high module can be configured as Video to IP Transmitter or IP to Video Receiver
Fully transparent carriage of 3G/HD/SD-SDI, and ASI including audio and ancillary data
Four GigE data ports bridged to 10G interface
VLAN tagging capabilities

Artel Chosen as a Finalist in the IABM BaM™ Awards 2018 in the Connect category.

Artel Video Systems Receives IABM Design & Innovation Awards 2017 in the Content and Communication Infrastructure category for the SMART Media Delivery Platform.

Fits both the DigiLink DL4360x/DL4000 and InfinityLink IL6000 Chassis.

InfinityLink IL6000 Chassis System

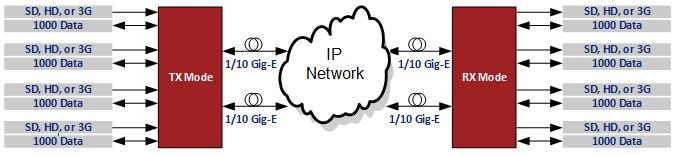

Applications

Features
Automatic rate selection.

2.970 Gb/s 3G-SDI (ST 424:2012)
1.485 Gb/s HD-SDI (ST 292:2011)
270 Mb/s SD-SDI (ST 259:2008, ITU 656)
DVB-ASI to more than 200 Mb/s

SMPTE standards-based encapsulation and forward error correction for uncompressed video.

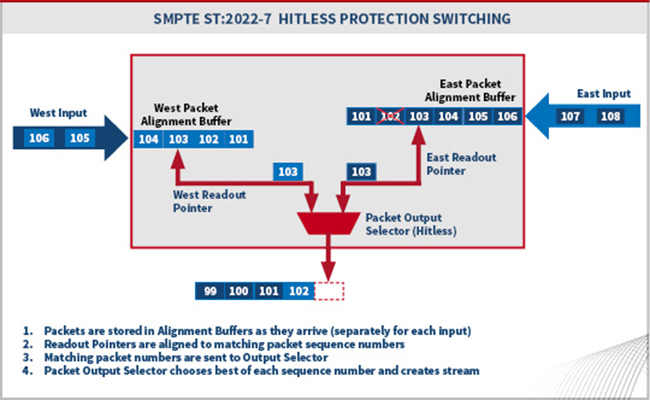

ST 2022-7:2013 Seamless Protection Switching
ST 2022-6:2012 IP Encapsulation of high bit rate media (HBRMT) (SDI)
ST 2022-5:2013 FEC recovers lost, damaged, or delayed packets of HBRMT
ST 2022-2:2007 IP Encapsulation of MPEG2 TS (ASI)
ST 2022-1:2007 FEC recovers lost, damaged or delayed packets

TR-01 based JPEG2000 for compressed video over IP.

Flexible user configurable FEC and buffering settings.

Selectable transmitter row and column Forward Error Correction settings
Selectable receiver buffering
Designed to withstand burst outages in excess of 3 ms

Supports unicast or multicast streaming.

Externally accessible SFP+ transceiver for 10G trunk interfaces.

WDM (1310 nm, 1550 nm)
CWDM ITU G.694.2 (Channels 27-61)
DWDM ITU G.694.1 (Channels 21-60)

Multiple Chassis Options.

Fits the DigiLink DL4360x and DL4000 Chassis
Fits the InfinityLink IL6000 Chassis

Externally accessible SFP transceiver for 1G user interfaces.

Optical budget to 33dB
WDM (1310nm, 1550nm)
CWDM ITU G.694.2 (Channels 27-61)
DWDM ITU G.694.1 (Channels 21-60)

Front panel HD-BNC monitor Configure, monitor, and manage via on-board DigiLink Manager or SNMPv2 * Future Complete the quote cart for additional information.

Ordering

#	Model #	Description	Availability
1	398-008454-00	DigiLink, Model SMART–ST2022, SMART Hardware Module with ST 2022 Software	Pre-Order Available
2	398-008454-01	DigiLink, Model SMART-J2K, SMART Hardware Module with J2K Software	Pre-Order Available
Accessories
3	395-008454-00	DigiLink, Model SW-ST2022, SMART – SW-ST2022 4-CH Software License Key	Pre-Order Available
4	395-008454-01	DigiLink, Model SW-J2K, SMART – SW-J2K 4-CH Software License Key	Pre-Order Available

Compressed Video over IP
Artel SMART ST2022 and J2K SMARTMedia Platform ST2022 and J2K

The SMART Media Delivery Platform is an IABM Design and Innoviation Award Finalist, Standards based, Software Defined, SMPTE ST 2022 and J2K compliant multi-function platform.
