G.703/E1 Miniature Baluns
Connect-IT 460, 460MC & 465 G.703 Balun

Now You Can Solve Mismatches Between Coax and Twisted Pair G.703 Terminations!

--Image: RACKABLE! Rack Mount Available -- The Patton Model 460 series baluns are miniature G.703 baluns that allows 75 ohm coax hardware to communicate with 120 ohm twisted pair equipment. The Model 460 specifically addresses the ONP requirement that European PTTs offer 120 ohm twisted pair terminations to their customers. Some PTTs and private carriers are standardized on 75 ohm coax, or have customers whose CPE has only 75 ohm coax connections. The Model 460 presents a ready solution to this termination mismatch. Supporting E1 data rates to 2.048 Mbps, the Model 460 receives 75 ohm signals and converts them to 120 ohm for transmission over a network or reception by a CPE. The signals output by the Model 460 are scaled to match the pulse shape requirements specified by the CCITT G.703 standard. The Model 460 can perform 120 ohm to 75 ohm signal conversion as well, giving the device a dual role

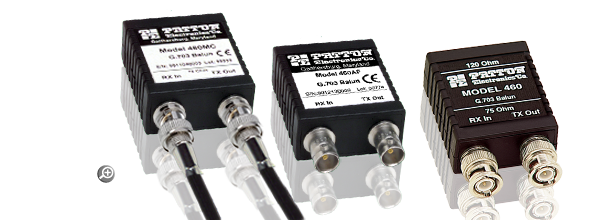

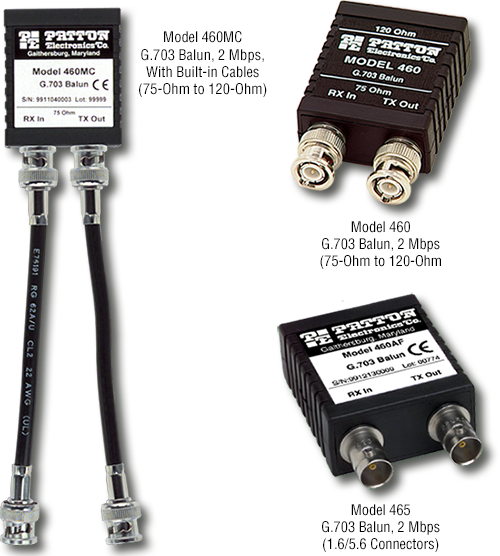

--Image: Models

  • Data Rates to 2.048 Mbps
  • 75 Ohm Dual Coax to 120 Ohm Twisted Pair
  • Bi-Directional Signal Conversion
  • No AC Power or Batteries Needed
  • (Model 460) Male or Female Coax BNC Connectors
  • (Model 460MC) Male or Female Coax BNC Connectors with Built-in Cables
  • (Model 465) Male or Female Coax 1.6/5.6 Connectors
  • Ultra-Miniature Enclosure
  • Made in the USA— This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
# Model # Description Availability
1 11758-01 6" COAX CABLE, RG-62 A/U,75 OHM Male BNC to Male BNC General Availability
2 460F G.703 BALUN 75/120 OHM Female BNC General Availability
3 460F-1-15M G.703 BALUN 75/120 OHM Female BNC, DB15 CABLE Special Order
4 460F-TBP G.703 BALUN 75/120 OHM W/TERM BLOCK General Availability
5 460M G.703 BALUN 75/120 OHM Male BNC General Availability
6 460MC G.703 BALUN 75/120 OHM WITH DUAL BNC 6" COAX CABLES General Availability
7 460MC-8 G.703 BALUN 75/120 OHM WITH DUAL BNC 8" COAX CABLES Special Order
8 460R/16 G.703 BALUN PANEL Special Order
9 465F G.703 BALUN 75/120 OHM,DUAL FEMALE 1.6/5.6 General Availability
10 465MC G.703 BALUN 75/120 OHM, WITH DUAL 1.6/5.6; 6" COAX CABLES General Availability
