G.703/E1 Miniature Baluns
Connect-IT 462 High Speed (8 Mbps) G.703 Balun

Now You Can Solve Mismatches Between Coax and Twisted Pair G.703 Terminations!

--Image: RACKABLE! Rack Mount Available --The Patton Model 462 is a miniature G.703 balun that allows 75-ohm coax hardware to communicate with 100-ohm twisted-pair equipment.

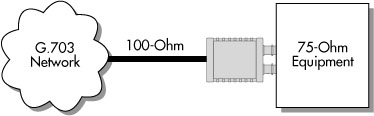

The Model 462 specifically addresses the ONP requirement that European PTTs offer 100-ohm twisted-pair terminations to their customers. Some PTTs and private carriers are standardized on 75-ohm coax, or have customers whose CPE has only 75-ohm coax connections. The Model 462 presents a ready solution to this termination mismatch. Supporting E1 data rates to 8 Mbps, the Model 462 receives 75-ohm signals and converts them to 100-ohm for transmission over a network or reception by a CPE (see diagram below). The signals output by the Model 462 are scaled to match the pulse shape requirements specified by the CCITT G.703 standard.


The Model 462 can perform 100-ohm to 75-ohm signal conversion as well, giving the device a dual role.

  • Data Rates to 8 Mbps
  • 75-hm Dual-Coax to 100-Ohm Twisted-Pair
  • Bi-Directional Signal Conversion
  • No AC Power or Batteries Needed
  • Male or Female Coax BNC Connectors Available
  • Ultra-Miniature Enclosure
  • Made in the USAufacturing process delivers high-quality networking solutions with reliability you can trust.
# Model # Description Availability
1 462F BALUN,G.703, 8Mbps,75/100 OHM Special Order
2 462M BALUN,G.703, 8Mbps,75/100 OHM Special Order
