Products  >  Model 2017RC View Printable
This legacy product is not recommended for new installations. There is no replacement for these products.

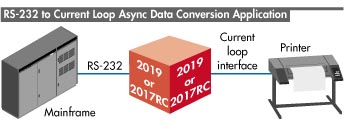

The Model 2017RC is an async device that operates bi-directionally in full- or half-duplex modes.The Model 2017RC occupies one slot of the 1000R/16 front-load rack. It has dual independent converters that enable two async DTE RS-232 devices to communicate with two 20-mA current loop devices over two twisted pairs. It can be configured for active or passive transmitters.

Features
  • Data rates up to 115.2 kbps
  • Two RJ-45 connectors for RS-232 devices and two RJ-45 or RJ-11 connectors for the current loop ports
  • UL and CSA approvals
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.

Ordering
# Model # Description Availability
1 2017AF RS-232/CURRENT LOOP CONVERTER End of Life-Notice
2 2017AF-RJ11 RS-232/CURRENT LOOP CONVERTER End of Life-Notice
3 2017AF-RJ11I RS-232/CURRENT LOOP CONVERTER End of Life-Notice
4 2017AF-RJ45 RS-232/CURRENT LOOP CONVERTER End of Life-Notice
5 2017AF-RJ45I RS-232/CUR LOOP CONV. 220 VOLT End of Life-Notice
6 2017AM RS-232/CURRENT LOOP CONVERTER 110V End of Life-Notice
7 2017AM-220 RS-232/CURRENT LOOP CONVERTER End of Life-Notice
8 2017AM-RJ11 RS-232/CURRENT LOOP CONVERTER 110V End of Life-Notice
9 2017AM-RJ11I RS-232/CUR LOOP CONV, 220 VOLT End of Life-Notice
10 2017AM-RJ45 RS-232/CURRENT LOOP CONVERTER 110V End of Life-Notice
11 2017AM-RJ45I RS-232/CUR LOOP CONV, 220 VOLT End of Life-Notice
12 2017P60F RS-232/CURRENT LOOP ADAPT. End of Life-Notice
13 2017P60FRJ45 RS-232 TO CURRENT LOOP CNVRTR End of Life-Notice
14 2017P60M RS-232/CURRENT LOOP ADAPT. End of Life-Notice
15 2017PF RS-232/CURRENT LOOP ADAPT. End of Life-Notice
16 2017PF-RJ11 RS-232/CURRENT LOOP ADAPT. End of Life-Notice
17 2017PF-RJ45 RS-232 TO 20MA CURRENT LOOP End of Life-Notice
18 2017PM RS-232 TO 20MA CURRENT LOOP End of Life-Notice
19 2017PM-RJ11 RS-232 TO 20MA CURRENT LOOP End of Life-Notice
20 2017PM-RJ45 RS-232 TO 20MA CURRENT LOOP End of Life-Notice
21 2017RC11 DUAL RS232 TO 20MA,CURRENT LOOP RACK CARD: RJ11 Contact us for Availability
22 2017RC45 DUAL RS232 TO 20MA,CURRENT LOOP RACK CARD: RJ45 Contact us for Availability
