Overview
When you have a remote location that needs connection to your LAN, think about the Patton model 2156 LAN extender. With a simple set of plug-and-play extenders, you can make that connection easily using the existing twisted-pair copper infrastructure already installed worldwide.
The ability of the unit to operate transparently with higher level protocols, like VLAN tagging, enables the 2156 to fit into almost any location where cost-effective LAN extension is needed. The 2156 also provides users with easy-to-read LEDs that enable them to verify that everything is working properly. If there ever is a problem, the built-in test switch helps users quickly figure out which side of the extension is causing the problem.
The 2156 installs quickly—there is no configuration needed. All these features—and the fact they make the most out of the existing copper infrastructure—make the 2156 LAN extenders the best choice for long distance Ethernet extension!
Take your network connections faster and farther over existing voice-grade wire with Patton CopperLink™ Ethernet Extenders!

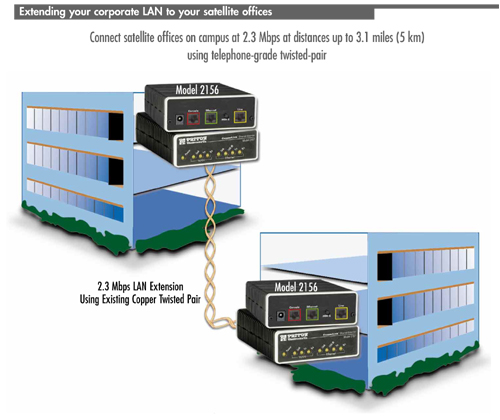

Applications
When you have a remote location that needs connection to your LAN, think about the Patton model 2156 LAN extender. With a simple set of plug-and-play extenders, you can make that connection easily using the existing twisted-pair copper infrastructure already installed worldwide.The ability of the unit to operate transparently with higher level protocols, like VLAN tagging, enables the 2156 to fit into almost any location where cost-effective LAN extension is needed. The 2156 also provides users with easy-to-read LEDs that enable them to verify that everything is working properly. If there ever is a problem, the built-in test switch helps users quickly figure out which side of the extension is causing the problem.
The 2156 installs quickly—there is no configuration needed. All these features—and the fact they make the most out of the existing copper infrastructure—make the 2156 LAN extenders the best choice for long distance Ethernet extension!
|
Model 2156 Extension Distances
|
||||||||||
|
Line Rate
|
No Noise
|
|||||||||
|
26g (0.4 mm)
|
24g (0.5 mm)
|
22g (0.6 mm)
|
20g (0.8 mm)
|
19g (0.9 mm)
|
||||||
|
kbps
|
miles
|
km
|
miles
|
km
|
miles
|
km
|
miles
|
km
|
miles
|
km
|
|
200
|
4.4
|
7.2
|
5.7
|
9.4
|
8.0
|
13.1
|
10.3
|
16.8
|
12.1
|
19.7
|
|
392
|
4.0
|
6.6
|
5.4
|
8.8
|
7.5
|
12.3
|
8.7
|
15.8
|
10.8
|
17.5
|
|
520
|
3.8
|
6.2
|
5.1
|
8.3
|
7.1
|
11.6
|
9.2
|
14.9
|
9.7
|
15.8
|
|
776
|
3.5
|
5.6
|
4.6
|
7.5
|
6.0
|
9.8
|
7.8
|
12.7
|
8.8
|
14.3
|
|
1160
|
3.0
|
4.9
|
4.0
|
6.4
|
5.2
|
8.4
|
6.7
|
11.0
|
7.5
|
12.3
|
|
1544
|
2.8
|
4.6
|
3.7
|
6.1
|
4.9
|
7.9
|
6.4
|
10.3
|
6.7
|
11.0
|
|
2056
|
2.5
|
4.0
|
3.3
|
5.3
|
4.2
|
6.9
|
5.6
|
9.0
|
5.9
|
9.6
|
|
2312
|
2.3
|
3.8
|
3.1
|
5.0
|
4.0
|
6.6
|
5.3
|
8.6
|
5.6
|
9.1
|
|
CopperLink™ Copper Ethernet Extenders |
|
# of
Ethernet Ports |
# of wire pairs
|
Max. Speed (Mbps)
|
Distance at Max. Speed
|
CopperLink™
Model |
|
2
|
1
|
N/A
|
2,625 ft/0.8 km
|
|
|
2
|
1
|
100
|
500 ft/0.15 km
|
|
|
4
|
4
|
45.6
|
4,600 ft/1.4 km
|
|
|
4
|
2
|
22.8
|
4,600 ft/1.4 km
|
|
|
2
|
1
|
15
|
2,953 ft/0.9 km
|
|
|
4
|
1
|
11.4
|
4,593 ft/1.4 km
|
|
|
2
|
1
|
10
|
4,265 ft/1.3 km
|
|
|
1
|
1
|
4.6
|
10,827 ft/3.3 km
|
|
|
1
|
1
|
2.3
|
16,404 ft/5.0 km
|
Applications
Features
- High Speed Extension—With the Model 2156 you gets speeds up to 2.3 Mbps
- Auto-rate Selection—Just plug the units in, and they will determine the maximum rate possible for the connection
- CopperLink 2-Wire Connection—Easy 2-wire CopperLink connection via built-in RJ-11 port
- Auto-sensing Ethernet—Auto 10 or 100Base-T and full or half-duplex Ethernet operation
- Transparent LAN Bridging—Passes higher layer protocols and supports 802.1Q VLAN tagging
- Automatic Learning, Aging, and Filtering—Only allows packets with addresses outside the LAN to be forwarded
- Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
