VDSL2/ADSL2+ Router | Supports bridging, static and dynamic routing, IPv4/IPv6, ACLs, TR-069 and a host of firewall/security features

Overview
Patton’s VDSL2 solutions allow service providers and enterprises to leverage their existing twisted pair for enabling the next generation high speed services and applications. Providing speeds of over 100 Mbps, VDSL2 is the perfect technology for the delivery of high quality triple-play services (IPTV, VoIP, WWW) or for providing high speed data backhaul throughout a campus.

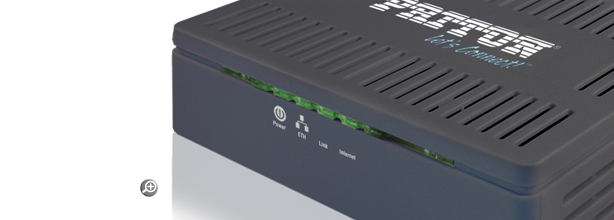

The OS2201 is a small but feature-rich single-port bridge/router that is used for accessing the Internet or private network via a VDSL2/ADSL2+ connection. This connection is delivered by your service provider or, in campus or Multi-Tenant Unit applications, yourprivately owned DSLAM.

The OS2201 is fully compliant with VDSL2 standards—including G.Vector—and supports VDSL2 profiles from 8a to 30a. Because we are standards based, you can count on reliably connecting to Patton’s VDSL2 DSLAM or to a third-party device or service.

This modem may be small, but it packs a punch when it comes to features. The OS2201 supports bridging, static and dynamic routing, IPv4/IPv6, ACLs, TR-069 and a host of firewall/security features that help ensure a safer and more secure Internet experience.

Applications

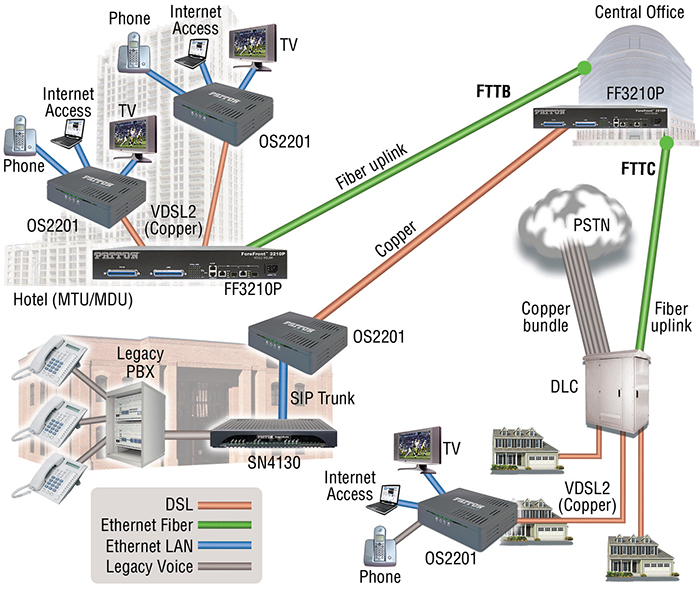

OnSite™ 2201 application diagram

Features

Supports 100-Mbps Asymmetrical Line Rate—Provides near fiber performance for bandwidth intensive applications.
Operates Over Twisted Pair—Reduces the cost and hassles of new installations. Uses installed voice-grade twisted pairs to eliminate the expense of installing network or fiber cable.
Flexible Deployment —Supports full ADSL2/ADSL2+ or ADSL+ fallback.
Firewall —Surf the Internet safely and securely.
Full VDSL2 Profile Support —Support for 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a.
TR-069 Compliant —Eases management and can reduce hotline costs significantly.

Ordering

#	Model #	Description	Availability
1	OS2201/1ETH/A/E-EU	Patton OnSite VDSL2/ADSL2+ Single Port Router; 1 x 10/100BaseTX; ADSL Annex A,M,L; External 100-240 VAC; EU Plug	General Availability
2	OS2201/1ETH/A/E-US	Patton OnSite VDSL2/ADSL2+ Single Port Router; 1 x 10/100BaseTX; ADSL Annex A,M,L; External 100-240 VAC; US Plug	General Availability
3	OS2201/1ETH/B/E-EU	Patton OnSite VDSL2/ADSL2+ Single Port Router; 1 x 10/100BaseTX; ADSL Annex B,J; External 100-240 VAC; EU Plug	General Availability
4	OS2201/1ETH/B/E-US	Patton OnSite VDSL2/ADSL2+ Single Port Router; 1 x 10/100BaseTX; ADSL Annex B,J; External 100-240 VAC; US Plug	General Availability
