T1/E1/Sync. Serial Converters & Bridges OnSite 2701A T1/E1 to Ethernet Bridge (NTU) | Converts E1 or Fractional E1 to bridged to Ethernet

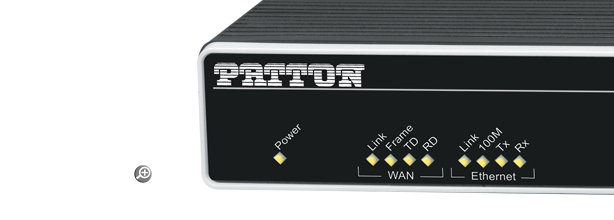

The Patton Model 2701A/I both terminates T1/E1 and Fractional T1/E1 services and provides the conversion of T1/E1 to 10/100BaseTX Ethernet.
Overview The OnSite™ Model 2701A/I T1/E1 to Ethernet Bridge is the ideal solution for connecting any small to medium enterprise or remote office to an IP/Internet network using a standard T1/E1 interface.
The Model 2701A/I terminates T1 & E1 services for all n x kbps to 2.048 Mbps rates for simple connection to a router. Flexible clocking modes, AMI/HDB3 & AMI/B8ZS coding, V.52/V.54 diagnostics and more make the 2701A/I on of the most versatile NTU’s available.
The Model 2701A/I comes with an auto-sensing full-duplex 10/100Base-T Ethernet port, cross-over switch, and internal power supply. The Model 2701A/I is equipped with an integrated T1/E1 CSU/DSU for connection to full and fractional T1/E1 services.
AC or DC power options make installing the Model 2701 into your network infrastructure a snap.

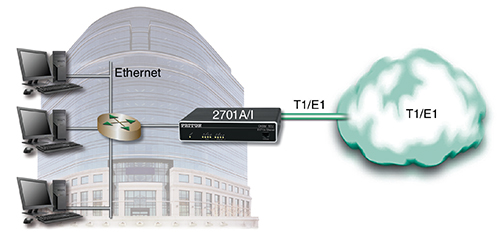

Applications
Features
Connect Legacy T1/E1 to Ethernet—Simple conversion of E1 or Fractional E1 to bridged to Ethernet. No configuration required.
Supports 75 or 120-ohm E1 Lines—Both BNC and RJ-48C connectors are provided so there is no requirement for external conversions such as a balun
Eliminate Routers—Bridge Ethernet across the WAN using industry standard PPP/BCP
10/100 Ethernet with MDI-X—Built-In communication crossover switch eliminates the confusion of straight through or cross over Ethernet cables.
Power it Anywhere—Universal input AC (100-240V) and DC
(-48V) power supply options
Designed and Manufactured in the USA—Top notch quality and reliability
Ordering
#
Model #
Description
Availability
1
2701A/I/E48
T1/E1 to Ethernet NTU, RJ45/BNC WAN Interface, External 48VDC power supply
General Availability
2
2701A/I/EUI
T1/E1 to Ethernet NTU, RJ45/BNC WAN Interface, External 100-240VAC power supply
General Availability
Accessories
Additional Charge:
Power Plugs & Cords
12000186 (Qty: 1)
CON,POWER,PLUG,MEGA MJSW, US
12000187 (Qty: 1)
CON,POWER,PLUG,MEGA MJSW,EU
12000188 (Qty: 1)
CON,POWER,PLUG,MEGA MJSW,UK
12000189 (Qty: 1)
CON,POWER,PLUG,MEGA MJSW,AUS
Connect Legacy T1/E1 to Ethernet—Simple conversion of E1 or Fractional E1 to bridged to Ethernet. No configuration required.
Supports 75 or 120-ohm E1 Lines—Both BNC and RJ-48C connectors are provided so there is no requirement for external conversions such as a balun
Eliminate Routers—Bridge Ethernet across the WAN using industry standard PPP/BCP
10/100 Ethernet with MDI-X—Built-In communication crossover switch eliminates the confusion of straight through or cross over Ethernet cables.
Power it Anywhere—Universal input AC (100-240V) and DC
(-48V) power supply options
Designed and Manufactured in the USA—Top notch quality and reliability
The OnSite™ Model 2701A/I T1/E1 to Ethernet Bridge is the ideal solution for connecting any small to medium enterprise or remote office to an IP/Internet network using a standard T1/E1 interface.
The Model 2701A/I terminates T1 & E1 services for all n x kbps to 2.048 Mbps rates for simple connection to a router. Flexible clocking modes, AMI/HDB3 & AMI/B8ZS coding, V.52/V.54 diagnostics and more make the 2701A/I on of the most versatile NTU’s available.
The Model 2701A/I comes with an auto-sensing full-duplex 10/100Base-T Ethernet port, cross-over switch, and internal power supply. The Model 2701A/I is equipped with an integrated T1/E1 CSU/DSU for connection to full and fractional T1/E1 services.
AC or DC power options make installing the Model 2701 into your network infrastructure a snap.
