Long Range Ethernet Extenders

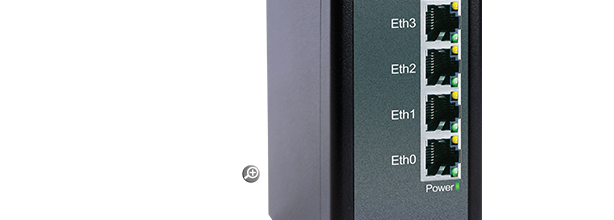

CopperLink CL1314R Industrial Grade, Long Range Ethernet Extender | up to 6 miles (10 km) over copper



CopperLink 1300R Series Ruggedized Long-Range Ethernet Extenders use single-twisted-pair cabling to interconnect remote LANs or network-enabled devices up to 6 miles (10 km) apart. Realize the best-possible speed/distance combination in the industry!
Overview
Cloud Enabled Ethernet extension doesn’t have to be expensive or difficult. The CL1300R Ruggedized Ethernet Extenders open the door to cost-effective Ethernet extension that is easy to set up. Featuring plug-and-play installation, the CL1300R CopperLink Ethernet Extenders leverage existing copper twisted-pair infrastructure to interconnect Ethernet devices and networks at high speeds over long distances.

Patton’s CopperLink Ethernet Extenders ensure hassle-free set-up and operation, while achieving the highest possible line rate for the required distance and electromagnetic environment. Users can either let the modems select the best achievable rate or they can “hard-set” the desired line rate via DIP switches, console Telnet, or HTTP.

The CL1314R and CL1324R comes with a built-in four-port, auto-sensing, 10/100Base-TX Ethernet switch that provides automatic medium-dependent interface crossover capability (auto-MDIX). That means you can use cross-over or straight-through cables (whichever is handy) to connect up to four Ethernet devices. The auto-MDIX feature detects the polarity of the cabling on each port, and automatically configures the signaling to match. Absolutely no user-configuration is required.

The CL1300R transparently passes all higher-layer protocols—including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes. All common industrial protocols are also transparently supported, including MODBUS/TCP and PROFINET IO.

Set-up is easy! Simply connect up to four LAN devices to the Ethernet switch, plug the copper twisted-pair into each extender, and apply power! For simple, cost-effective and efficient Ethernet extension, Patton's CopperLink Ethernet Extenders are the ideal solution!

Distance on 24 AWG (0.5 mm) per wire pair
Line Rate
Feet
Miles
km
192
33972
6.4
10.4
512
33188
6.3
10.1
1024K
29453
5.6
9.0
2048K
23332
4.4
7.1
4096K
16093
3.0
4.9
5696K
12098
1.8
3.7
8192K
9710
1.70
3.0
15296K
3844
0.7
1.2


Applications
When interconnecting sites on a corporate campus, buildings and network devices often lie beyond reach of a standard Ethernet segment. Now, you can use existing copper network infrastructure to connect remote LANs across longer distances and at higher speeds than previously thought possible.

Patton’s CopperLink long range Ethernet Extender is the ideal solution for simple, cost-effective, high-speed campus LAN extension. Ethernet plug-‘n’-play operation gets your network up-and-running in seconds. Providing auto-sensing full/half duplex 10/100Base-T Ethernet ports—plus  an integrated crossover switch for hassle-free system setup—the value of this Ethernet extender is unsurpassed.

  • Plug-and-Play—Just unpack a pair of extenders and plug in the cables. Apply power and your connection is up and running. It just doesn’t get any easier!
  • High Speed/Long Reach—The CL1300R series Ethernet extenders provide the industry’s ultimate combination of speed and distance!

    •

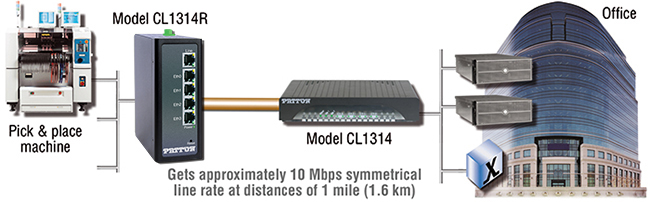

    Extend 10/100Base-TX Ethernet to reach
    beyond its natural limitations
          CopperLink™ 2174 application diagram


    CL1314MDE MultiDrop Ethernet

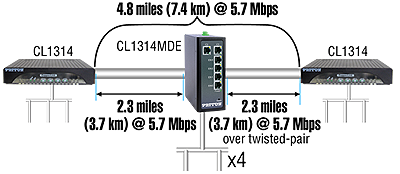

    CopperLink™ 1314MDE application diagram

    For more info, visit the CL1314MDE MultiDrop Ethernet Extender product page


    Features
    • High Speed Extension—Realize symmetrical line rates of over 15Mbps (CL1314R) and 30 Mbps (CL1324R)
    • Multi-rate Selection—Just plug the units in and select the ideal user-configurable rate for your application.
    • Ethernet over 2 or 4 wires—Easy 2 (CL1314R) or 4 wire (CL1324R) (1 to 2 twisted pairs) connection via an RJ45 port. The additional pair offers additional bandwidth and failover.
    • Ruggedized— Operating temperature of -40 to 85°C and optional conformal coating to protect against condensing humidity and corrosion.
    • Hardened—Aluminum enclosure designed to meet IP40 specifications; DIN rail mount included
    • Up to two Ethernet ports—The CL1311R has one RJ-45, 10/100Base-T Ethernet port. The CL1314R/CL1324R has four RJ-45, 10/100Base-T Ethernet ports.
    • Transparent LAN Bridging—Transparently pass higher-layer protocols with support for 802.1Q VLAN tagging.
    • Automatic Learning, Aging, and Filtering—Keeps local traffic local, ensuring efficient utilization of the long-range link.
    • Made in the USA—This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.

    Ordering
    # Model # Description Availability
    1 CL1311R/L/CC/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); Conformal Coated; 1 x10/100; -40 to 85C; 100-240VAC General Availability

     Accessories

    2 CL1311R/L/DC CopperLink Ruggedized Long Range Ethernet Extender (Local); 1 pair; 1 x10/100; -40 to 85C; internal internal +12 to +48VDC General Availability

     Accessories

    3 CL1311R/L/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); 1 x10/100; -40 to 85C; 100-240VAC General Availability

     Accessories

    4 CL1311R/R/CC/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); Conformal Coated; 1 x10/100; -40 to 85C; 100-240VAC General Availability

     Accessories

    5 CL1311R/R/DC CopperLink Ruggedized Long Range Ethernet Extender (Remote); 1 pair; 1 x10/100; -40 to 85C; internal internal +12 to +48VDC General Availability

     Accessories

    6 CL1311R/R/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); 1 x10/100; -40 to 85C; 100-240VAC General Availability

     Accessories

    7 CL1314R/L/CC/DC Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); Conformal Coated; 4 x10/100; -40 to 85C; 12-48VDC General Availability

     Accessories

    8 CL1314R/L/CC/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); Conformal Coated; 4 x10/100; -40 to 85C; 100-240VAC General Availability

     Accessories

    9 CL1314R/L/DC CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Local); 1 pair; 4 x10/100; -40 to 85C; internal +12 to +48VDC General Availability

     Accessories

    10 CL1314R/L/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Local); 4 x10/100; -40 to 85C; 100-240VAC General Availability

     Accessories

    11 CL1314R/R/CC/DC Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); Conformal Coated; 4 x10/100; -40 to 85C; 12-48VDC General Availability

     Accessories

    12 CL1314R/R/CC/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); Conformal Coated; 4 x10/100; -40 to 85C; 100-240VAC General Availability

     Accessories

    13 CL1314R/R/DC CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Remote); 1 pair; 4 x10/100; -40 to 85C; internal +12 to +48VDC General Availability

     Accessories

    14 CL1314R/R/EUI Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); 4 x10/100; -40 to 85C; 100-240VAC General Availability

     Accessories

    15 CL1324R/L/DC CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Local); 2 pair; 4 x10/100; -40 to 85C; ; internal +12 to +48VDC General Availability

     Accessories

    16 CL1324R/L/EUI CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Local); 2 pair; 4 x10/100; -40 to 85C; external 100-240VAC General Availability

     Accessories

    17 CL1324R/R/DC CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Remote); 2 pair; 4 x10/100; -40 to 85C; internal +12 to +48VDC General Availability

     Accessories

    18 CL1324R/R/EUI CopperLink Ruggedized Long Range Ethernet Extender (Pre-Config Remote); 2 pair; 4 x10/100; -40 to 85C; external 100-240VAC General Availability

     Accessories
