Industrial Ethernet and RS-232 Extender | CopperLink CL2320R

Long Range Ethernet Extenders
CopperLink CL2320R Long Range Ethernet and RS-232 Extender | up to 4 miles (6.5 km) over copper



This Ruggedized Extender offers Ethernet and Async. RS-232 extension over a single copper pair. Supporting point-to-point, multi-point, daisy-chain, or ring topologies, delivers low-latency links for industrial control, metering and signaling applications.


Overview

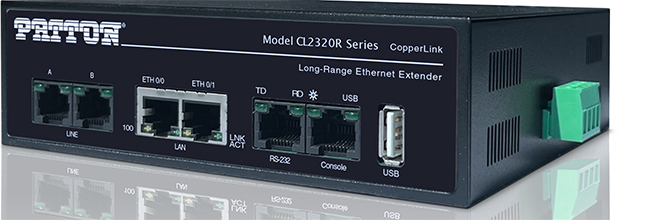

Patton’s rugged and reliable CopperLink 2320R is an IP-40 rated Industrial Extender for Ethernet and RS-232 that delivers, speed, and distance for industrial networking. Supporting topologies including point-to-point, multi-point, daisy-chain, and ring the solution delivers ultimate flexibility for utilization of copper cable plant.

The product has two composite “line interfaces” on each unit. Those line interfaces can support pairing (local and remote) extensions in point-to-point extensions. They can also be used as north, south, east or west facing interfaces for daisy-chain, and ring networking.

The unit extends Ethernet and RS-232 to remote devices LANs using current or legacy copper infrastructure. It supports distances of up to 4 miles (6.5 km) for each span. The number of remote sites and total distance is almost unlimited based on the bridging and repeating capabilities.

An embedded Serial-to IP-device server/converter transports RS-232 over UDP and TCP plus Telnet, Raw-IP, Message/Bloc, HNZ and MODBUS adaptation suitable for industrial data acquisition and control with master/slave multipoint modem emulation.

QoS Traffic Prioritization such as Rate Limiting and Priority Queuing enable prioritization of traffic types, such as time sensitive signaling or video streams. A store-and-forward engine performs optimal packet forwarding, delivering the lowest latency for end-to-end transfers. . Its Ethernet ports have automatic MDI/MDIX and 10/100 Mbps speed detection.

Network access security is delivered using various standards for authentication and access control including STP, RSTP Secured Ring, 802.1X, and Radius. Configuration and management is performed using a local USB port (Host/Device), or via SSH, HTTP, HTTPS, SNMP, FTP and intuitive Web User Interface.

The unit is packaged in a heavy-duty metal enclosure for durability and offers IP-40 level protection and operating temperatures from -20 to +70°C. It comes with DIN rail mounting kit for panel builds and can also be installed in a 19” rack.

For business-critical networking, Patton’s managed CopperLink series offers optimum versatility and reliability at an affordable price.


Applications

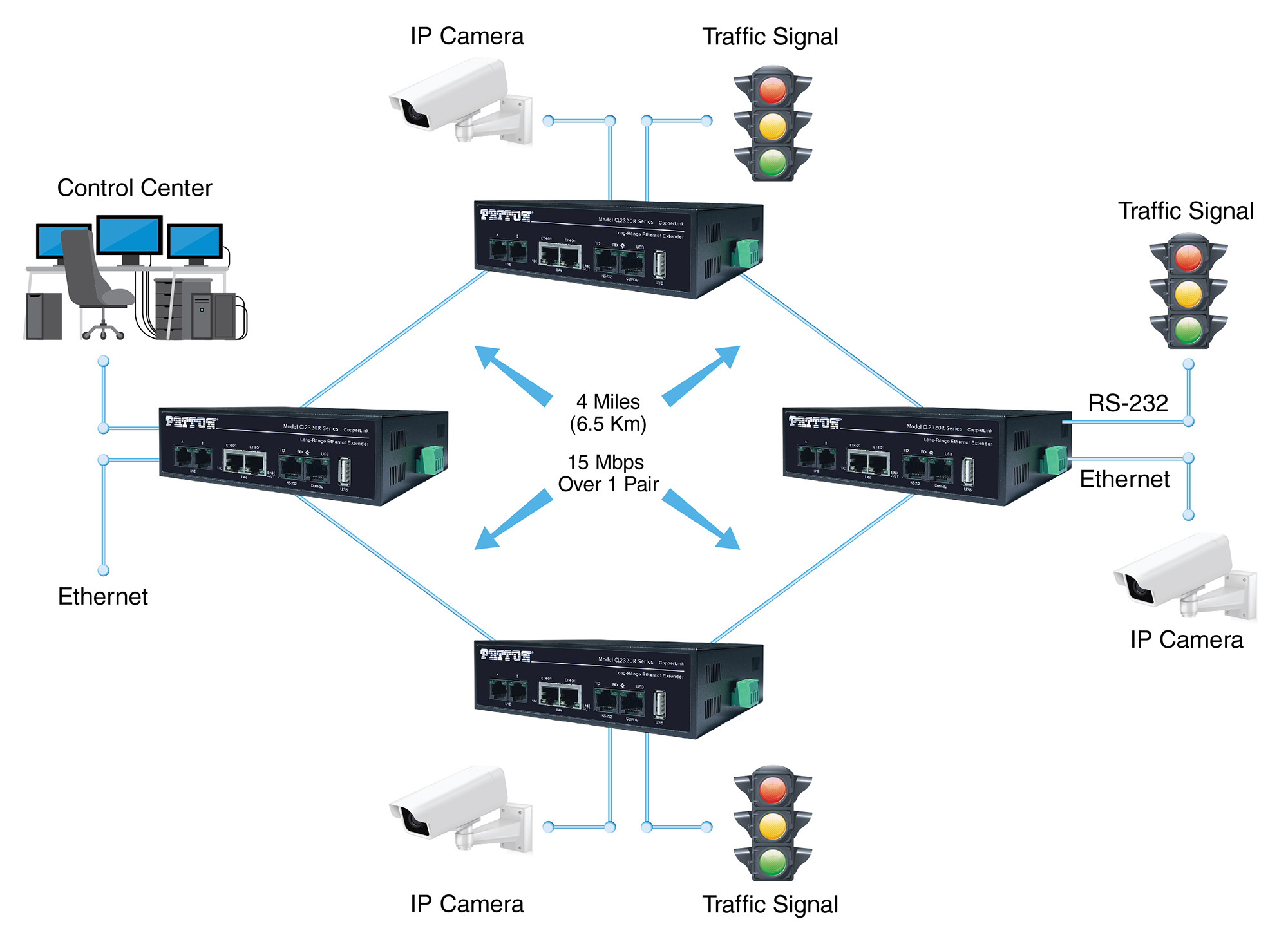

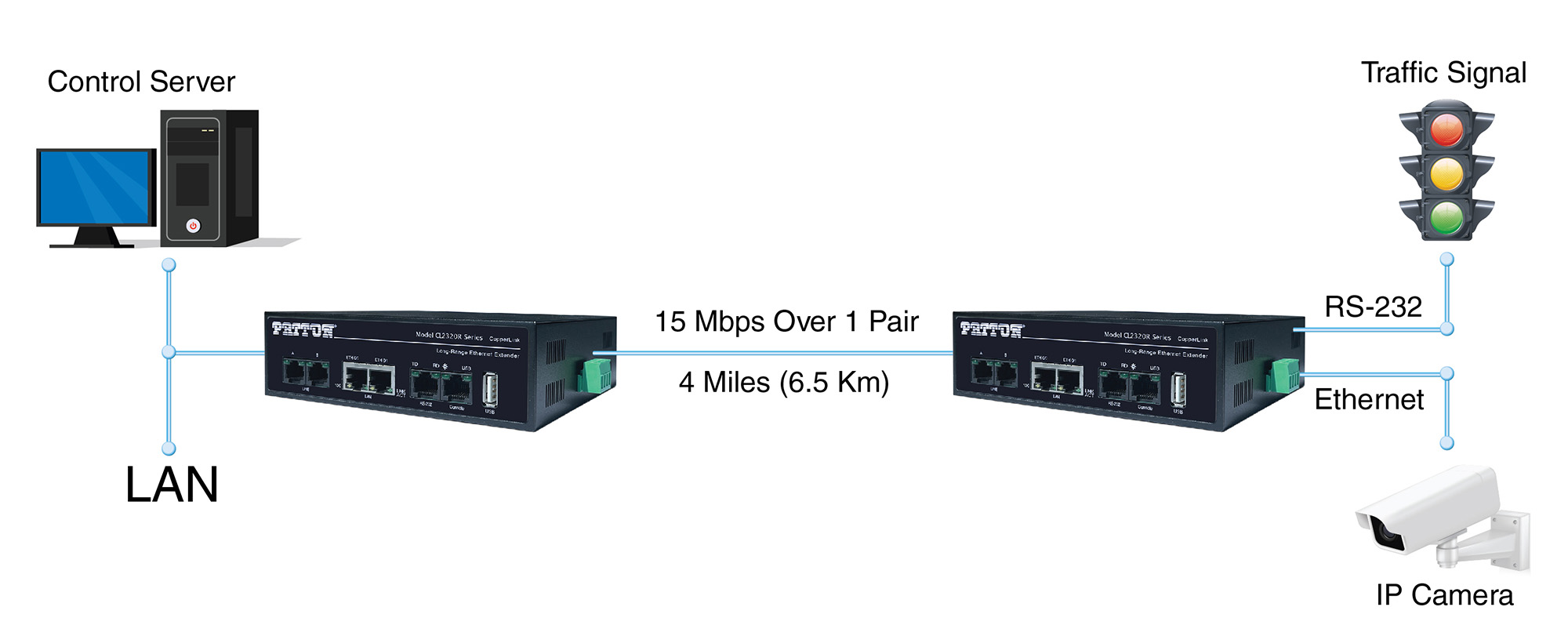

The CL2320 Series Ethernet Extenders deliver point-to-point, multi-drop (bus) or ring topologies.  With Northbound and Southbound composite (extension) interfaces, the device allows Ethernet and RS-232 to be dropped at remote locations at distance over copper twisted pair.   A built-in Device Server delivers serial RS-232 extension and/or connectivity to IP.






Features
  • Ethernet and Serial - Ethernet and RS232 Extension and Distribution. Two 10/100 Ethernet Ports and One RS232 Async Port.
  • High Speed Transport - Achieves 15Mbps over 1 twisted pair. Symmetrical rates are automatically adapted to the copper line conditions (noise environment, wire gauge/type and length).
  • All Topologies - Supports point-to-point, multi-point, daisy-chain, and ring topologies.
  • Long Range - Supports distances of 4 miles (6.5 km) for each span. The number of remote sites and total distance is almost unlimited based on the bridging and repeating capabilities.
  • Serial Device Server - It has an asynchronous serial to IP converter function (encapsulation) over UDP and TCP plus Telnet, Raw-IP, Message/Bloc, HNZ and MODBUS adaptation suitable for industrial data acquisition and control. Serial Master/Slave multipoint modem emulation.
  • QoS Traffic Prioritization - Rate Limiting and Priority Queuing functions enable prioritization of traffic types, such as time sensitive signaling or video streams. IP/DSCP, VLAN 802.1Q, Priority Queuing.
  • Packet Forwarding - A store and forward engine performs optimal packet forwarding, delivering the lowest latency for end-to-end transfer.
  • Highly Secure - Network access is secured by various standards for authentication and access control. STP, RSTP Secured Ring, 802.1X, and Radius.
  • Management - via local USB port (Host/Device), via SSH, HTTP, HTTPS, SNMP, FTP and intuitive Web User Interface.
  • Ruggedized - Built into sturdy metal enclosure offering operating temperatures from -20 to +70°C, without fans, so it works in industrial environments with hot, cold, or humid conditions.
  • Flexible Mounting - It comes with DIN rail mounting kit for panel builds and can also be installed in a 19” rack.

Ordering
# Model # Description Availability
1 CL2322R/DC CopperLink Long Range Ethernet+RS-232 Extender. 2x 10/100 Ethernet, 2x RS-232 (1 Device Server, One Console), 2x 1-Pair (2-Wire) line interfaces for Local, Remote, Repeater or Multi-Point installation. 9-55 VDC Power. Pre-Order Available
2 CL2322R/EUI CopperLink Long Range Ethernet+RS-232 Extender.  2x 10/100 Ethernet, 2x RS-232 (1 Device Server, One Console), 2x 1-Pair (2-Wire) line interfaces for Local, Remote, Repeater or Multi-Point installation.  110-230 External AC Power. Pre-Order Available

 Accessories

3 CL2322R/SP/DC CopperLink Long Range Ethernet+RS-232 Extender.  2x 10/100 Ethernet, 2x RS-232 (1 Device Server, One Console), 2x 1-Pair (2-Wire) line interfaces for Local, Remote, Repeater or Multi-Point installation.  Primary Surge Protection included.  9-55 VDC Power. Pre-Order Available
4 CL2322R/SP/EUI CopperLink Long Range Ethernet+RS-232 Extender.  2x 10/100 Ethernet, 2x RS-232 (1 Device Server, One Console), 2x 1-Pair (2-Wire) line interfaces for Local, Remote, Repeater or Multi-Point installation.  Primary Surge Protection included.  110-230 External AC Power. Pre-Order Available

 Accessories
