Long Range Ethernet Extenders

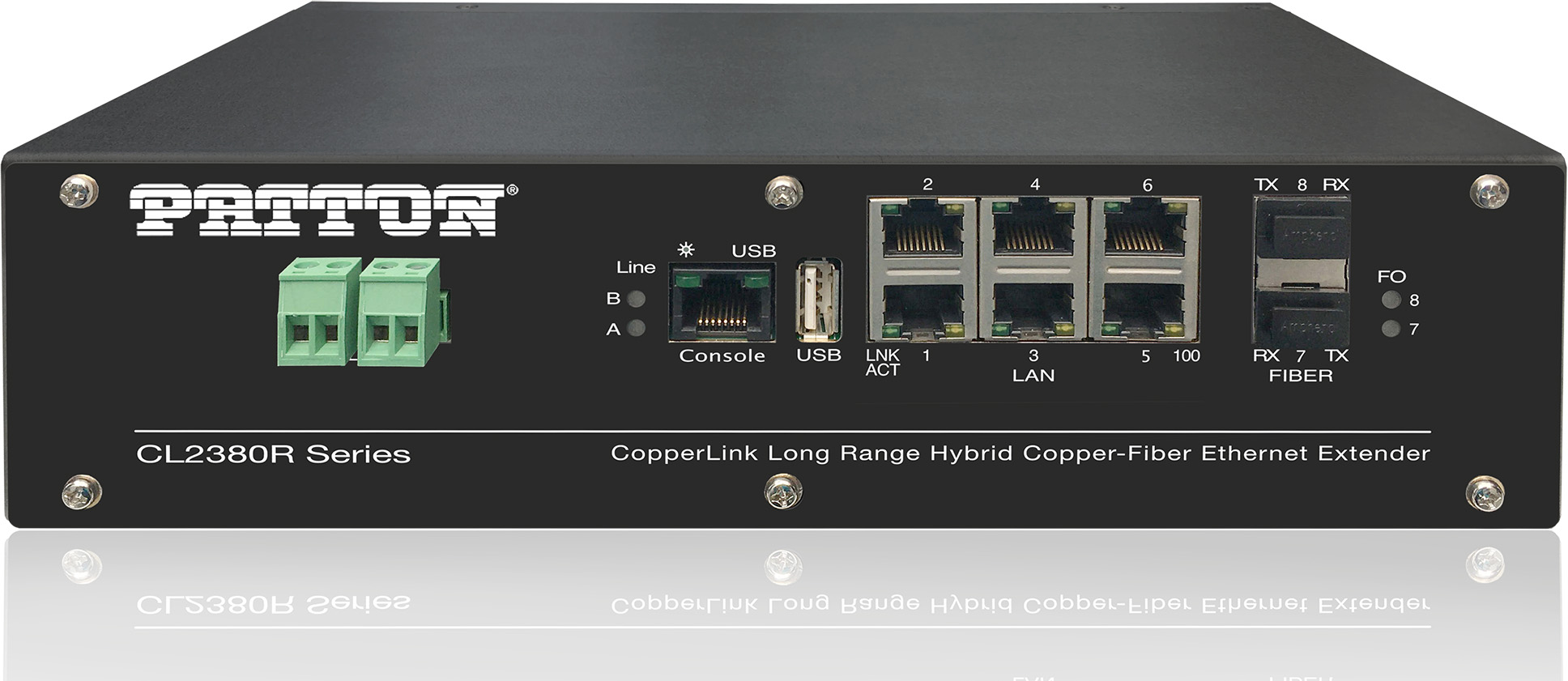

CopperLink  CL2380R Long Range Hybrid Copper-Fiber Ethernet Extender



This Ruggedized Extender offers Ethernet extension over Fiber and/or Copper. Providing secure routing and transport of Ethernet and Digital Controls, this unit is ideal for Security, Surveillance, Remote Control, and Monitoring applications.


Overview
The Patton CL2380R Series is an Ethernet Extender, Switch and Router that delivers high speed connectivity for Ethernet-over-Copper, Fiber or both. Offering 8 Ethernet Ports including 6 LAN and 2 SFP WAN ports together with Northbound and Southbound facing Long-Range Extension ports, the CL2380R is ideal for integrating local copper-based industrial ethernet to regional fiber backbones.

The unit offers six (6) RJ-45 local Ethernet LAN Ports, two (2) gigabit Ethernet WAN SFPs ports, two (local/remote, north/south) long-range copper extension ports, plus digital input, and digital output ports for controlling industrial devices, sensors, alarms, or controls.

As a combination Ethernet Extender, Ethernet Switch and Ethernet Router, the units offer Layer 3 capabilities supporting IP protocols required for routing, management and security required for critical industrial infrastructure.

A special relay switch between the two Copper Extension ports (local/remote, north/south) enables the unit to be bypassed (directly connects the copper lines) if the unit is shut down.

A Digital Output interface is used as an Alarm Relay indicating the power status of the unit. When the unit is powered OFF, this relay is closed (Alarm mode) and when the unit power is ON, this relay is open. Digital Inputs support dry-contact mode, where the absence of voltage corresponds to zero (o) and a voltage of 5V to 15V DC corresponds to 1. The Digital Input can be used for a variety of purposes subject to future or customized firmware releases.

Security is enhanced with a laundry list of cyber features including firewall filtering, IPSec tunneling (with IKEv2 and Hub-and-Spoke functions), Simple Certificate Enrollment Protocol (SCEP), X.509 authentication and PKI enrolment. It embeds a Secure-Element for enhanced authentication certificate control, strong encryption of stored information and Secure-Boot to ensure total security of both data and software.


Applications
The CL2380R is a combination Ethernet Switch with SFP based Fiber backhaul and Long Range Ethernet Extender.  Utilized for Industrial Networking applications, the product allows regional fiber rings to inter-connect with local copper based rings or multi-drop links.

Supporting fiber backhaul up to 60 miles using single mode fiber and copper spans up to 4 miles, the solution is ideal for Smart Cities, IIoT, Transportation, Security, Energy and Utilities.



Features
  • Copper and Fiber - Extends Ethernet over copper or fiber cable plant. Allows copper extension spans to switch and route onto fiber backbones. Enables redundant long-range copper and fiber rings.
  • High Speed Transport - Achieves up to 15Mbps over 1 twisted pair. Symmetrical rates are automatically adapted to the copper line conditions (noise environment, wire gauge/type and length).
  • All Topologies - Supports point-to-point, multi-point, daisy-chain, and ring topologies.
  • Long Range - Supports distances of 4 miles (6.5 km) for each span. The number of remote sites and total distance is almost unlimited based on the bridging and repeating capabilities.
  • QoS Traffic Prioritization - QoS Traffic Prioritization Rate Limiting and Priority Queuing functions enable prioritization of traffic types, such as time sensitive signaling or video streams. IP/DSCP, VLAN 802.1Q, Priority Queuing.
  • Packet Forwarding - A store and forward engine performs optimal packet forwarding, delivering the lowest latency for end-to-end transfer.
  • Cyber Secure - Firewall filtering, IPsec tunneling (with IKEv2 and Hub-and-Spoke functions), Simple Certificate Enrollment Protocol (SCEP), X.509 authentication and PKI enrolment.
  • Ethernet & Digital I/O - Ethernet plus Digital Input and Output Extension, Distribution and Routing. Six (6) RJ-45 local Ethernet LAN Ports, Two (2) gigabit Ethernet WAN SFPs, plus digital input, and output contacts. Dual Local + Remote / North + South Long-Range Copper Extension Ports.
  • Configuration & Management - via local USB port (Host/Device), via SSH, HTTP, HTTPS, SNMP, FTP and intuitive Web User Interface.
  • Ruggedized - Built into sturdy metal enclosure offering operating temperatures from -20 to +60C, without fans, so it works in industrial environments with hot, cold, or humid conditions.
  • Flexible Mounting - It comes with DIN rail mounting kit for panel builds and can also be installed in a 19 rack.

Ordering
# Model # Description Availability
1 CL2386R/DC CopperLink Long Range Hybrid Copper-Fiber Ethernet Extender. Six (6) RJ-45 local Ethernet LAN Ports, Two (2) gigabit Ethernet WAN SFPs, Two (2) 1-Pair (2-Wire) line interfaces (for Local, Remote, Repeater or Multi-Point installation), plus digital input, and output contacts. 9-55 VDC Power. Pre-Order Available

 Accessories

2 CL2386R/EUI CopperLink Long Range Hybrid Copper-Fiber Ethernet Extender. Six (6) RJ-45 local Ethernet LAN Ports, Two (2) gigabit Ethernet WAN SFPs, Two (2) 1-Pair (2-Wire) line interfaces (for Local, Remote, Repeater or Multi-Point installation), plus digital input, and output contacts. 110-230 External AC Power. Pre-Order Available

 Accessories

3 CL2386R/SP/DC CopperLink Long Range Hybrid Copper-Fiber Ethernet Extender. Six (6) RJ-45 local Ethernet LAN Ports, Two (2) gigabit Ethernet WAN SFPs, Two (2) 1-Pair (2-Wire) line interfaces (for Local, Remote, Repeater or Multi-Point installation), plus digital input, and output contacts. Primary Surge Protection included. 9-55 VDC Power. Pre-Order Available

 Accessories

4 CL2386R/SP/EUI CopperLink Long Range Hybrid Copper-Fiber Ethernet Extender. Six (6) RJ-45 local Ethernet LAN Ports, Two (2) gigabit Ethernet WAN SFPs, Two (2) 1-Pair (2-Wire) line interfaces (for Local, Remote, Repeater or Multi-Point installation), plus digital input, and output contacts. Primary Surge Protection included. 110-230 External AC Power. Pre-Order Available

 Accessories
