FiberPlex FOI-1GBT Ethernet-to-Fiber Converter | 1000BASE-T Isolator/Modem enclosed in mission critical packaging

Overview

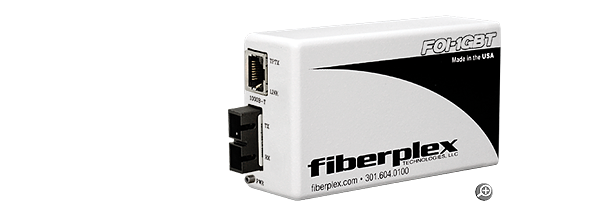

The FOI-1GBT is a rock-solid plug-and-play Ethernet-to-fiber converter & isolator that provides media conversion and extension of Ethernet over fiber. The Ethernet-to-fiber converter provides complete electrical isolation for 1000BASE-T Gigabit Ethernet communications. The unit can be used in areas of high electrical noise or in and out of RF shielded enclosures.

The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. Privacy of communications is also enhanced because the fiber optic cable does not radiate any emissions. In addition, fiber optic cable offers much longer transmission distances than copper wiring.

Traditional 1000BASE-T Cat5e cabling is limited to a maximum distance of 100m, but multimode optics on the Ethernet-to-fiber converter can extend the distance to 550m, while singlemode optics can further extend the distance to 5km.

The copper interface is fully automatic. If TP+ and TP- are reversed, the unit will automatically swap the polarity internally. Similarly, if the transmit and receive pairs are reversed, the unit will automatically swap both pairs internally.

FOI version units can be mounted in several redundant powering chassis; rack and wall mount options including TEMPEST and NEMA alternatives.

Applications

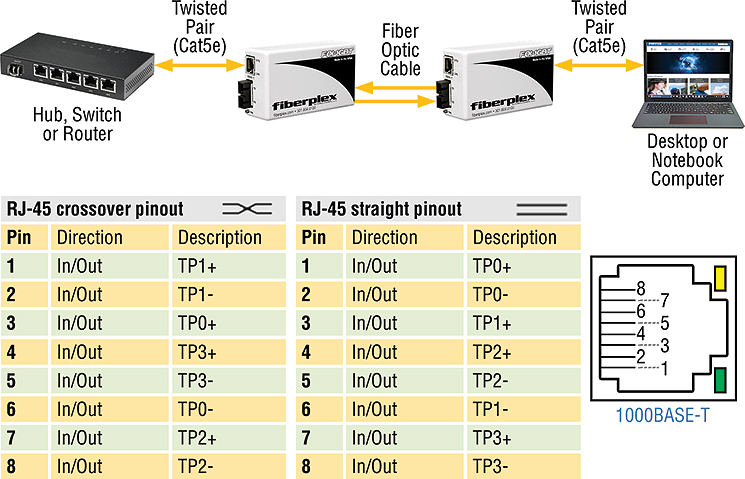

A typical link consists of two FOI-1GBTs, one at each end of the network, with a duplex fiber optic cable in between.

Features

• Extends 1000BASE-T Ethernet up to 1,804 feet (550 m) over multimode cable, 3.1 miles (5.0 km) over singlemode
• Compliant with IEEE 802.3ab
• Supports Data Rate of 1000 Mbps
• Optically compatible with Ethernet optical standards (Multimode: 1000BASE-T to 1000BASE-SX; Singlemode: 1000BASE-T to 1000BASE-LX)
• Automatic polarity correction and MDI/MDIX switch over capability.

Ordering

# Model # Description Availability 1 FOI-1GBT-S-ST 1000 Base-T fiber isolator, Singlemode., Power Options Sold Separately General Availability    Accessories Additional Charge: Industrial Solutions CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-3700 Rack Mount Chassis, NEMA-Compliant enclosure with environmental seal, holds up to (9) FOI type isolators, includes (1) PSM-3010 power supply with facility for a second, cooling fans, requires CMA-3002 for FOI type isolator mounting Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-2010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-2xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-2101 19 in EIA Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, (requires CMA-2001 for FOI type isolator mounting) RMC-3101 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, (requires CMA-3002 for FOI type isolator mounting) RP2-G   (Qty: 1) Override Model Name and description with data from RP2 Part Generator Standalone Operation PSQ-4909   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output PSQ-4909-AUS   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, Australian Plug PSQ-4909-EU   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, EU Plug PSQ-4909-UK   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, UK Plug PSQ-4920   (Qty: 1) Power Supply for 4000 series FOI type isolator stand-alone configuration, 12-48 VDC input, 8.8V @1A output WMA-2001   (Qty: 1) Wall mount adapter for size 2000 or 4000 series FOI type isolators, w/ ST optical patch WMA-3002   (Qty: 1) Wall mount adapter for size 2000, 3000 or 4000 series FOI type isolators 2 FOI-1GBT-ST 1000 Base-T fiber isolator, Multimode., Power Options Sold Separately General Availability    Accessories Additional Charge: Industrial Solutions CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-3700 Rack Mount Chassis, NEMA-Compliant enclosure with environmental seal, holds up to (9) FOI type isolators, includes (1) PSM-3010 power supply with facility for a second, cooling fans, requires CMA-3002 for FOI type isolator mounting Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-2010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-2xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-2101 19 in EIA Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, (requires CMA-2001 for FOI type isolator mounting) RMC-3101 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, (requires CMA-3002 for FOI type isolator mounting) RP2-G   (Qty: 1) Override Model Name and description with data from RP2 Part Generator Standalone Operation PSQ-4909   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output PSQ-4909-AUS   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, Australian Plug PSQ-4909-EU   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, EU Plug PSQ-4909-UK   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, UK Plug PSQ-4920   (Qty: 1) Power Supply for 4000 series FOI type isolator stand-alone configuration, 12-48 VDC input, 8.8V @1A output WMA-2001   (Qty: 1) Wall mount adapter for size 2000 or 4000 series FOI type isolators, w/ ST optical patch WMA-3002   (Qty: 1) Wall mount adapter for size 2000, 3000 or 4000 series FOI type isolators
