Intercom, Alarm and Emergency Notification Systems
FiberPlex FAK-2980 Fire Alarm Kit; SCIF fire alarm / mass notification bundle


The FAK-2980 kit is a fully bundled transmitter, receiver and speaker system for annunciation over fiber.


Overview

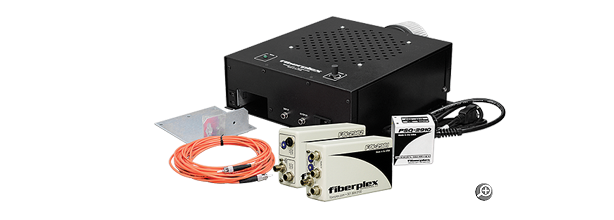

The FAK-2980 is a complete bundled package for Fire Alarm annunciation applications and comes with all the devices and kit needed for an installation. The package includes the FOI-2981 Optical Transmitter with 2 Audio Inputs and 1 Doorbell Input, the FOI-4982 Optical Receiver with 2 Audio Outputs (8 Ohm and 600 Ohm) and the ADP-2981 Amplified Speaker with Strobe. The package is shipped complete with the PSQ-2910 Power Supply and WMA-3002 Wall Mount Adapter for FOI-2981 and other accessories.

Applications
A typical link consists of a FOI-2981 for line level audio connected by a single fiber cable to a FOI-4982 installed into an ADP.

FAK-2980 applications


Features
  • Bundled Fire Alarm Kit
  • Includes the FOI-2981 Optical Transmitter with 2 Audio Inputs and 1 Doorbell Input
  • Includes the FOI-4982 Optical Receiver with 2 Audio Outputs (8 Ohm and 600 Ohm)
  • Includes the ADP-2981 Amplified Speaker with Strobe

Ordering
# Model # Description Availability
1 FAK-2981-ST Fire Alarm Kit with strobe. Consists of 1 each: ADP-2981, FOI-2981-ST, FOI-4982-ST, PSQ-2910, WMA-3002, FC-VMTT1-0-8 (25' simplex, Multimode, ST fiber cable) General Availability
2 FAK-2982-ST Fire Alarm Kit without strobe. Consists of 1 each: ADP-2982, FOI-2981-ST, FOI-4982-ST, PSQ-2910, WMA-3002, FC-VMTT1-0-8 (25' simplex, Multimode, ST fiber cable) General Availability
3 FAK-2983-ST Fire Alarm Kit with strobe. Consists of 1 each: ADP-2981, FOI-2983-ST, FOI-4982-ST, PSQ-2910, WMA-3002, FC-VMTT1-0-8 (25' simplex, Multimode, ST fiber cable) General Availability
