FiberPlex FOI-2980 Fiber Optic Isolator/Converter/Modem - annunciator audio with doorbell; mission critical packaging

Overview
The FOI-2980 Series and FOI-4982 provide electrical isolation and audio line extension. A typical link consists of an FOI-2981 at one end of the network transmitting optical signals to an FOI-4982 at the other end of the network. This multi-use box is excellent for providing voice announcements, background music and dry-contact doorbell connectivity over fiber.

Because is supports multiple audio inputs, the system can support one input for voice announcements and another for background music while providing dry contact for doorbell. Inputs are prioritized for remote play whereby input A overrides inputs B and C and C overrides B.

The unit can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. Privacy of communications is also enhanced because the fiber optic cable does not radiate any emissions. In addition, fiber optic cable offers much longer transmission distances than copper wiring. Multimode optics on the units can extend the distance to 2km.

FOI version units can be mounted in several redundant powering chassis; rack and wall mount options including Tempest and NEMA alternatives.

Applications

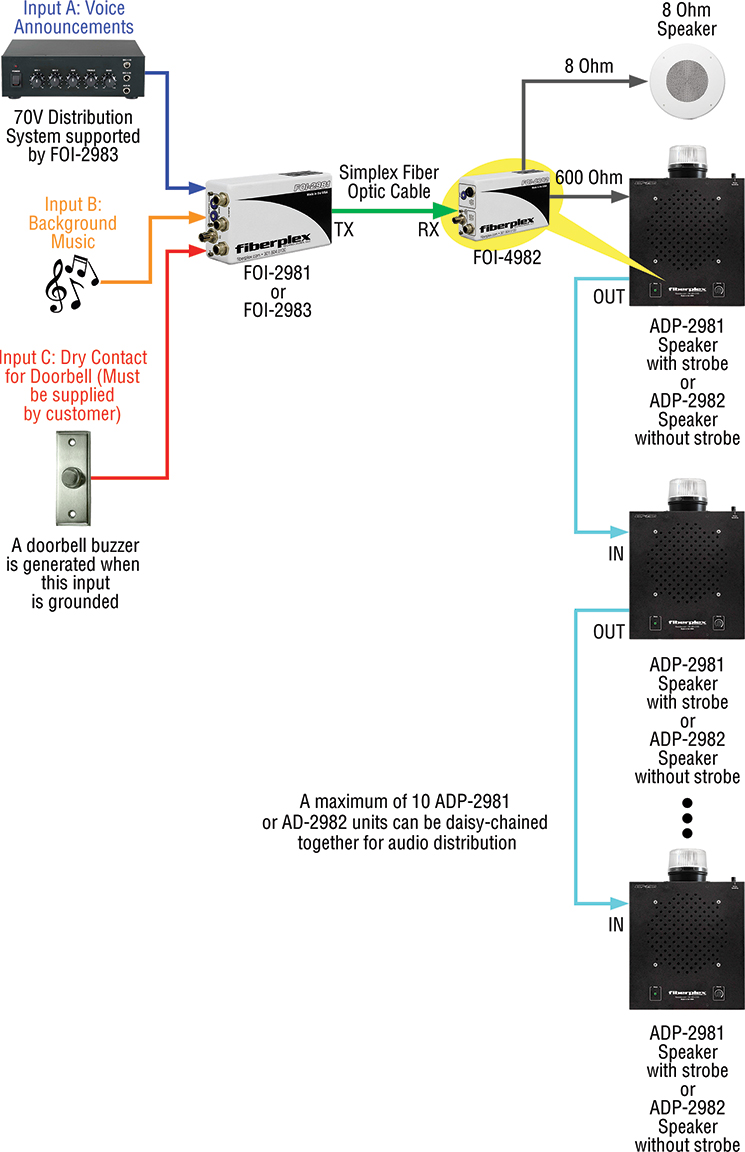

A typical link consists of either an FOI-2981 or an FOI-2983 at one end of the network transmitting optical signals to an FOI-4982 at the other end of the network with a single fiber optic cable.

Features

• Isolates and extends multiple audio channels over Fiber
• Rugged metal enclosures with RFI shielding

Ordering

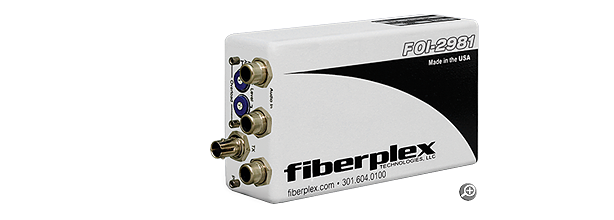

# Model # Description Availability 1 FOI-2981-ST Isolator for annunciator input, 2 line level audio in, 1 contact closure for doorbell function, Multimode ST optics (TX only), Power Options Sold Separately General Availability    Accessories Additional Charge: Industrial Solutions CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-3700 Rack Mount Chassis, NEMA-Compliant enclosure with environmental seal, holds up to (9) FOI type isolators, includes (1) PSM-3010 power supply with facility for a second, cooling fans, requires CMA-3002 for FOI type isolator mounting Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-2101 19 in EIA Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, (requires CMA-2001 for FOI type isolator mounting) RMC-3101 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, (requires CMA-3002 for FOI type isolator mounting) RP2-G   (Qty: 1) Override Model Name and description with data from RP2 Part Generator Standalone Operation PSQ-2909   (Qty: 1) Easy-On Power Supply for size 2 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output PSQ-2920   (Qty: 1) Power Supply for 2000 series FOI type isolator stand-alone configuration, 12-48 VDC input, 8.8V @1A output WMA-2001   (Qty: 1) Wall mount adapter for size 2000 or 4000 series FOI type isolators, w/ ST optical patch WMA-3002   (Qty: 1) Wall mount adapter for size 2000, 3000 or 4000 series FOI type isolators 2 FOI-2983-ST Isolator for annunciator 70 volt input, 1 contact closure for doorbell function, multimode ST optics (TX only), Power Options Sold Separately General Availability    Accessories Additional Charge: Industrial Solutions CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-3700 Rack Mount Chassis, NEMA-Compliant enclosure with environmental seal, holds up to (9) FOI type isolators, includes (1) PSM-3010 power supply with facility for a second, cooling fans, requires CMA-3002 for FOI type isolator mounting Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-2101 19 in EIA Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, (requires CMA-2001 for FOI type isolator mounting) RMC-3101 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, (requires CMA-3002 for FOI type isolator mounting) RP2-G   (Qty: 1) Override Model Name and description with data from RP2 Part Generator Standalone Operation PSQ-2909   (Qty: 1) Easy-On Power Supply for size 2 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output PSQ-2920   (Qty: 1) Power Supply for 2000 series FOI type isolator stand-alone configuration, 12-48 VDC input, 8.8V @1A output WMA-2001   (Qty: 1) Wall mount adapter for size 2000 or 4000 series FOI type isolators, w/ ST optical patch WMA-3002   (Qty: 1) Wall mount adapter for size 2000, 3000 or 4000 series FOI type isolators 3 FOI-4982-ST Isolator for annunciator output, line level and 8 ohm audio outputs, Multimode ST optics (RX only), Power Options Sold Separately General Availability    Accessories Additional Charge: Industrial Solutions CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-3700 Rack Mount Chassis, NEMA-Compliant enclosure with environmental seal, holds up to (9) FOI type isolators, includes (1) PSM-3010 power supply with facility for a second, cooling fans, requires CMA-3002 for FOI type isolator mounting Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) PSM-2010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-2xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts RMC-2101 19 in EIA Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, (requires CMA-2001 for FOI type isolator mounting) RMC-3101 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, (requires CMA-3002 for FOI type isolator mounting) RP2-G   (Qty: 1) Override Model Name and description with data from RP2 Part Generator Standalone Operation PSQ-4909   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output PSQ-4909-AUS   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, Australian Plug PSQ-4909-EU   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, EU Plug PSQ-4909-UK   (Qty: 1) Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, UK Plug PSQ-4920   (Qty: 1) Power Supply for 4000 series FOI type isolator stand-alone configuration, 12-48 VDC input, 8.8V @1A output WMA-2001   (Qty: 1) Wall mount adapter for size 2000 or 4000 series FOI type isolators, w/ ST optical patch WMA-3002   (Qty: 1) Wall mount adapter for size 2000, 3000 or 4000 series FOI type isolators
