Sync. Serial V.35 Fiber Products

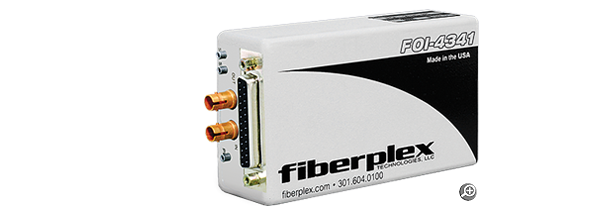

FiberPlex FOI-4341 Fiber Optic Isolator/Converter/Modem - high speed V.35; mission critical packaging



Packed in rugged military style metal enclosures, the FOI-4341 Series Extends and Isolates Synchronous Communication (V.35) at up to 6.144 Mbps over Fiber
Overview
Used in pairs, the FOI-4341 (to DCE) and FOI-4431 (to DTE) provide end-to-end conversion, extension, and electrical isolation of V.35 circuits. Multimode optics can extend the distance to 2km, while singlemode optics can extend the distance to 20km. The units can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. Privacy of communications is also enhanced because the fiber optic cable does not radiate any emissions. Patton recommends “T” units for high security applications because they have been TEMPEST tested and approved.

The units are transparent to all handshaking protocols, and can accept data and clock signals up to a maximum rate of 6.144 Mbps. A regeneration switch on the FOI-4341 enables users to toggle between synchronous applications that require send timing (ST), and asynchronous or synchronous applications that require terminal timing (TT). They support tail circuit and null modem functions for DCE to DCE or DTE to DTE communications. Alternate interface units (RS-232 or RS-422) may be installed at the opposite end, allowing the user to create an isolated interface converter.

Applications

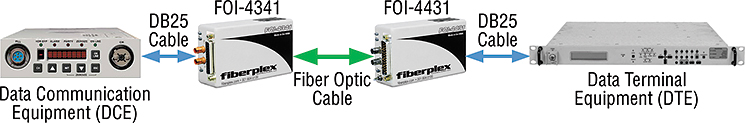

A typical link consists of an FOI-4341 at the Data Communication Equipment (to DCE) and an FOI-4431 at the Data Terminal Equipment (to DTE) with a duplex fiber optic cable between them.

FOI-4341 applications


Features
  • Extends and Isolated Synchronous V.35 Serial Data Over Fiber
  • Multimode extension of up to 1.2 miles (2 km)
  • Singlemode extension up to 12.4 miles (20 km)
  • Separate unit for DCE and DTE: FOI-4341 (to DCE), FOI-4431 (to DTE)
  • Supports Data Rate from DC to 6.144 Mbps
  • Tail circuit and null modem functions for DCE to DCE or DTE to DTE
  • Pairs with other FOI with EIA-530/RS-422 or RS-232 interfaces for interface conversion

Ordering
# Model # Description Availability
1 FOI-4341-FC Isolator for V.35, for connection to DCE, 6 Mbps, multimode FC optics, Power Options Sold Separately Special Order

 Accessories

2 FOI-4341-R-FC Isolator for V.35, for connection to DCE, 6 Mbps, RFI Suppressed, multimode FC optics, Power Options Sold Separately Special Order

 Accessories

3 FOI-4341-RS-FC Isolator for V.35, for connection to DCE, 6 Mbps, RFI Suppressed, singlemode RC optics, Power Options Sold Separately Special Order

 Accessories

4 FOI-4341-RS-ST Isolator for V.35, for connection to DCE, 6 Mbps, RFI Suppressed, Singlemode ST optics, Power Options Sold Separately Special Order

 Accessories

5 FOI-4341-R-ST Isolator for V.35, for connection to DCE, 6 Mbps, RFI Suppressed, Multimode ST optics, Power Options Sold Separately Special Order

 Accessories

6 FOI-4341-SC Isolator for V.35, for connection to DCE, 6 Mbps, multimode SC optics, Power Options Sold Separately Special Order

 Accessories

7 FOI-4341-S-FC Isolator for V.35, for connection to DCE, 6 Mbps, singlemode FC optics, Power Options Sold Separately Special Order

 Accessories

8 FOI-4341-S-SC Isolator for V.35, for connection to DCE, 6 Mbps, singlemode SC optics, Power Options Sold Separately Special Order

 Accessories

9 FOI-4341-S-ST Isolator for V.35, for connection to DCE, 6 Mbps, Singlemode ST optics, Power Options Sold Separately Special Order

 Accessories

10 FOI-4341-ST Isolator for V.35, for connection to DCE, 6 Mbps, Multimode ST optics, Power Options Sold Separately Special Order

 Accessories

11 FOI-4431-FC Isolator for V.35, for connection to DTE, 6 Mbps, multimode FC optics, Power Options Sold Separately Special Order

 Accessories

12 FOI-4431-R-FC Isolator for V.35, for connection to DTE, 6 Mbps, RFI Suppressed, multimode FC optics, Power Options Sold Separately Special Order

 Accessories

13 FOI-4431-RS-FC Isolator for V.35, for connection to DTE, 6 Mbps, RFI Suppressed, singlemode FC optics, Power Options Sold Separately Special Order

 Accessories

14 FOI-4431-RS-ST Isolator for V.35, for connection to DTE, 6 Mbps, RFI Suppressed, Singlemode ST optics, Power Options Sold Separately Special Order

 Accessories

15 FOI-4431-R-ST Isolator for V.35, for connection to DTE, 6 Mbps, RFI Suppressed, Multimode ST optics, Power Options Sold Separately Special Order

 Accessories

16 FOI-4431-SC Isolator for V.35, for connection to DTE, 6 Mbps, multimode SC optics, Power Options Sold Separately Special Order

 Accessories

17 FOI-4431-S-FC Isolator for V.35, for connection to DTE, 6 Mbps, singlemode FC optics, Power Options Sold Separately Special Order

 Accessories

18 FOI-4431-S-SC Isolator for V.35, for connection to DTE, 6 Mbps, singlemode SC optics, Power Options Sold Separately Special Order

 Accessories

19 FOI-4431-S-ST Isolator for V.35, for connection to DTE, 6 Mbps, Singlemode ST optics, Power Options Sold Separately Special Order

 Accessories

20 FOI-4431-ST Isolator for V.35, for connection to DTE, 6 Mbps, Multimode ST optics, Power Options Sold Separately Special Order

 Accessories
