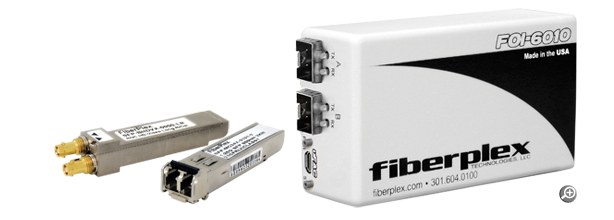

Patton FOI-6010

Overview

The FOI-6010 series is the true “Swiss army knife” of fiber optic transport. The FOI-6010 series, along with any combination of FiberPlex of third-party SFP/SFP+ optical & electrical modules, enables you to transport what you want, when you want it, how you want it, wherever you want it.

With the FOI-6010, the possible applications are virtually endless. Multimode to Single-mode conversion, Optical standard-duplex to single fiber bidirectional (BiDi) transport, Fiber optic signal repeater, wavelength conversion, 10/100/1000 Ethernet over Fiber, ASI, SD-SDI, HD-SDI & 3G-SDI over Fiber, HDMI/DVI over Fiber, MADI over Fiber, 4K UHD Video over Fiber or Video format conversion are just a few of the possibilities. The FiberPlex FOI-6010 and SFP/ SFP+ module should be in everyone’s toolbox.

The FOI-6010 SKUs support Transceiver SFP/SFP+ modules, while the FOI-6012 SKU variants allows for dual transmit or dual receive SFP/SFP+ modules.

FOI version units can be mounted in several redundant powering chassis; rack and wall mount options including Tempest and NEMA alternatives.

Applications
Untitled Document

The FOI-6010 Series facilitates interface between virtually any fiber optic devices. You simply choose the SFP transceiver modules you need for your application.

Mode Conversion/Repeater applications

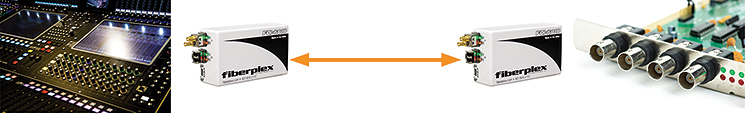

MADI applications

Ethernet applications

HD Video/Security applications

Video Distribution applications

Features

Dual high speed 12.5 Gbps SFP/SFP+ ports
A wide variety of SFPs are available for field installation
FOI-6010: Supports Transceiver SFPs
FOI-6012: Supports TX or Dual RX SFPs
Can be used to for Multimode to Singlemode conversion, fiber bidirectional (BiDi) conversion, Fiber Repeater, Optical wavelength conversion, 10/100/1000 Ethernet to Fiber, ASI, SD-SDI, HD-SDI & 3G-SDI to fiber, HDMI/DVI to fiber, MADI to fiber, 4K UHD Vid
Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting.
Power Adapter Included

Ordering

Model #

Description

Availability

FOI-6010

Isolator, Flexible Interface Dual SFP/SFP+, MSA Compliant, up to 12.5 Gbps, uFAC USB control, Power Options Sold Separately

General Availability

Accessories

Additional Charge:
Industrial Solutions
CMA-3002 (Qty: 1)	Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis)
PSM-3010 (Qty: 1)	Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts
RMC-3700	Rack Mount Chassis, NEMA-Compliant enclosure with environmental seal, holds up to (9) FOI type isolators, includes (1) PSM-3010 power supply with facility for a second, cooling fans, requires CMA-3002 for FOI type isolator mounting
Rack
CMA-2001 (Qty: 1)	Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis)
CMA-3002 (Qty: 1)	Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis)
PSM-2010 (Qty: 1)	Spare \ Redundant power supply F/U/W RMC-2xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts
PSM-3010 (Qty: 1)	Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts
RMC-2101	19 in EIA Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, (requires CMA-2001 for FOI type isolator mounting)
RMC-3101	19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000, 3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, (requires CMA-3002 for FOI type isolator mounting)
RP2-G (Qty: 1)	Override Model Name and description with data from RP2 Part Generator
Standalone Operation
PSQ-4909 (Qty: 1)	Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output
PSQ-4909-AUS (Qty: 1)	Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, Australian Plug
PSQ-4909-EU (Qty: 1)	Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, EU Plug
PSQ-4909-UK (Qty: 1)	Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, UK Plug
PSQ-4920 (Qty: 1)	Power Supply for 4000 series FOI type isolator stand-alone configuration, 12-48 VDC input, 8.8V @1A output
WMA-2001 (Qty: 1)	Wall mount adapter for size 2000 or 4000 series FOI type isolators, w/ ST optical patch
WMA-3002 (Qty: 1)	Wall mount adapter for size 2000, 3000 or 4000 series FOI type isolators

FOI-6012

Isolator, Flexible Interface 2 Channel SFP/SFP+ Dual TX/RX, MSA Compliant, up to 12.5 Gbps, uFAC USB control, Power Options Sold Separately

General Availability

Accessories

Additional Charge:
Industrial Solutions
CMA-3002 (Qty: 1)	Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis)
PSM-3010 (Qty: 1)	Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts
RMC-3700	Rack Mount Chassis, NEMA-Compliant enclosure with environmental seal, holds up to (9) FOI type isolators, includes (1) PSM-3010 power supply with facility for a second, cooling fans, requires CMA-3002 for FOI type isolator mounting
Rack
CMA-2001 (Qty: 1)	Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis)
CMA-3002 (Qty: 1)	Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis)
PSM-2010 (Qty: 1)	Spare \ Redundant power supply F/U/W RMC-2xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts
PSM-3010 (Qty: 1)	Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts
RMC-2101	19 in EIA Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, (requires CMA-2001 for FOI type isolator mounting)
RMC-3101	19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000, 3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, (requires CMA-3002 for FOI type isolator mounting)
RP2-G (Qty: 1)	Override Model Name and description with data from RP2 Part Generator
Standalone Operation
PSQ-4909 (Qty: 1)	Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output
PSQ-4909-AUS (Qty: 1)	Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, Australian Plug
PSQ-4909-EU (Qty: 1)	Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, EU Plug
PSQ-4909-UK (Qty: 1)	Easy-On Power Supply for size 4 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, UK Plug
PSQ-4920 (Qty: 1)	Power Supply for 4000 series FOI type isolator stand-alone configuration, 12-48 VDC input, 8.8V @1A output
WMA-2001 (Qty: 1)	Wall mount adapter for size 2000 or 4000 series FOI type isolators, w/ ST optical patch
WMA-3002 (Qty: 1)	Wall mount adapter for size 2000, 3000 or 4000 series FOI type isolators
