Patton FP2024E Series

Overview

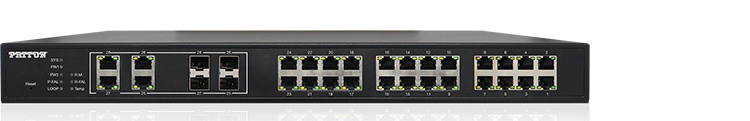

The FP2024E is a 28-port industrial Gigabit PoE+ managed Ethernet switch embedded with 24*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port and 4*100/1000 SFP slots for combo RJ45/Fiber connections.

The unit is a fully manageable Layer 3 Ethernet switch. It supports Source NATs, Destination NATs, and Static Routing. It also has network redundancy function using ERPS, X-Ring (ultra-high-speed recovery time <20 ms), RSTP/STP (802.1w/1D), and MSTP.

The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

Our 10/100/1000 PoE switches comply with industry leading safety standards, such as IEEE 802.3at and IEEE 802.3af. These industrial-managed PoE gigabit switches boast a variety of Power over Ethernet features such as scheduled power cycles, power budgeting, and port settings, as well as Light Layer 3 network management and network redundancy support.

Applications

Features

Gigabit Ethernet & POE - Supports 24*10/100/1000Tx IEEE 802.3 af/at PoE+ Gigabit Ports (PSE: 30W/Port) + 4*Gigabit Copper/SFP Ports (4*10/100/1000Tx RJ45 + 4*100/1000 SFP Slots).
Flexible SFP Support - SFP Socket for Easy and Flexible Fiber Backbone Integration.
Management - SNMP v1/v2c/v3, WEB, Telnet, Standard MIB.
Security - 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3.
Redundancy - Proprietary Ring (Ultra-High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP Does not support ERPS.
DC/POE Power - 48VDC Power Input (46-57 VDC for PoE af, 53-57 VDC is Recommended for PoE at) & 2 Relay Outputs. Power Polarity Reverse Protection. Overload Current Protection.
Rugged Design - Extended Operating Temperature: -40°~75°C, IP30 Protection. 1U Rackmount Chassis.

Ordering

#	Model #	Description	Availability
1	FP2024E/4GE/RJ45+SFP/UI	28-Port Industrial Gigabit POE & SFP Managed Ethernet Switch, with twenty-four 10/100 RJ-45 POE+ Ethernet Ports, 4x 10/100/1000 RJ45 Ports and four SFP+ Slots (32 Physical Ports Total, 28 Active). Single AC Power Supply. 1U 19" Rackmount Kit included.	Pre-Order Available

Managed Industrial Switches
FiberPlex FP2024E Ruggedized (IP30), POE & SFP 28-Port Industrial Gigabit Managed Ethernet Switch

This mid-density 10/100/1000 industrial gigabit PoE managed switch features a variety of Power over Ethernet capabilities, Layer 3 network management and network redundancy support.
