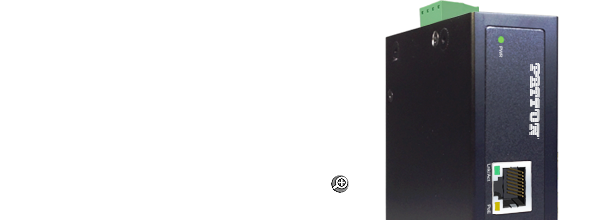

FiberPlex FP101E Industrial Gigabit SFP Media Converter

Overview
Patton’ FP101E converts singlemode or multimode fiber to a copper Ethernet signal. The combination of high bandwidth and noise immunity of fiber makes these ideally suited for many applications including IP security cameras, IP speakers, VoIP phones, Wireless Access Points, POS kiosks, BACs, PLCs and more.

Because Ethernet over Cat 5e/6 cables is limited to only 100 meters (328 feet), using fiber as a backhaul allows for a massive increase in distances. SFP options for multimode can reach up to 2 km (1.24 miles) and singlemode options can range as far as 120 km (74 miles). In addition to the reach, you get Fiber’s superior immunity to noise and, harmful transients (surges).

The FP101E is housed in an IP30 rated DIN rail, wall-mount enabled enclosure and has a wide operating temperature of -40 to 75°C (-40 to 167°F). Its rugged design and wide temperature range makes it an ideal media converter for industrial or harsh environments.

The Fiberplex 101E is very simple to use, completely plug and play. LEDs will make it clear when power is detected and when data is passing both on the copper and fiber lines.

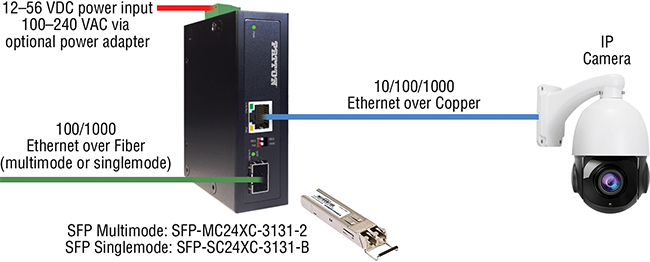

Applications

Features

• Extended Operating Temperature - -40 to 75°C (-40 to -167°F) ambient temperature range.
• Flexible Mounting Options - Wall mount, DIN rail or desktop.
• Rugged - Meets tough EN60068 standards for Free Fall, Shock and Vibration.
• Link Fault Pass-Through (LFP) - If the copper signal is lost or disconnected, the fiber signal will turn off, if the fiber signal is lost or disconnected, the copper port will turn off.
• Plug and Play - Auto sensing network speeds and PoE compliant power negotiation makes this product incredibly easy to use.
• TAA Compliant - Top notch quality and reliability with local support.

Ordering

# Model # Description Availability 1 FP101E/SFP/DC Industrial Gigabit SFP Media Converter; 10/100/1000BaseTX (RJ45); 100/1000 (SFP); -40 ot 75C; 12-56VDC Input General Availability    Accessories Additional Charge: Power Supply 25000043   (Qty: 1) Industrial AC/DC DIN Rail 54 Watt Power Supply, HDR-60-12,12VDC/4.5A output, 85-264VAC input; -30 to 70C 25000044   (Qty: 1) Industrial AC/DC DIN Rail 150Watt Power Supply, HDR-150-48, 48VDC/3.2A output, 85-264VAC input; -30 to 70C 25000045   (Qty: 1) Industrial AC/DC DIN Rail 60 Watt Power Supply, HDR-60-48, 48VDC/1.25A output, 85-264VAC input; -30 to 70C 25000046   (Qty: 1) Industrial AC/DC DIN Rail 480 Watt Power Supply, NDR-480-48, 48VDC/10A output, 90-264VAC input; -20 to 70C 25000047   (Qty: 1) Industrial AC/DC DIN Rail 36 Watt Power Supply, HDR-30-48, 48VDC/0.75A output, 85-264VAC input; -30 to 70C 25000048   (Qty: 1) Industrial AC/DC DIN Rail 240 Watt Power Supply, DRP-240-48, 48VDC/5A output, 85-264VAC input; -10 to 70C 25000055   (Qty: 1) Industrial AC/DC DIN Rail 150Watt Power Supply, HDR-150-24, 24VDC/6.25A output, 85-264VAC input; -30 to 70C SFP SFP-SC24XC-5555-F SFP, Optical Singlemode LC, 1.25GB (OC24), Data, Transceiver, TX Wavelength:1550 nm , RX Wavelength:1550 nm, 80km, MSA SFP-SC24XC-5555-H SFP, Optical Singlemode LC, 1.25GB (OC24), Data, Transceiver, TX Wavelength:1550 nm , RX Wavelength:1550 nm, 120km, MSA
