PoE Injectors and Splitters

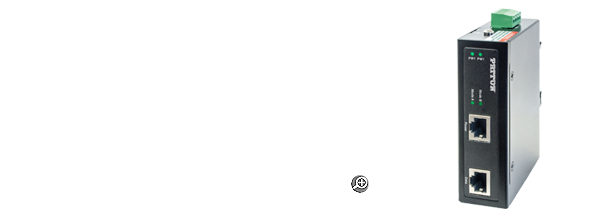

CopperLink CL141EAT Industrial Gigabit 30W (802.3at)PoE Injector



Industrial Gigabit PoE+ Injector with voltage booster accepts 12–56 VDC and boosts it up to 55 VDC for 30-watt PoE+ applications.


Overview
Patton’s CL141E/AT is an Industrial all in one Gigabit PoE+ injector and power booster. Our power boost technology allows low input voltages, such as 12, 24, or 48 VDC to be boosted up to the required IEEE802.3af/at PoE requirements of 55 VDC.

This is a perfect PoE injector for use in light industrial environments. The CL141E/AT is housed in an IP30-rated DIN-rail or wall-mount enabled enclosure, and has a wide operating temperature of -40 to 167°F (-40 to 75°C). Its rugged design, wide temperature and power input range makes it an ideal model for security, building automation, transportation and telco applications.

The CL141E/AT is very simple to use, completely plug and play. LEDs will make it clear when power is detected on the power inputs, and when PoE is being delivered. This is a PoE-compliant device, so the amount of power is negotiated automatically by the injector. Should the device you are connecting to not be PoE-enabled, the CL141E/AT will detect this and not pass power to the connected device.

Applications

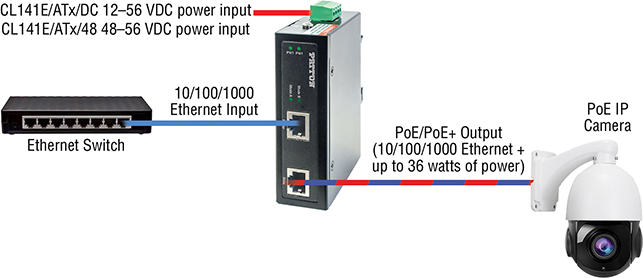

CopperLink™ CL141E-AT application diagram


Features
  • Extended Operating Temperature - -40 to 167°F (-40 to 75°C) ambient temperature range
  • Flexible Mounting Options - Wall mount, DIN rail or desktop
  • Rugged - Meets tough EN60068 standards for Free Fall, Shock and Vibration
  • Redundant Power Input - Wide-Range 12, 24, or 48-VDC power input
  • Plug and Play - Auto-sensing network speeds and PoE-compliant power negotiation makes this product incredibly easy to use
  • TAA Compliant - Top-notch quality and reliability with local support

Ordering
# Model # Description Availability
1 CL141E/AT/DC Industrial Gigabit 30W (802.3at) PoE Injector; 12-56VDC input Pre-Order Available

 Accessories
