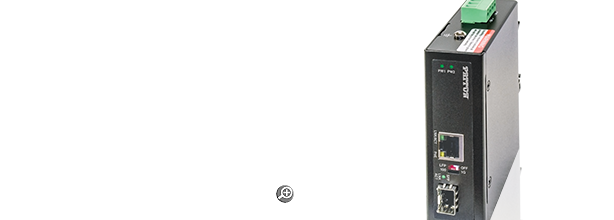

FiberPlex FP101EBT Industrial Gigabit Media Converter with 90W (802.3bt) PoE Injector



FP101E/BT90 Industrial Gigabit Media Converter with built in 90-watt PoE injector offers the benefits inherent of fiber with the flexibility of Power over Ethernet.


Overview
Patton’s FP101E/BT90 converts singlemode or multimode fiber to a copper Ethernet signal. With the built-in high power PoE (Power over Ethernet) injector and a local power source, you can easily and reliably extend both power (90 watts/high power PoE) and 10/100/1000 Mbps Gigabit Ethernet to any PoE enabled end point including devices such as IP security cameras, IP speakers, Digital Signage, VoIP phones, Wireless Access Points, POS kiosks, BACs, PLCs and more.


Because Gigabit Ethernet over Cat5e/6 cables is limited to about 100 meters (328 feet), using fiber as a backhaul allows for a massive increase in distances. SFP options for multimode can reach up to 2 km (1.24 miles) and singlemode options can range as far as 120 km (74 miles). In addition to the reach, you get Fiber’s superior immunity to noise and, harmful transients (surges).


The FP101E/BT90 is housed in an IP30 rated DIN rail, wall-mount enabled enclosure and has a wide operating temperature of -40 to 75C. Its rugged design and wide temperature range makes it an ideal media converter for industrial or harsh environments.

The Fiberplex 101E/BT90 is very simple to use, completely plug and play. LEDs will make it clear when power is detected on the power inputs and when PoE is being delivered. This is a PoE compliant device so the amount of power is negotiated automatically by the injector. Should the device you are connecting to not be PoE enabled, the FP101E/BT90 will detect this and not pass power to the connected device.

Applications

FiberPlex™ FP101E-BT90 application diagram


Features
  • Extended Operating Temperature - -40 to 75C (-40 to -167F) ambient temperature range.
  • Flexible Mounting Options - Wall mount, DIN rail or desktop.
  • Rugged - Meets tough EN60068 standards for Free Fall, Shock and Vibration.
  • Plug and Play - Auto sensing network speeds and PoE compliant power negotiation makes this product incredibly easy to use.
  • Link Fault Pass-Through (LFP) - If the copper signal is lost or disconnected, the fiber signal will turn off. If the fiber signal is lost or disconnected, the copper port will turn off.
  • Full PoE Support - Supports all current options for standards-based PoE including 60W uPoE and 95W Power over HDBaseT (PoH).
  • TAA Compliant - Top notch quality and reliability with local support.

Ordering
# Model # Description Availability
1 FP101E/SFP/BT90/52 Industrial Gigabit SFP Media Converter with IEEE802.3at Power Injector (30W); 10/100/10000Base-TX (RJ45); 1G (SFP); -40 ot 75C; 52-56VDC Input Pre-Order Available
