Model 1008 and 1004A Self-Powered, High Speed, Multipoint, DB-9 and DB-25, Short-Haul Modems

The Best Choice for Long Range High Speed Multidrop Applications

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Specs

Ordering

Services



Features
--Image: Made in USA -- --Image: RACKABLE! Rack Mount Available --
  • Point-to-Point or Multipoint Operation over 2 or 4 Wires
  • Multidrop up to 50 Terminals
  • Async. Data Rates to 115.2 Kbps
  • Range to 9 Miles (14.5 Km) on 19 AWG at 1.2 kbps
  • Transmits and Receives Data plus One Control Signal Each Way
  • Selectable RTS/CTS Delay
  • Operates with or without "Echo"
  • Two Separate Impedance Settings
  • "Carrier ON" or "RTS Controlled"
  • FCC Approved-Part 15 Class A
  • Silicon Avalanche Diode Surge Protection Now Standard
  • No AC Power or Batteries Needed
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview

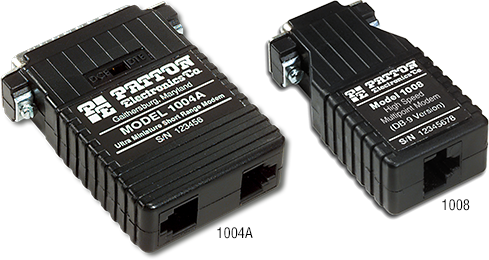

The Model 1008 and Model 1004A supports data rates to 115.2 kbps and distances up to 9 miles (14.5 Km) on 19 AWG @ 1200 bps over one or two twisted pair. Requiring no AC power or batteries for operation, these Short Haul Modems allow up to 50 terminal drops in a multidrop environment.

The 1008 and 1000 pass data, plus one control signal, in each direction. Five separate configuration parameters let you custom-tailor the SRMs.  These include two separate high/low impedance settings, echo on/off and selectable RTS/CTS delay, as well as selectable carrier control and a DCE/DTE switch.

And 600 watts per wire of Silicon Avalanche Diode surge protection is standard !




Ordering
# Model # Description Availability
1 1004AF MINI CARRIER CONTROLLED LINE DRIVER Special Order
2 1004AFDR11 MINI CONTROLLED LINE DRIVER DUAL RJ-11 Special Order
3 1004AFDR45 MINI CONTROLLED LINE DRIVER DUAL RJ-45 Special Order
4 1004AFRJ11 MINI CONTROLLED LINE DRIVER W-RJ11 Special Order
5 1004AFRJ45 MINI CONTROLLED LINE DRIVER W-RJ45 Special Order
6 1004AM MINI CARRIER CONTROLLED LINE DRIVER Special Order
7 1004AMDR11 MINI CONTROLLED LINE DRIVER DUAL RJ-11 Special Order
8 1004AMDR45 MINI CONTROLLED LINE DRIVER DUAL RJ-45 Special Order
9 1004AMRJ11 MINI CONTROLLED LINE DRIVER W-RJ11 Special Order
10 1004AMRJ45 MINI CONTROLLED LINE DRIVER W-RJ45 Special Order
11 1008F MULTIPOINT LINE DRIVER, DB9F General Availability
12 1008F RJ11 MULTIPOINT LINE DRIVER, DB9F/RJ11 General Availability
13 1008F RJ45 MULTIPOINT LINE DRIVER, DB9F/RJ45 General Availability
14 1008M MULTIPOINT LINE DRIVER,DB9M General Availability
15 1008M RJ11 MULTIPOINT LINE DRIVER, DB9M/RJ11 General Availability
16 1008M RJ45 MULTIPOINT LINE DRIVER, DB9M/RJ45 General Availability
