Overview
The CopperLink™ Model 2173 High Speed Ethernet Extender leverages existing copper infrastructure to deliver high-speed Ethernet extension. Providing aggregate data rates up to 155 Mbps (upstream + downstream), the Model 2173 is the perfect solution for delivering triple-play communications services and other bandwidth-intensive applications. CopperLink™ Ethernet Extenders easily inter-connect remote devices or remote networks to a central LAN for such applications as medical imaging, video-conferencing, Ethernet bridging, Triple Play, and VoIP.
The Model 2173 includes an auto-rate adaptation feature providing the maximum achievable asymmetrical line rate based on environment and the length and gauge/type of cable. Asymmetrical line rates are the ideal solution for applications that require longer extension between their Ethernet devices and for applications that primarily involve high downstream requirements. These asymmetrical applications include high resolution IP video for security, medical imaging, livestock monitoring, underwater video, and internet gaming. Also included in the Model 2173 is the ability to configure the Ethernet Extender for a hard set 25-Mbps symmetrical line rate. Typical symmetrical applications include remote LAN extension, video teleconferencing, and data backhaul.
Get near-fiber performance without the expense with Patton’s High Speed CopperLink Ethernet Extenders.
Take your network connections faster and farther over existing voice-grade wire with Patton CopperLink™ Ethernet Extenders!
Applications
Workgroup Ethernet Extension Application
The Model 2173 dual port CopperLink Ethernet Extenders are ideal for delivering high speed IP video and data links to remote devices that are beyond the 328 foot (100 meter) distance limit of Ethernet. The high throughput eliminates bandwidth concerns previously experiences with many other copper based transmission technologies. By utilizing existing voice grade copper pairs, the expense and hassle of installing low capacitance or fiber cabling is no longer required.

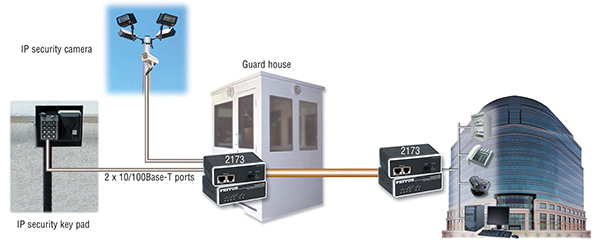

Depicted below is a typical application involving multiple network enabled devices (Ethernet) plugged in for simultaneous Ethernet data and IP video delivery.
The CopperLink™ Model 2173 High Speed Ethernet Extender leverages existing copper infrastructure to deliver high-speed Ethernet extension. Providing aggregate data rates up to 155 Mbps (upstream + downstream), the Model 2173 is the perfect solution for delivering triple-play communications services and other bandwidth-intensive applications. CopperLink™ Ethernet Extenders easily inter-connect remote devices or remote networks to a central LAN for such applications as medical imaging, video-conferencing, Ethernet bridging, Triple Play, and VoIP.
The Model 2173 includes an auto-rate adaptation feature providing the maximum achievable asymmetrical line rate based on environment and the length and gauge/type of cable. Asymmetrical line rates are the ideal solution for applications that require longer extension between their Ethernet devices and for applications that primarily involve high downstream requirements. These asymmetrical applications include high resolution IP video for security, medical imaging, livestock monitoring, underwater video, and internet gaming. Also included in the Model 2173 is the ability to configure the Ethernet Extender for a hard set 25-Mbps symmetrical line rate. Typical symmetrical applications include remote LAN extension, video teleconferencing, and data backhaul.
Get near-fiber performance without the expense with Patton’s High Speed CopperLink Ethernet Extenders.
|
Model 2173 Distance Chart, Based on 24 AWG (0.5 mm)
|
|||
|
Data Rate
|
Distance
|
Mode
|
Throughput at Max Distance in Mbps
|
|
4/1
|
5,500 ft (1.6 km)
|
Fast
|
4.00 (DS)/1.00 (US)
|
|
4/1
|
5,500 ft (1.6 km)
|
Interleave
|
4.00 (DS)/1.00 (US)
|
|
100/70
|
500 ft
(0.15 km)
|
Fast
|
83 (DS)/69.5 (US)
|
|
100/70
|
250 ft (0.07 km)
|
Interleave
|
83 (DS)/69.5 (US)
|
|
25/25
|
2,250 ft (0.6 km)
|
Interleave
|
24.89 (DS)/24.89 (US)
|
|
50/50
|
1,750 ft (0.5 km)
|
Fast
|
49.78 (DS)/49.78 (US)
|
|
50/50
|
1,750 ft (0.5 km)
|
Interleave
|
49.78 (DS)/49.78 (US)
|
|
70/70
|
1,750 ft
(0.5 km)
|
Fast
|
51 (DS)/51 (US)
|
|
70/70
|
1,750 ft
(0.5 km)
|
Interleave
|
51 (DS)/51 (US)
|
| Note: The actual distance and link performance may vary depending on the environment and type/gauge of wire used. Note: DS = downstream, US = upstream |
|||
|
CopperLink™ Copper Ethernet Extenders |
|
# of
Ethernet Ports |
# of wire pairs
|
Max. Speed (Mbps)
|
Distance at Max. Speed
|
CopperLink™
Model |
|
2
|
1
|
N/A
|
2,625 ft/0.8 km
|
|
|
2
|
1
|
100
|
500 ft/0.15 km
|
|
|
4
|
4
|
45.6
|
4,600 ft/1.4 km
|
|
|
4
|
2
|
22.8
|
4,600 ft/1.4 km
|
|
|
2
|
1
|
15
|
2,953 ft/0.9 km
|
|
|
4
|
1
|
11.4
|
4,593 ft/1.4 km
|
|
|
2
|
1
|
10
|
4,265 ft/1.3 km
|
|
|
1
|
1
|
4.6
|
10,827 ft/3.3 km
|
|
|
1
|
1
|
2.3
|
16,404 ft/5.0 km
|
Applications
Workgroup Ethernet Extension Application
The Model 2173 dual port CopperLink Ethernet Extenders are ideal for delivering high speed IP video and data links to remote devices that are beyond the 328 foot (100 meter) distance limit of Ethernet. The high throughput eliminates bandwidth concerns previously experiences with many other copper based transmission technologies. By utilizing existing voice grade copper pairs, the expense and hassle of installing low capacitance or fiber cabling is no longer required.
Depicted below is a typical application involving multiple network enabled devices (Ethernet) plugged in for simultaneous Ethernet data and IP video delivery.
Features
- Ethernet Extension—Extends 10/100Base-TX Ethernet up to 4,250 feet over 2-wire 24 AWG twisted pair.
- Operates Over Twisted Pair—Near fiber speeds without the cost of new cable or fiber installations or the hassles of wireless line of site.
- Plug and Play—Modems need no configuration to operate, Ethernet ports are auto-sensing 10/100, full or half duplex.
- Multiple Line Rates Supported—Switch-selectable line rates ensure best possible rate vs. reach combination.
- Transparent LAN Bridging—No network configuration. Will pass higher layer protocols, including 802.1Q VLAN tagged and untagged packets. Fully transparent to various UP video compression schemes such as WMV, MPEG-4 and MJPEG.
|
