Features
- Ethernet Extension—Extends 10/100 Base-TX Ethernet distances 1 mile using 2-wire 24 AWG unconditioned lines.
- Seamlessly Connect and Extend the LAN—802.3 10/100Base-TX LAN connection via built-in shielded RJ-45 port.
- CopperLink 2-Wire Connection—Easy 2-wire CopperLink connection via built-in RJ-45 port.
- Switch Selectable—Asymmetrical or Symmetrical line rates up to 15 Mbps!
- Dual Auto-sensing Full-Duplex Ethernet—Auto 10 or 100Base-T and full or half-duplex Ethernet operational.
- Transparent LAN Bridging—Passes higher layer protocols and supports 802.1Q VLAN tagging.
- Automatic Learning, Aging, and Filtering—Only allows packets with addresses outside the LAN to be forwarded.
Overview
The Patton Model 2151 Multi-Rate CopperLink Ethernet Extender enables the utilization of existing copper infrastructure for high speed Ethernet extensions at data rates up to 15 Mbps. The 2151 includes asymmetrical and symmetrical settings for increasing the distance or speed of the Ethernet connections.
CopperLink applications include Ethernet extension, medical imaging, video-conferencing, and inter-connecting remote devices or remote networks to a central LAN. The multi-rate symmetrical line rates ensure the highest possible data rate is achieved over various lengths and types of copper wire and environments. Multi-rate asymmetrical line rates make the Model 2151 the ideal solution for service providers who want to differentiate their services or extend the reach of their customer base. The Model 2151 allows service providers to offer unparalleled performance for such applications as always on Internet access, real-time bi-directional video streaming, and various multimedia applications.
If you want to take your network and voice connections farther and faster over existing copper and eliminate the expense of fiber, Patton’s CopperLink Ethernet Extenders are the products for you! Just plug, power, and play!
|
Model 2151 Distance Chart, Based on 24 AWG (0.5 mm)
|
|
|
Distance
|
Throughput at Max Distance in Mbps
|
|
4/1
|
5,500 ft (1.6 km)
|
|
|
9/1
|
5,750 ft (1.7 km)
|
|
|
16/2
|
4,700 ft (1.4 km)
|
|
|
6/6
|
5,500 ft (1.6 km)
|
5.98 (DS)/5.98 (US)
|
|
10/10
|
5,000 ft (1.5 km)
|
|
|
15/15
|
4,250 ft (1.2 km)
|
14.96 (DS)/14.96 (US)
|
| |
Note: The actual distance and link performance may vary depending on the environment and type/gauge of wire used.
Note: DS = downstream, US = upstream |
|
CopperLink™ Copper Ethernet Extenders
|
Take your network connections faster and farther over existing voice-grade wire with Patton CopperLink™ Ethernet Extenders!
|
|
|
|
Distance at Max. Speed
|
|
|
|
|
N/A
|
2,625 ft/0.8 km
|
|
|
|
|
|
500 ft/0.15 km
|
|
|
|
|
|
4,600 ft/1.4 km
|
|
|
4
|
2
|
|
4,600 ft/1.4 km
|
|
|
2
|
1
|
|
2,953 ft/0.9 km
|
|
|
|
|
|
4,593 ft/1.4 km
|
|
|
2
|
|
10
|
4,265 ft/1.3 km
|
|
|
1
|
|
4.6
|
10,827 ft/3.3 km
|
|
|
1
|
|
2.3
|
16,404 ft/5.0 km
|
|
Applications

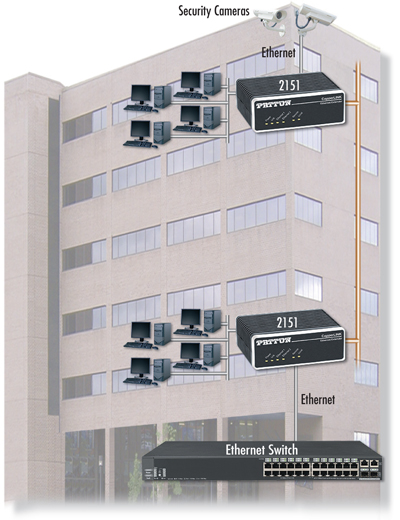

Workgroup Ethernet extension application
Ethernet Extender allows copper instead of fiber for vertical Ethernet spans!
These multi-rate Ethernet Extenders are ideal for bridging Ethernet spans inside buildings that are beyond the 328-foot (100-meter) distance limit of Ethernet.
For example, connecting remote LANs located on different floors in a building over already existing telephone-grade twisted pair.
Ordering
| # |
Model # |
Description |
Availability |
| 1 |
2151/E-SKD |
CopperLink 16Mbps PCB Extender (Local); RJ45 |
End of Life-Notice |
| 2 |
2151/EUI |
CopperLink Multi Rate 16 Mbps Dual Port Ethernet Extender; RJ45 Connectors only; 100-240 VAC |
End of Life-Notice |
| |
 Accessories |
| 12-131 |
United Kingdom plug for interchangeable power supplies |
| 12-132 |
Australian plug for interchangeable power supplies |
| 12-201 |
CON,POWER,SYS-1357,KR |
| 12-202 |
South African plug for interchangeable power supplies |
|
| 3 |
2151/EUI-2PK |
CopperLink Multi Rate 16 Mbps Dual Port Ethernet Extender Kit (1 Local Unit and 1 Remote Unit);RJ45 Connectors only; 100-240VAC |
End of Life-Notice |
| |
| Accessories |
| 12-131 |
United Kingdom plug for interchangeable power supplies |
| 12-132 |
Australian plug for interchangeable power supplies |
| 12-201 |
CON,POWER,SYS-1357,KR |
| 12-202 |
South African plug for interchangeable power supplies |
|
|
