Overview
The 1200 BRI Media Gateway enables two simultaneous ISDN voice/data calls over any IP connection. Providing transparent access to Voice-over-IP (VoIP), data, and T.38 fax; the SmartNode is perfect for SOHO, SME, and ITSP customers requiring a cost-effective and flexible solution for Digital VoIP access.
Functioning as a H.323, SIP or MGCP/IUA gateway, the SN1200 supports multiple user-defined G.711 and G.726 voice codecs as well as G.723 and G.729ab and T.38 for low bandwidth voice or fax. With Patton's ToIP™ call routing technology, and NT and TE interfaces, the SN1200 links any standard ISDN telephone or PBX to VoIP while still connecting to legacy PSTN services and equipment.
The SmartNode's flexible programming interface combines a real-time Quality-of-Service IP router with advanced network features. With NAT, DHCP, PPPoE, and Access Control Lists/Firewall, the SN1200 connects your LAN to the WAN without the cost of extra equipment. Using its built-in QoS feature delivers the highest quality of voice every time-all the time.

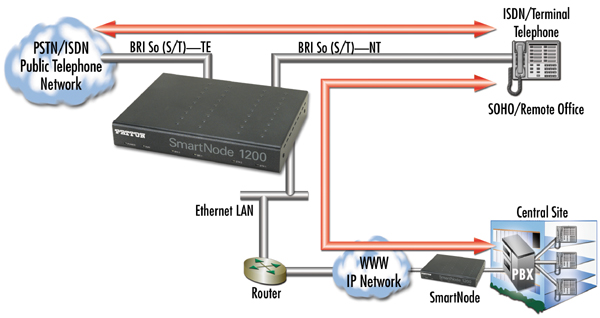

Configuration Example: Remote Office Connectivity and Pass-Through
The SmartNode 1200 Media Gateway can be used for a wide variety of VoIP network applications, including SOHO/Remote office PBX extension. A remote phone/terminal connects to the SN1200 via the integrated ISDN NT BRI S0 (S/T) interface. VoIP enables the phone/terminal to connect to the corporate PBX without incurring any long distance charges. Using Patton's ToIP™ technology, the local PSTN can be connected to the TE interface. Now a single telephone can access both local and remote calls.
The 1200 BRI Media Gateway enables two simultaneous ISDN voice/data calls over any IP connection. Providing transparent access to Voice-over-IP (VoIP), data, and T.38 fax; the SmartNode is perfect for SOHO, SME, and ITSP customers requiring a cost-effective and flexible solution for Digital VoIP access.
Functioning as a H.323, SIP or MGCP/IUA gateway, the SN1200 supports multiple user-defined G.711 and G.726 voice codecs as well as G.723 and G.729ab and T.38 for low bandwidth voice or fax. With Patton's ToIP™ call routing technology, and NT and TE interfaces, the SN1200 links any standard ISDN telephone or PBX to VoIP while still connecting to legacy PSTN services and equipment.
The SmartNode's flexible programming interface combines a real-time Quality-of-Service IP router with advanced network features. With NAT, DHCP, PPPoE, and Access Control Lists/Firewall, the SN1200 connects your LAN to the WAN without the cost of extra equipment. Using its built-in QoS feature delivers the highest quality of voice every time-all the time.
Configuration Example: Remote Office Connectivity and Pass-Through
The SmartNode 1200 Media Gateway can be used for a wide variety of VoIP network applications, including SOHO/Remote office PBX extension. A remote phone/terminal connects to the SN1200 via the integrated ISDN NT BRI S0 (S/T) interface. VoIP enables the phone/terminal to connect to the corporate PBX without incurring any long distance charges. Using Patton's ToIP™ technology, the local PSTN can be connected to the TE interface. Now a single telephone can access both local and remote calls.
Features
- VoIP Dual Ethernet router, 2-channel ISDN BRI gateway
- LAN-to-LAN connectivity
- Voice VPNs
- Real-time quality of service (TOS, Diffserv, and IEEE 802.1p/Q)
- On-board DSP support multiple voice codecs
- G.711 A-Law/µ-Law; G.723.1 (at 5.3 or 6.3 kbit/s); G.729A; Transparent
- Euro ISDN EDSS-1/ETSI BRI/NET3
- H.323v4; Q-SIG (PSS-1), and SIPv2
- Simultaneous compresses ISDN Voice Calls over the same IP Link
- Static firewall with NAPT and Access Control Lists
- Industry standard CLI, SNMP, TFTP configuration and software upgradeable
- EMC & CE compliant
- 1-year warranty
- Optional Upgrade: 2-5 year Warranty
- Optional Upgrade: 1-5 year Enhanced Warranty (includes free Advance Replacements)
|
