Overview
The Patton CopperLink™ 2173R utilizes pre-existing twisted pair infrastructure enabling twisted pair previously used for legacy systems such as TTL, RS232 and 422/485 to be used for extending networks or connecting Ethernet devices together. With a pair of 2173Rs or combined with a desktop-style 2173, twisted pair can carry an extraordinary bandwidth of 155 Mbps full-duplex (upstream plus downstream). Reusing the already existing infrastructure for Ethernet Networking eliminates the cost of purchasing expensive fiber and Cat5E or greater cabling. Most important, it avoids the downtime and hassles that installing cable would cause.
The 2173R operates in rugged environments where temperatures range from -40 to 85°C. The 2173R’s sturdy aluminum case can be quickly mounted on a wall or DIN rail (with optional DIN rail kit).
Take your network connections faster and farther over existing voice-grade wire with Patton CopperLink™ Ethernet Extenders!
Applications
Workgroup Ethernet Extension Application

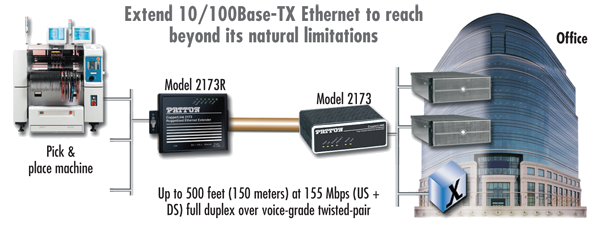

The Model 2173R multi-rate Ethernet Extenders are ideal for delivering Ethernet links to remote buildings that are beyond the 328-foot (100-meter) distance limit of Ethernet. 100 Mbps throughput eliminates bandwidth concerns previously experienced with other copper wired transmission technologies. By utilizing existing voice grade copper pairs the expense and hassle of installing low capacitance or fiber cable is no longer required.
The Patton CopperLink™ 2173R utilizes pre-existing twisted pair infrastructure enabling twisted pair previously used for legacy systems such as TTL, RS232 and 422/485 to be used for extending networks or connecting Ethernet devices together. With a pair of 2173Rs or combined with a desktop-style 2173, twisted pair can carry an extraordinary bandwidth of 155 Mbps full-duplex (upstream plus downstream). Reusing the already existing infrastructure for Ethernet Networking eliminates the cost of purchasing expensive fiber and Cat5E or greater cabling. Most important, it avoids the downtime and hassles that installing cable would cause.
The 2173R operates in rugged environments where temperatures range from -40 to 85°C. The 2173R’s sturdy aluminum case can be quickly mounted on a wall or DIN rail (with optional DIN rail kit).
|
Model 2173R Distance Chart, Based on 24 AWG (0.5 mm)
|
|||
|
Data Rate
|
Distance
|
Mode
|
Throughput at Max Distance in Mbps
|
|
4/1
|
5,500 ft (1.6 km)
|
Fast
|
4.00 (DS)/1.00 (US)
|
|
4/1
|
5,500 ft (1.6 km)
|
Interleave
|
4.00 (DS)/1.00 (US)
|
|
100/70
|
500 ft
(0.15 km)
|
Fast
|
83 (DS)/69.5 (US)
|
|
100/70
|
250 ft (0.07 km)
|
Interleave
|
83 (DS)/69.5 (US)
|
|
25/25
|
2,250 ft (0.6 km)
|
Interleave
|
24.89 (DS)/24.89 (US)
|
|
50/50
|
1,750 ft (0.5 km)
|
Fast
|
49.78 (DS)/49.78 (US)
|
|
50/50
|
1,750 ft (0.5 km)
|
Interleave
|
49.78 (DS)/49.78 (US)
|
|
70/70
|
1,750 ft
(0.5 km)
|
Fast
|
51 (DS)/51 (US)
|
|
70/70
|
1,750 ft
(0.5 km)
|
Interleave
|
51 (DS)/51 (US)
|
| Note: The actual distance and link performance may vary depending on the environment and type/gauge of wire used. Note: DS = downstream, US = upstream |
|||
|
CopperLink™ Copper Ethernet Extenders |
|
# of
Ethernet Ports |
# of wire pairs
|
Max. Speed (Mbps)
|
Distance at Max. Speed
|
CopperLink™
Model |
|
2
|
1
|
N/A
|
2,625 ft/0.8 km
|
|
|
2
|
1
|
100
|
500 ft/0.15 km
|
|
|
4
|
4
|
45.6
|
4,600 ft/1.4 km
|
|
|
4
|
2
|
22.8
|
4,600 ft/1.4 km
|
|
|
2
|
1
|
15
|
2,953 ft/0.9 km
|
|
|
4
|
1
|
11.4
|
4,593 ft/1.4 km
|
|
|
2
|
1
|
10
|
4,265 ft/1.3 km
|
|
|
1
|
1
|
4.6
|
10,827 ft/3.3 km
|
|
|
1
|
1
|
2.3
|
16,404 ft/5.0 km
|
Applications
Workgroup Ethernet Extension Application
The Model 2173R multi-rate Ethernet Extenders are ideal for delivering Ethernet links to remote buildings that are beyond the 328-foot (100-meter) distance limit of Ethernet. 100 Mbps throughput eliminates bandwidth concerns previously experienced with other copper wired transmission technologies. By utilizing existing voice grade copper pairs the expense and hassle of installing low capacitance or fiber cable is no longer required.
Features
- Operates Over Twisted Pair—Reduces the cost and hassles of new installations. Utilizes installed voice-grade twisted pairs to eliminate the expense of fiber or Cat5e cabling.
- Plug and Play—No configuration or cable hassles during installation with auto-sensing 10/100, full or half duplex, and auto MDI-X Ethernet ports.
- Full-duplex data-line rate of 155 Mbps—Provides near fiber performance for bandwidth intensive applications.
- Ruggedized—Operating temperature of -40 to 85°C.
- Flexible installationWall-mount ready and an optional DIN rail mounting kit is available.
|
