Overview
Patton’s Model 3124 delivers affordable network access with downstream rates up to 24 Mbps. When used with Patton’s OnSite™ 3101 CPEs, the ForeFront™ 3124 offers a complete solution for fault tolerant IP connectivity or on-demand, high-bandwidth IP services that provide streaming video, online gaming, multimedia applications, and multiple video channels on a single network connection to MxU environments (hotels, lodges, hospitals and more).
The 3124 offers complete ADSL, ADSL2 and ADSL2+ support including extended range operation, and enhanced download and upload speeds. The ForeFront™ 3124 DSLAM includes the intelligence needed to function as a complete single IP DSLAM, thereby providing unparalleled integration and fault tolerance in network deployments.
The ForeFront™ 3124 has 24 user-configurable ADSL/ADSL2/ADSL2+ ports with POTS splitters. The built-in POTS/ISDN splitter enables simultaneous life-line, always-on phone links and high-speed data over a single twisted-pair. The mini DSLAM’s traffic uplink is via an electrical 10/100/1000 Ethernet port.
The ADSL2+ IP DSLAM is designed with triple-play networks in mind. Reliable delivery of IP-based voice, video, and data services depend largely on the QoS metrics (configurable on a per-port basis). The Model 3124 supports IEEE 802.1p/Q VLAN priority classes. VLAN and VLAN priority ensure extension of subscriber VLAN networks. IGMP snooping maximizes efficient use of WAN bandwidth to detect and forward IP multicast traffic accordingly.
Applications

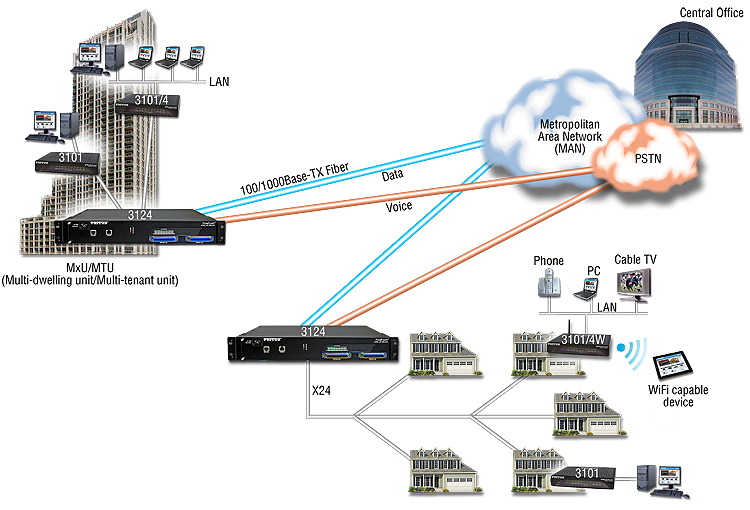

Data and Voice Over Existing Voice-Grade Twisted Pair
Patton’s Model 3124 delivers affordable network access with downstream rates up to 24 Mbps. When used with Patton’s OnSite™ 3101 CPEs, the ForeFront™ 3124 offers a complete solution for fault tolerant IP connectivity or on-demand, high-bandwidth IP services that provide streaming video, online gaming, multimedia applications, and multiple video channels on a single network connection to MxU environments (hotels, lodges, hospitals and more).
The 3124 offers complete ADSL, ADSL2 and ADSL2+ support including extended range operation, and enhanced download and upload speeds. The ForeFront™ 3124 DSLAM includes the intelligence needed to function as a complete single IP DSLAM, thereby providing unparalleled integration and fault tolerance in network deployments.
The ForeFront™ 3124 has 24 user-configurable ADSL/ADSL2/ADSL2+ ports with POTS splitters. The built-in POTS/ISDN splitter enables simultaneous life-line, always-on phone links and high-speed data over a single twisted-pair. The mini DSLAM’s traffic uplink is via an electrical 10/100/1000 Ethernet port.
The ADSL2+ IP DSLAM is designed with triple-play networks in mind. Reliable delivery of IP-based voice, video, and data services depend largely on the QoS metrics (configurable on a per-port basis). The Model 3124 supports IEEE 802.1p/Q VLAN priority classes. VLAN and VLAN priority ensure extension of subscriber VLAN networks. IGMP snooping maximizes efficient use of WAN bandwidth to detect and forward IP multicast traffic accordingly.
Applications
Data and Voice Over Existing Voice-Grade Twisted Pair
Features
- Built-in Triple Play Support—ADSL2+ high-bandwidth downstream with Multicast support, IGMP snooping, and QoS included
- Annex M—Additional upstream speeds to 3 Mbps accommodate symmetric VoIP traffic
- QoS—Per PVC traffic classification with shaping and policing; 802.1p VLAN priority; ToS/DiffServ stripping and priority queuing
- 24 ADSL2/2+ Ports—Right-size the deployment with the best port-per-DSLAM ratio. Built-in splitters included
- SNMP/HTTP Management—SNMP/HTTP manageable from any global location including attached CPE units
- Per-Port Configuration—To facilitate the provisioning and tailoring of services, ports are independently selectable to the individual DSL standard and required port speeds
|
