Uninterruptable Power Supplies

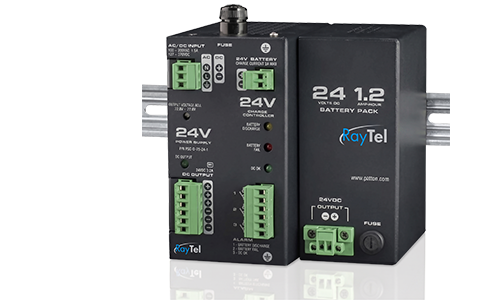

RayTel RT-UPS-DR24 Industrial Din Rail UPS System with AC to DC Power Converter, Battery, and Charger.

This DIN-rail mountable UPS system is an AC to DC Power Converter with integrated battery and battery charger delivering 24VDC battery backup providing reliable, short-term uninterruptible power for industrial networking and control equipment.

• Uninterruptable Power - Provides seamless transition to battery power during outages. Supports both AC or DC input power sources for installation flexibility.
• Integrated UPS System - Complete UPS solution combining AC to DC power supply, battery charger, and UPS controller in one unit.
• Amp Hour Options - Available with a 1.2- or 4.5-Amp Hour (Ah) batteries or bring your own battery.
• Power Protection - Protection against overloads, short circuits, over-voltage, and over-temperature conditions. Low output ripple suitable for sensitive communication and control electronics.
• Battery Management - Intelligent battery charging and maintenance with built-in battery testing functionality.
• Polarity Protection - Battery polarity protection prevents wiring-related damage.
• Serviceable - Field-replaceable sealed batteries modules to simplify maintenance.
• Monitoring - LED status indicators for power and battery condition.
• Diagnostics & Alarming - Alarm outputs for battery discharge and battery failure conditions. Relay contact outputs support integration with remote monitoring systems, SCADA systems, and alarm networks.
• Industrial Design - DIN-rail mounting compliant with standard T35 rails. Extended operating temperatures (-20˚C~+70˚C).
• Reliable - Fanless cooling through natural convection improves reliability. 100% full-load burn-in testing prior to shipment.
• Made in the USA - Designed and manufactured in the USA.

The RayTel RT-UPS-DR24 is a complete DC UPS system that combines an AC/DC power supply, battery charger, UPS controller and battery pack providing power backup capability into a single rugged and compact DIN-rail solution. It is designed to provide continuous, regulated 24VDC power to industrial networking, communications, and automation equipment while automatically maintaining battery backup readiness.

This fully integrated solution delivers uninterrupted DC power for critical industrial and networking equipment with diagnostic monitoring in a compact DIN-rail package.  The RT-UPS-DR24 protects communications and control systems from outages, brownouts, and power disturbances.

The system is designed to deliver a clean, regulated 24VDC power source to sensitive electronic equipment while continuously charging and monitoring an attached battery pack.  During any power interruption, the controller automatically transitions to battery operation without disrupting connected loads, ensuring uninterrupted operation of critical communications and automation infrastructure.

The UPS accepts AC or DC input power and incorporates short-circuit, overload, over-voltage, and thermal protection mechanisms for reliable operation in industrial environments. The integrated charger maintains proper battery condition and battery readiness, while built-in diagnostics provide status monitoring and alarm functions.

Because the UPS controller, charger, and power supply are integrated, deployment is significantly simpler than building a UPS system from separate components. This reduces installation complexity, panel space requirements, and overall system cost.

The Integrated 75W AC/DC UPS with Battery Backup provides a complete, industrial-grade power continuity solution for 24VDC systems. By combining a regulated power supply, smart battery charging, UPS functionality, and diagnostic monitoring into a single DIN-rail package, it keeps critical networking, telecommunications, automation, and security equipment running through power disruptions while simplifying installation and reducing total system cost.
