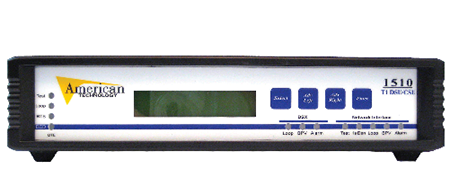

RayTel ATL-1510 Industrial T1/FT1 CSU/DSU with Optional DSX Drop & Insert Port

The Raymar-Telenetics TITAN 1510 series (ATL 1510 - 1/1X T1/FT1), originally from American Technology (ATL) are SNMP managed T1/FT1 CSU/DSUs that offer unequalled reliability and flexibility.

• Reliable T1 CSU/DSU - The ATL 1510 is a rugged, reliable and flexible T1/FT1 CSU/DSUs.
• Line Driver Modes - Each T1 port can operate in �Line Driver Mode� offering distances of up to 6000 feet. Consequently, the device can be used as a V.35 Short Range Modem, a T1 Short Range Modem or a T1 Repeater.
• Convenient LCD Configuration - Configuration can be done using a local LCD with push-button controls or a local Terminal Interface. Front panel controls use dome switches protected by a polycarbonate cover.
• SNMP Managed - Full SNMP Support via a separate SNMP management port or via remote access.
• V.35 With or without DSX-1 - Includes a single V.35 (M.34) data port with options to add a DSX-1 �Drop-and-Insert� port. Automatic Framing Conversion for D4 to ESF for DSX (Drop and Insert).
• Shared Capacity with DSX-1 - The DSX port enables the T1 line to share the bandwidth capacity between voice and data traffic.
• Ruggedized - Packaged in durable aluminum enclosures with steel front and rear panels, the unit is ideal for industrial environments. Options available for extended temperature ranges.
• Flexible Power - 120V AC power. Optional DC (-48VDC and +130HVDC.

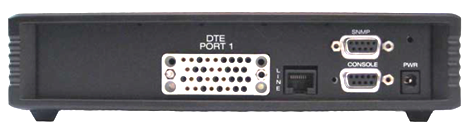

RayTel Titan 1510 Rear View

The Raymar-Telenetics TITAN 1510 series of SNMP managed T1/FT1 CSU/DSUs provide unequalled reliability and flexibility. The 1510-1 and 1510-1X models are available in standalone or rack mount chassis.  The 1510-1 is a single port model which includes a single V.35 (M.34) data port. The 1510-1X adds a DSX-1 “Drop-and-Insert” port. This DSX port allows you to configure your T1 to share the bandwidth capacity. It is perfect for applications like mixed voice and data traffic, allowing you to get the best from your T1 based service. Whether you are sharing the T1 for PBX and router traffic or T1 based video and SNA, the 1510 will bring it’s wide array of features to support your application.

INDUSTRIAL STRENGTH

The 1510-1 and 1510-1/1X are packaged in aluminum enclosures with steel front and rear panels, providing a durable enclosure for industrial environments. Front panel controls use dome switches protected by a polycarbonate cover. We also offer high temperature and humidity enhancements.

3 MODELS

The standard 1510-1 and 1510-1/1X are operated with 117VAC power. For applications requiring DC power or high temperature conditions, the -48VDC and +130HVDC models operate in temperatures up to 70°C. (These models are perfect for utility companies with SCADA traffic or test applications.)

MANAGEMENT

These popular models feature separate ports for SNMP and local or remote maintenance. The 1510 series delivers the monitoring of ports, network facility and remote sites with critical information displayed with date and time stamped alarm information. Complete SNMP management with real time alarm message delivered to SNMP tools like ATwork and InfoVista as well as managers like HP  Openview, IBM Netview, and SNMPc.
