RayTel DSP9612 Telenetics Industrial Flash-Poll Analog Modem DSP9612FP, DSP9612-LV and DSP9612RM

This Analog Leased Line Modem delivers super-fast training times and low throughput delay, making it ideal for long-range and multi-point industrial communication.

• Ideal for Leased Lines - Designed for Leased Line, Private Line or Private Wire Industrial applications.
• Optimized for Multi-Drop - Special Flash-Poll" features enable fast data transmission in multi-point operation where multiple devices quickly transport data with minimal delay. Supports a large number of drops.
• SCADA Perfect - Ideal for industrial automation applications such as utility monitoring where real-time or near real-time communication is crucial.
• Dual Mode - Supports 9600/4800 bps, and Bell202T FSK modulation 0-1800 bps.
• State of the Art Legacy - Fast train modem equalizer with 23 msec RTS/CTS delay. DSP design with automatic adaptive equalizer.
• Surge Protection - Leased-line interface protected with heavy-duty surge protection.
• Flexible Mounting Options - Rack Mount DIN Mount or Wall Mount options available. Rack Card versions are installed in the Raymar-Telenetics RM16M Rack, RMX Shelf and Motorola/UDS RM16M Universal Data Shelf.
• AC or DC Power - Powered by 85-265VAC, 85-400VDC.

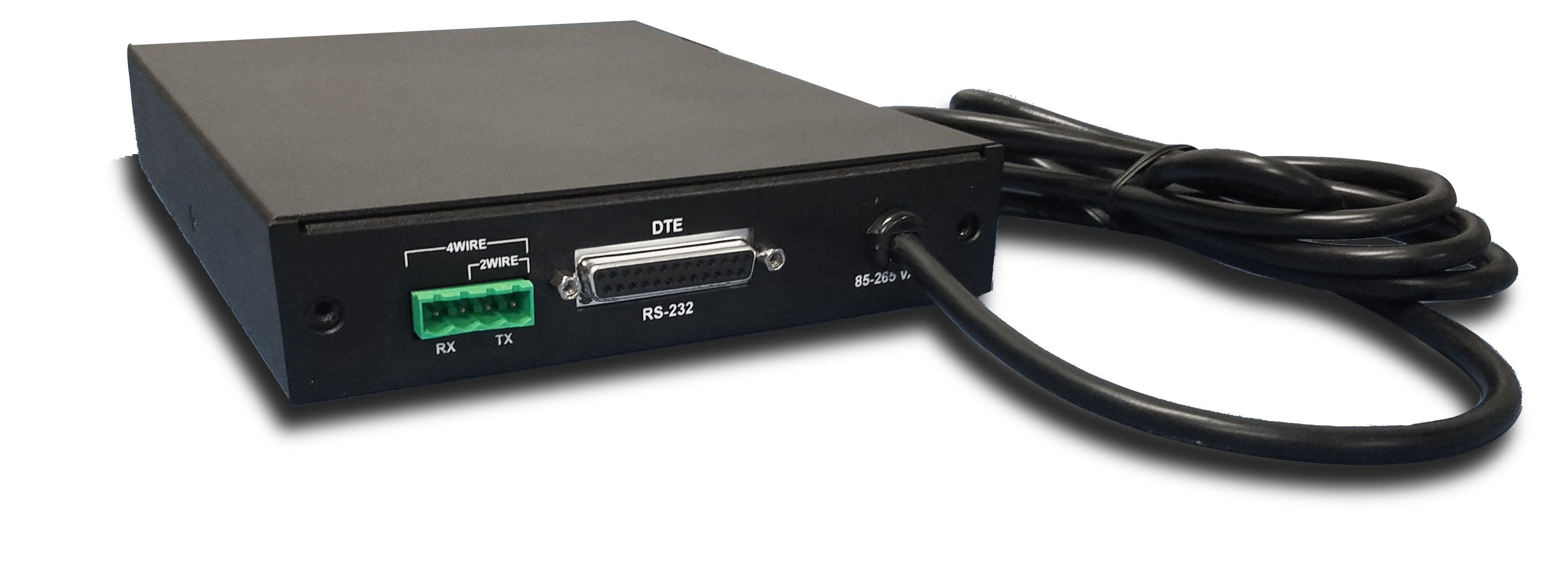

The DSP9612FP offers a DB-25 Serial Port, Terminal Block for 2/4 wire line connectors and an internal wide range switching power supply from 85 to 265V, 50/60 Hz, or 85 to 400VDC. The DSP9612-LV offers a low voltage DC power from 10 to 53 volts DC.

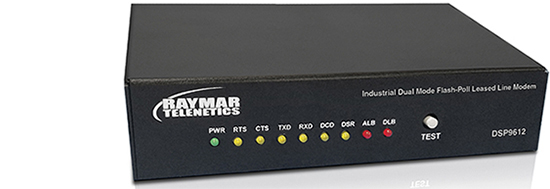

The Raymar-Telenetics FlashPoll DSP9612FP is a dual mode, full-featured 9600 Fast Poll and Bell 202T leased line modem with the fastest training time in the industry: 23 msec RTS/CTS delay. Ideal for utility and industrial automation multi-dropping applications, including SCADA systems, traffic automation, and oil & gas automation projects where an unlimited number of drops is desirable.

The DSP9612FP is a standalone modem designed for 4-wire, full-duplex, or 2-wire, half-duplex operation over a voice-band leased line or private wires. The modem design utilizes the latest digital-signal processing (DSP) technology to achieve high performance.

COMPATIBILITY

In FlashPoll Mode (9600/4800 bps), the DSP9612FP employs Raymar-Telenetics’ proprietary modulation and encoding scheme to achieve fast modem training time. In Bell 202T Mode, the modem is end-to-end backward compatible with Bell 202T (0 - 1800 bps) modems.

OPTIMIZATION & CAPABILITY

Ideal for systems where fast response, short training time, and low throughput delay is required, FlashPoll is optimized for fast receiver equalizer training and extremely low throughput delay.

RACK MOUNT CARDS AND CHASSIS

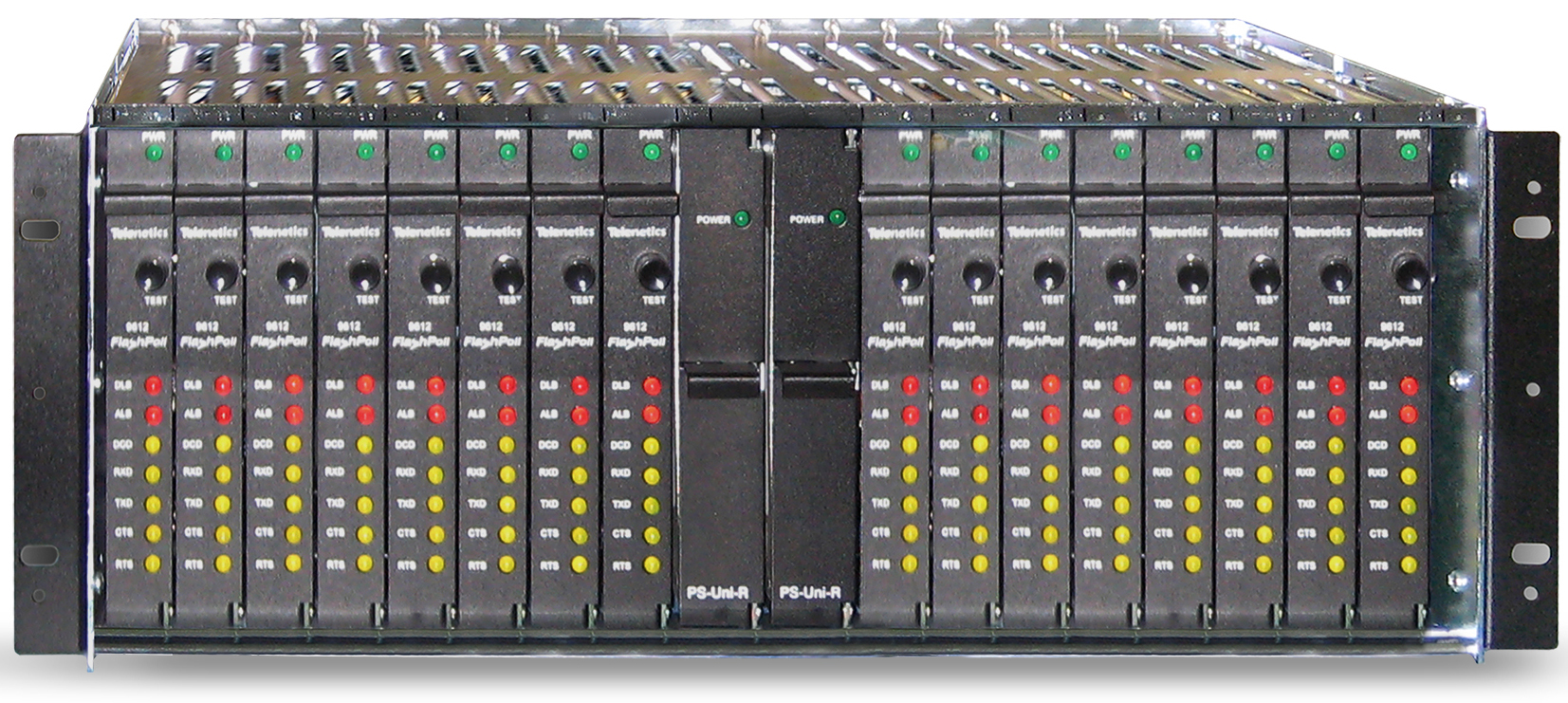

The universal Rack Card unit (DSP9612RM) installs in the Raymar-Telenetics RM16M Rack, RMX Shelf and/or the Motorola/UDS RM16M Universal Data Shelf.

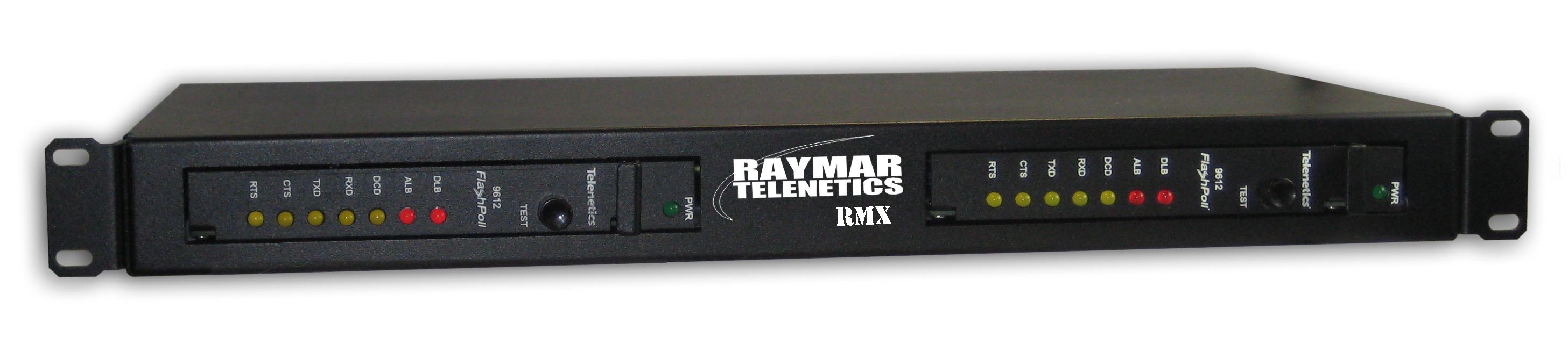

The DSP9612RM can also be installed in the Raymar-Telenetics RMX-2xx, which supports up to 2 cards installed side-by-side in a 1U rack mount enclosure.
