Patton IGM Series Industrial Grade V.92

Overview

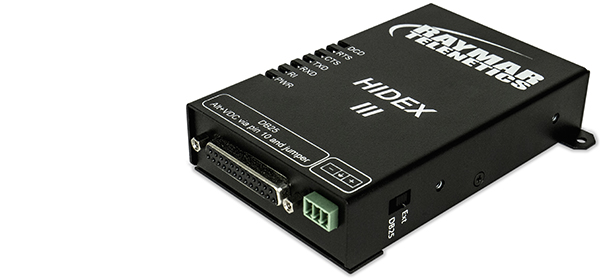

The Raymar-Telenetics Hidex III V.92 Industrial Grade Modem is the most versatile model for dial up or leased analog telephone line communication.

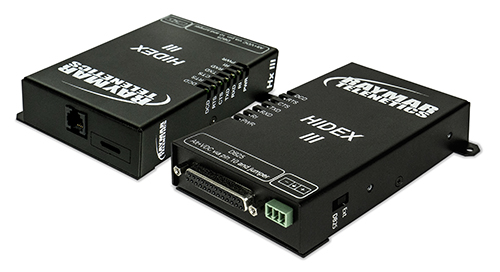

The Hidex HXIII56 offers up to 56K dial up or leased line connectivity for Industrial Use Cases. Directly connected to RTUs, traffic controllers, variable message signs or any number or other applications, they communicate at 300bps to 56Kbps over analog telephone lines. They packaged in rugged metal enclosures and designed for extended temperature operation (-40°C to +85°C). All HX models have high-voltage surge protection on the telephone lines.

The AC power converter on the stand-alone, delivers 5VDC from 100 to 120VAC, 50-60Hz with Worldwide safety approvals. A DC version is available with an optional locking connector to prevent vibration disconnects. A wide voltage range of internal DC power models are optional. Specify your choice of 9 to 72VDC or external 125 to 240VDC adapter.

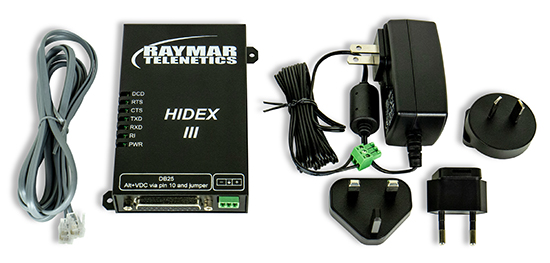

The Hidex III ships complete with an External Power Supply accommodating standard plugs for connection to various regional power outlets.

Features

Dial-Up at 56K - Using V.92 supporting 56Kbps on dial up phone lines.
Leased-Line - Supports 2-wire leased line links for long haul connectivity.
Industrial Grade - Support extended operating temperatures -40�C to +85�C. Housed in a rugged metal case with mounting tabs.
Din Rail - Din Rail mountable using a clip.
Fast Connect - Fast POS V.22bis Fast connect.
Data Compression - V.44 & V.42bis data compression and V.42 Error correction.
Surge Protection - HX Telco line surge protection.
Smart & Secure - Intelligent DAA detects line status. Call back security.
Energy Efficient - Low power/sleep mode saves power.
Configurable - Extended AT Commands & NVRAM.
Flexible Power Options - Native supply voltage is 5VDC. Optional DC power models 9-18, 18-36, 36-72 or 125-240 AC or DC. Optional selectable power via RS232 connector.
Global Compliance - Telecom approved in over 50 countries.

Ordering

#	Model #	Description	Availability
1	IGM-HXII56RM	IGM, V.92, Serial 56K, -40 +85C, +Nvram, Myriad Rm	Pre-Order Available
2	IGM-HXII56TM	IGM, V.92, Serial 56K, -40 +85C, 110Vac/ 5Vdc +Nvram, Metal Case	General Availability
3	IGM-HXII56TM/BL	IGM, V.92, Serial 56K, -40 +85C, 110Vac/ 5Vdc +Nvram, Pwr Term	Pre-Order Available
4	IGM-HXII56TM-A	IGM, V.92, Serial 56K, -40 +85C, 9-18 Vdc +Nvram, Metal Case	Pre-Order Available
5	IGM-HXII56TM-A/BL	IGM, V.92, Serial 56K, -40 +85C, 9-18 Vdc +Nvram, Pwr Term	Pre-Order Available
6	IGM-HXII56TM-B	IGM, V.92, Serial 56K, -40 +85C, 18-36 Vdc +Nvram, Metal Case	Pre-Order Available
7	IGM-HXII56TM-B/BL	IGM, V.92, Serial 56K, -40 +85C, 18-36 Vdc +Nvram, , Pwr Term	Pre-Order Available
8	IGM-HXII56TM-C	IGM, V.92, Serial 56K, -40 +85C, 36-72 Vdc +Nvram, Metal Case	Pre-Order Available
9	IGM-HXII56TM-C/BL	IGM, V.92, Serial 56K, -40 +85C, 36-72 Vdc +Nvram, , Pwr Term	Pre-Order Available
10	IGM-HXIII-202TARS	IGM, 202T, Auto Rts, Serial, 1.2K, 110Vac/5Vdc	Pre-Order Available
11	IGM-HXIII-202TARS-USB	IGM, 202T, Auto Rts, Usb, 1.2K, 110Vac/5Vdc	Pre-Order Available
12	IGM-HXIII56TM	IGM, V.92, Serial 56K, -40 +85C, 110Vac/ 5Vdc +Nvram, Metal Case	Pre-Order Available
13	IGM-HXIII56TM-A	IGM, V.92, Serial 56K, -40 +85C, 9-18 Vdc +Nvram, Metal Case	Pre-Order Available
14	IGM-HXIII56TM-A-D	IGM, V.92, Serial 56K, -40 +85C, 9-18 Vdc +Nvram, Metal Case, Din Clip	Pre-Order Available
15	IGM-HXIII56TM-B	IGM, V.92, Serial 56K, -40 +85C, 18-36 Vdc +Nvram, Metal Case	Pre-Order Available
16	IGM-HXIII56TM-B-D	IGM, V.92, Serial 56K, -40 +85C, 18-36 Vdc +Nvram, Metal Case, Din	Pre-Order Available
17	IGM-HXIII56TM-C	IGM, V.92, Serial 56K, -40 +85C, 36-72 Vdc +Nvram, Metal Case	Pre-Order Available
18	IGM-HXIII56TM-C-D	IGM, V.92, Serial 56K, -40 +85C, 36-72 Vdc +Nvram, Metal Case, Din	Pre-Order Available
19	IGM-HXIII-56TM-D	IGM, V.92, Serial 56K, -40 +85C, 110Vac/ 5Vdc +Nvram, Metal Case, Din Mount	Pre-Order Available
20	IGM-HXIII56TM-D	IGM, V.92, Serial 56K, -40 +85C, 110Vac/ 5Vdc +Nvram, Metal Case, Din Mount	Pre-Order Available
21	IME-HXII56	Raymar, Fp, V.92, Serial 56K, -40 +85C, 48-240Vac/Vdc	Pre-Order Available
22	IME-HXII56-LV	Raymar, Fp, V.92, Serial 56K, -40 +85C, 9-36Vdc	Pre-Order Available
ACCESSORIES
23	IGM-HIDEX/DIN	IGM, Hxii,Din Rail Mounting Kit	Pre-Order Available
24	IGM-HIDEX/HV_DIN	IGM, Hxii, Hvdc Din Rail Mounting Kit	Pre-Order Available
25	IGM-HVDC-PS	IGM, Power Supply, Hidex, Ac/Dc 90-240	Pre-Order Available
26	IGM-HXIII-DIN	IGM, Kit, Hxiii Din Mount	Pre-Order Available

Dial-Up Modems
RayTel IGM Series Industrial Grade V.92 Dial & 2-Wire Leased Line Modem. Din-Rail and Rack Mountable.

This Industrial Grade V.92 Modem is packaged in a Rugged Metal enclosure that can be Rack or Din Rail Mounted and supports Extended Operating Temperatures.
