Dial-Up Modems
RayTel Motorola 326X Dial, Leased & Private Line (2/4 wires) V.34 Modem, RS-232 or RS-530/V.35 with Sync. Data Compression

The Motorola 326X is part of the “Sunrise Series” Modems acquired by Telenetics from Motorola. This V.34 standard modem is idea for all dial and leased line applications offering optimum performance with clear channel speeds to 33.6Kbps in synchronous and 115.2Kbps in asynchronous environments.

• V.34 Fast - 326XFast delivers clear channel speeds to 33.6Kbps synchronous and 128Kbps asynchronous. 326XFast-SDC delivers up to 128Kbps for both sync/async over standard voice grade analog lines.
• Multiple Command Sets - AT, LPDA-2, and V.25bis command set automatic calling interfaces via front panel or network management system.
• ITU V.8 Automode - ITU V.8 Automode allows for automatic selection of modulation types and speed on call connection.
• Error Correction - V.42 error correction supports CCITT LAP-M and MNP class 4.
• Adaptive Rate System (ARS) - - Adaptive Rate System (ARS) continuously adapts modem rates to optimize throughput independent of prevailing line conditions.
• Remote Configuration - Easy use of Remote Configuration (via network management, front panel, and AT commands) allows network to be utilized to its maximum potential.
• Security - Password & Callback security controls unauthorized access.
• Universal Power - Available with 115/230 VAC or -48 VDC (Modular Nest Only).

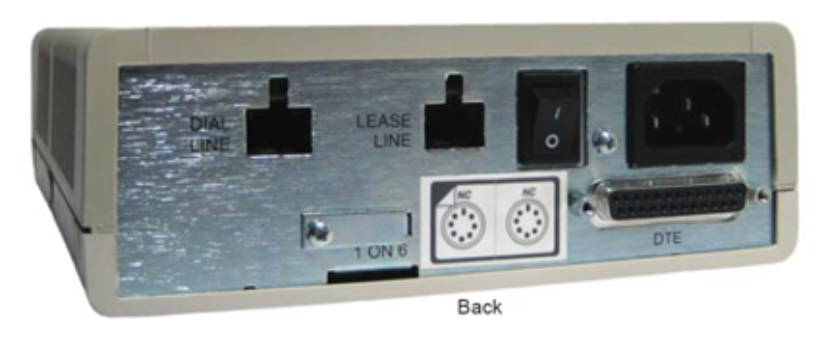

Motorola 326X Rear View

The Raymar-Telenetics 326XFast V.34 technology offers optimum performance over any given telephone circuit with clear channel speeds to 33.6Kbps in synchronous and 115.2Kbps in asynchronous environments. The V.34 standard combined with Raymar-Telenetics reputation of quality and reliability, makes this family of network managed standalone and rackmount modems, ideal for all serious dial and leased line applications.

The 326XFast modem family also incorporates Synchronous Data Compression (SDC) as a standard feature. The unique SDC feature combined with V.34 delivers up to 128Kbps performance synchronous traffic over standard voice grade analog lines.

APPLICATIONS

Accelerated speeds make this product family ideal for router to router and LAN internetworking applications, SNA networks, X.25 networks, disaster recovery, as an alternative to digital services, dial backup and more.

Whether the application requires dedicated bandwidth or bandwidth on demand, SDC provides the best throughput for all HDLC/SDLC environments.

MODULATION

The Raymar-Telenetics V.34 Sunrise Series modems incorporate the very latest in modulation technologies which includes:

ØV.8 standard modem initialization

ØLine Probing

ØPre-Coding

ØAdaptive Power Control

ØMulti-dimensional Trellis Coding

ØAdaptive Pre-Emphasis

These technologies give users the best transmission speeds possible. These technologies are critical for successful performance at 33.6Kbps speeds for users dialing into a network where phone line quality may be less than optimum.

326XFast delivers clear channel speeds to 33.6Kbps synchronous and 128Kbps asynchronous.

326XFast SDC delivers up to 128Kbps for both sync/async. over standard voice grade analog lines.
