Dial-Up Modems

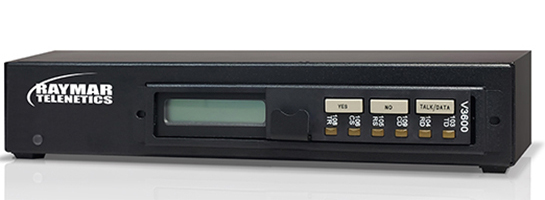

RayTel Motorola V.3600 V,29/V.32/V.34 Dial/Leased Line (2/4-Wire) Modem, RS-232 Async, and Sync, RM16 compatible.

This V.34 Modem is the 3rd Incarnation of the iconic Motorola V.3600, repackaged in a rugged metal enclosure for industrial communications in the Energy and Transportation markets. Supporting 2 and 4 wire operation, the unit is ideal for multi-drop deployment.

• Standards-based Modulation - Supports a Wide Range of ITU standards including V.34, V.32bis, V.32, V.22bis, V.21, Bell 212A and Bell 103.
• Advanced Transmission Technology - Incorporates technology to enhances performance on poor on lines including echo cancellation, automatic adaptive line equalization, trellis coding, adaptive transmit power selection, constellation shaping, and nonlinear encoding and precoding.
• Easy to Use - The V.3600 LCD and Push-Button Keys offers fingertip control and configuration and the ability to scroll through a complete set of menu options.
• Full AT-Commands - V.3600 is also easily configured by AT commands or by the remote configuration feature. Nine preset factory option configuration sets simplify set up for most standard applications.
• Remote Configuration Option - Optional setting of a remote unattended modem can be changed over the phone line; password protected security.
• Great for Fax - High speed fax allows communication with any ITU-T Group III compatible fax devices.
• Automatic Rate Adaption - ITU-T V .8 compliant auto-mode ensures connection at the highest common rate. Automatic Rate Adaption (ARA) dynamically adjusts data rate backward or forward to conform to various line conditions and multiple levels of security.
• Automatic Callback - Password with automatic callback, user programmed. Capacity 50 passwords / 50 phone numbers.
• Dial Backup of Leased Lines - Dial backup switches to a dial line if the leased line connection fails, automatically returns to leased line operation when restored.
• Error Correction and Data Compression - Asynchronous error correction/data compression (ITU-T standard V.42 bis).
• Auto Everything - Autodial, Auto Answer, Call progress indication, software based volume control.
• Flexible Mounting Options - Available both as a standalone unit and as a rackmount card for RM16M enclosure.

The RayTel Motorola V.3600 is a high-performance V.34/V.42 bis data and fax modem. It allows users to transmit critical applications at 33.6 kbps in synchronous and asynchronous environments and is capable of throughput rates up to 230.4 kbps.

DATA MODEM OVERVIEW

Compliant with ITU-T V.34, the V.3600 incorporates advanced technology that enhances operation on less-than-ideal transmission lines. These include echo canceling, automatic adaptive line equalizing, trellis coding techniques, adaptive transmit power selection, constellation shaping, and nonlinear encoding and precoding.

The V.3600 LCD front panel gives you interactive fingertip control of option selection and modem configuration. The 32-character display and three pushbutton keys let you scroll through a complete menu of option choices, displaying the currently selected options and prompting you for changes. The V.3600 is also easily configured by AT commands or by the remote configuration feature. Nine preset factory option configuration sets simplify set up for most standard applications.

FAX MODEM OVERVIEW

The V.3600 is fully ITU-T Group III compatible to let you communicate with any other Group III compatible fax device. The V.3600 conforms to the EIA-578 standard interface between a fax modem and a computer with fax software. When used with an EIA Class 1 software package, the V.3600 can send and receive a fax document at 14400, 9600, 7200, 4800, or 2400 bps. T.30 error correction ensures your fax will arrive at its destination without transmission errors.

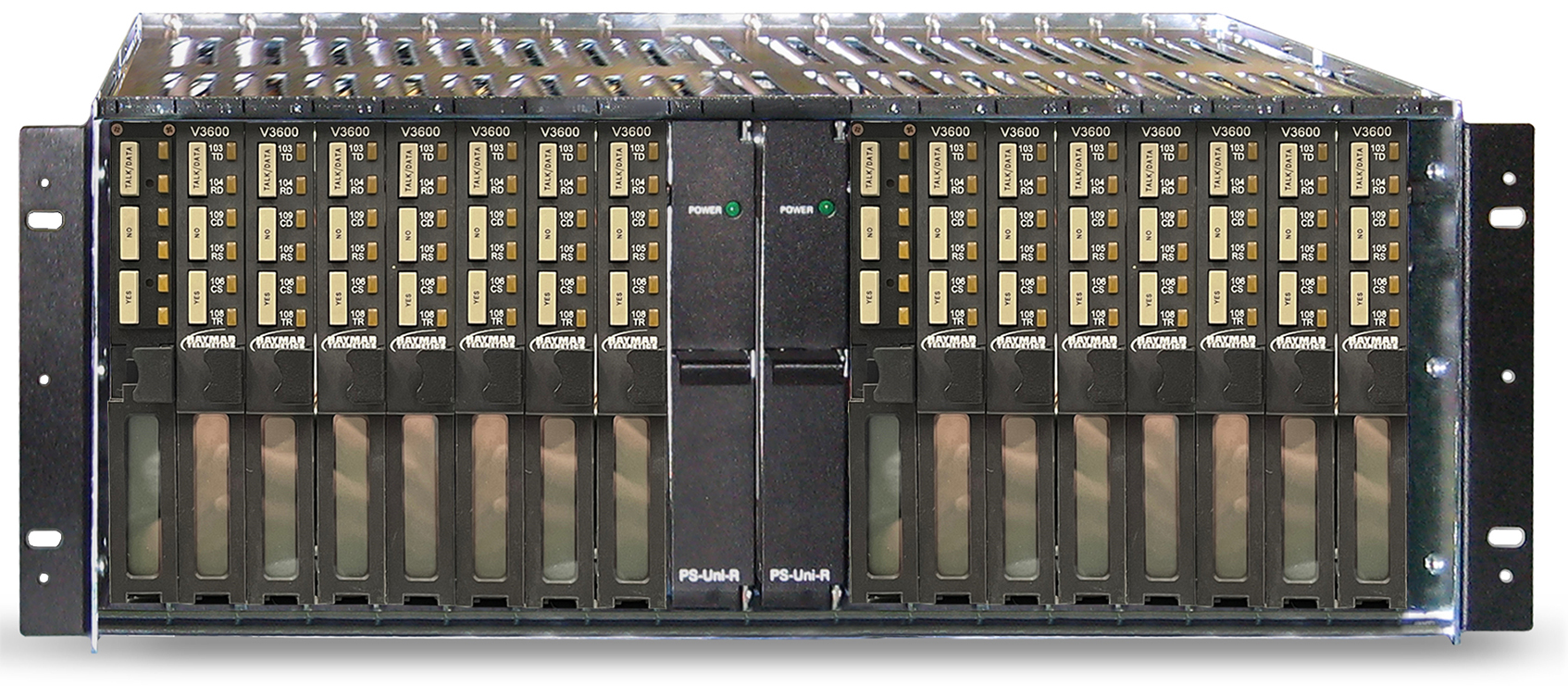

RM16M RACK SYSTEM

RayTel RM16M Industrial Modem nest offers superior value over a wide range of SCADA, point-to-point, and multi-drop applications. RM16M Nests feature modular, redundant power supplies, multiple backplane configurations and the ability to mount in either a 19” or 23” cabinet using a reversible bracket. The RM16M supports the V.3600 modem series, MR64 CSU/DSU, all FT100 CSU/DSU, as well as the ATL-6410R DSP9612 and MOT202T modems.
