RayTel Myriad MD Modular Design Industrial Modem System. Modem Cards, Racks and Mounts.

Overview



THE MODEMS

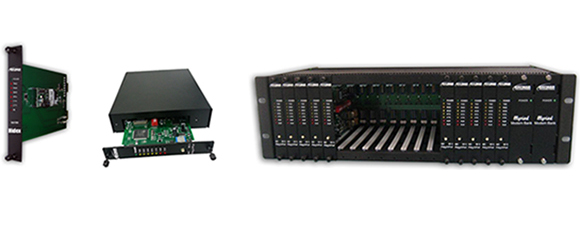

The Myriad MD (Modular Design) includes a series of modem cards that fit into slots of an 18 slots rack or into an Industrial Modem Enclosure. The modem cards include a wide range of dial-up, leased-line or pilot-wire modems.

	Modem Product Options
	Myriad MD202T	Myriad MD14.4
	0-1200bps Over Voice Grade Leased Lines Point-to-Point or multi-point -48 to 220V AC/DC Power Supply -9 to -36VDC Optional Power Supply IEC801-4 Surge Protection -40°C to +85°C Operating Temp	2.4, 9.6, 14.4 & 28.8 kps Modems Fast Poll Digital 9.6kps (MIU9.6FPD only) 48 to 240VAC/DC Power Supply IEC801-4 Surge Protection -40°C to +85°C Operating Temp
	Myriad MD9612FP	Myriad IGM-HXII56RM
	Dual Mode: 9600/4800 bps and FSK, Bell202T 0-1800bps Designed for high speed or an unlimited number of drops Fast train modem equalizer with 23 msec RTS/CTS delay DSP design with automatic adaptive equalizer Leased line interface protected with heavy-duty surge protection	Dial up phone lines up to 56Kbps 2 Wire leased line Fast POS V.22bis Fast connect HX Telco line surge protection V.44 & V.42bis data compression V.42 Error correction Intelligent DAA detects line status Extended AT Commands & NVRAM -40°C to +85°C Operating Temp

THE INDUSTRIAL MODEM ENCLSOURE (IME)

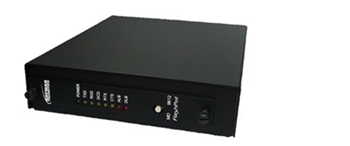

The Myriad IME is an enclosure designed to house Myriad MD modems for use in “Remote” locations. The same cards used in the Rack System can be field deployed into the IME.

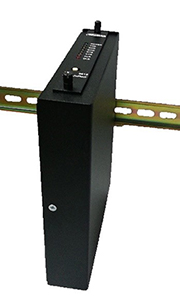

The IME can be used as a Standalone, Wall Mount, Din Rail flat-mount, Din Rail side-mount or with a variety of other mounting options including a 2-unit 19" rack shelf.


The IME is available with various power supply options including a 9 - 36VDC or 48 - 240 VAC/VDC and comes with a standard RS232 (DB25 DTE port) and a Screw Terminal for the analog interface.

THE RACK MOUNT CHASSIS

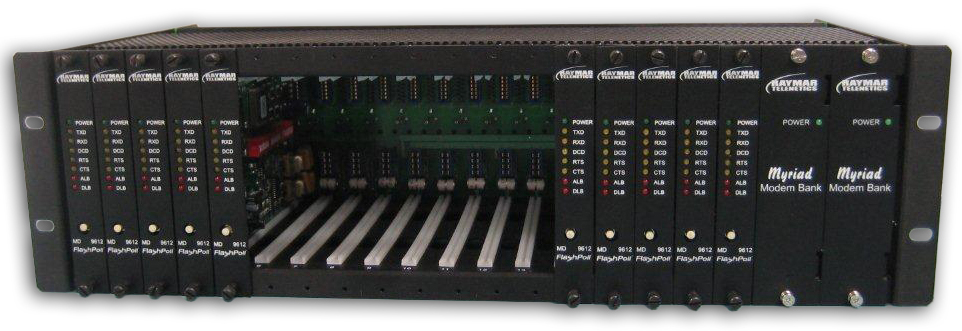

The Raymar-Telenetics Myriad Rack Mount Modem Bank is an industrial grade, 19” 3U (5.25”H) chassis with slots for 18 modem cards and 2 power supply cards. The eighteen slots are provided for front-loading, hot-swappable modem cards. Each card can accommodate any one of the Raymar- Telenetics’ (MD) modem cards listed on the modem table.



The Myriad can be powered from a wide range of AC or DC voltages. Two power supply cards can be installed to provide automatic back up in the event the primary power supply fails. A single power supply card will power all 18 modem cards. A second power supply card, if installed, provides automatic backup in the event of a failure of the primary power supply.

The Myriad will operate in temperatures from -20° to 85° C and is surge protected on both the power and analog lines.

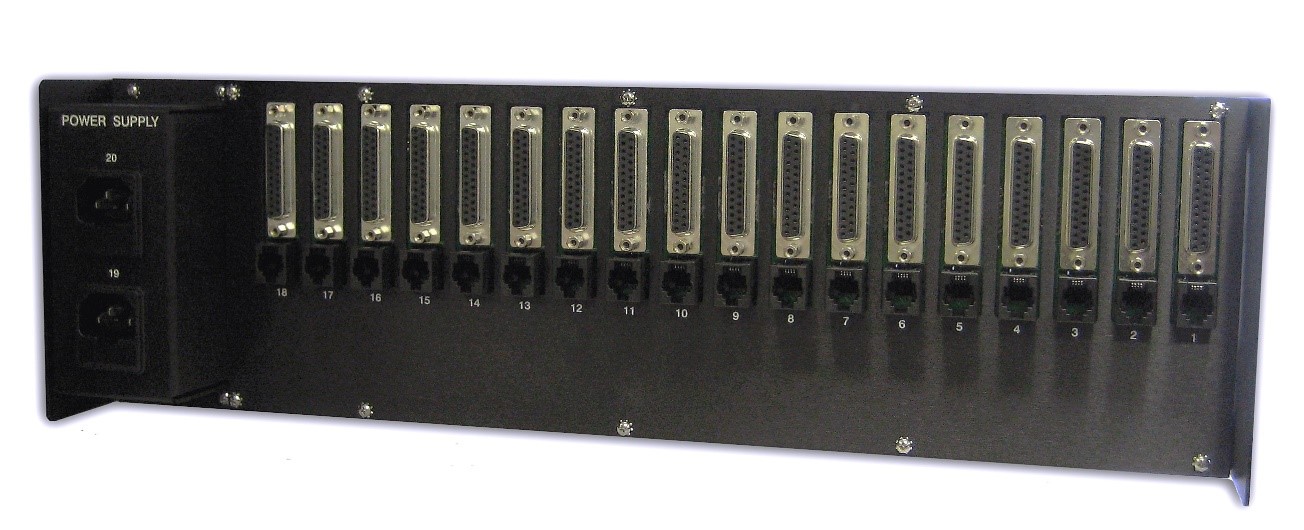

The backplane connectors are standard DB25F serial ports and RJ 11 analog ports. Power connectors are screw terminals for DC and fused sockets (IEC 320) for AC.

Features

• Flexible Modular Form Factor - A standard form factor modem card is packaged for either central or remote locations reducing the need for multiple spares.
• Central & Remote - Takes advantage of the wide range of universal modem cards supported by the Myriad Modem Nest (Central) and IME Enclosure (Remote) enabling easy installation and maintenance.
• Wide Range of Modems - A wide range of modem cards ranging from BELL 202T (1200bps) to V.92 (56 Kbps), Dial and Leased Line, offer unprecedented support for all applications. Each modem offers a full array of status LEDs.
• Purpose Built - Specially designed for substation or remote communications use cases. Uses standard terminal posts for line connection.
• High Density Rack - The Myria High-Density Rack for Central installation supports up to 18 Modems.
• Single Card Remote - The Myriad Industrial Modem Enclosure (IME) supports Standalone, Wall-Mount, or DIN Rail installation.
• Flexible Power Options - Offering multiple power options, 9 - 36VDC or 48 - 240 VAC/VDC. Single or Dual Power Supplies (Auto Back Up).

Ordering

# Model # Description Availability 1 IME Raymar, Fp, Industrial Modem Enclosure, 48-240Vac/Vdc, Myriad Modems Pre-Order Available 2 IME-14.4L Raymar, Fp, V.32Bis,14.4Kbps,Leased Line,48-240Vac/Dc Pre-Order Available 3 IME14.4L-LV Raymar, Fp, V.32Bis,14.4Kbps,Leased Line,9-36Vdc Pre-Order Available 4 IME-14.4-LV Raymar, Fp, V.32Bis,14.4Kbps,Dial-Up,9-36Vdc Pre-Order Available 5 IME-202T Raymar, Fp, Bell202T,1200Bps,Leased Line,48-240Vac/Dc Pre-Order Available 6 IME-202T-DIN Raymar, Fp, Bell202T,1200Bps,Leased Line,48-240Vac/Dc, Din Mount Pre-Order Available 7 IME-202T-LV Raymar, Fp, Bell202T,1200Bps,Leased Line,9-36V/Dc Pre-Order Available 8 IME-202T-LV-DIN Raymar, Fp, Bell202T,1200Bps,Leased Line,9-36V/Dc, Din Mount Pre-Order Available 9 IME-DIN Raymar, Kit, Ime Din Mount Pre-Order Available 10 IME-LV ATL, Fp, Industrial Modem Enclosure, 9-36Vdc, Myriad Modems Pre-Order Available 11 IME-V23 Raymar, Fp, V23,1200Bps,Leased Line,48-240Vac/Dc Pre-Order Available 12 IME-V23-DIN Raymar, Fp, V23,1200Bps,Leased Line,48-240Vac/Dc, Din Mount Pre-Order Available 13 MD14.4 Telenetics, Myriad,V.32Bis,14.4Kbps,V.22,Bell212A,Bell103,Dial-Up Pre-Order Available 14 MD14.4L Telenetics, Myriad,V.32Bis,14.4Kbps,V.22,Bell212A,Bell103,Leased Line Pre-Order Available 15 MD202T Telenetics, Myriad,Bell202T,1200Bps,W/Loop Back Pre-Order Available 16 MD202T-01 Telenetics, Myriad,Bell202T,1200Bps,W/Loop Back,Fast Turn-Off,(Custom) Pre-Order Available 17 MDR Telenetics, Myriad,Chassis,18 Slot,Ac Power Backplane Assembly, No Psu Included. Pre-Order Available 18 MDR-00 Telenetics, Chassis,18 Slot, Myriad, Redundant 9-36Vdc Psu Pre-Order Available 19 MDR-01 Telenetics, Chassis,18 Slot, Myriad, Redundant 38-56Vdc Psu Pre-Order Available 20 MDR-02 Telenetics, Chassis,18 Slot, Myriad, Redundant 90-140Vac Psu Pre-Order Available 21 MDR-02-DC Telenetics, Chassis,18 Slot, Myriad, Redundant 90-140Vdc Psu Pre-Order Available 22 MDR-03 Telenetics, Chassis,18 Slot, Myriad, Redundant 175-265Vac Psu Pre-Order Available 23 MDV23 Telenetics, Myriad,V23 Module Pre-Order Available ACCESSORIES 24 IME-RM1U Raymar, Kit, 19" 1U Shelf, 2 Ime Enclosures Pre-Order Available 25 IME-RM1U-BP Raymar, Ime Rm1U Blank Plate Pre-Order Available 26 IME-WM1 Raymar, Kit, Wall Mount Plate, Ime Pre-Order Available 27 MDBP-M Telenetics, Myriad,Blank Panel For Modem Card Slot Pre-Order Available 28 MDBP-P Telenetics, Myriad,Blank Panel For Power Supply Card Slot Pre-Order Available 29 MDP-00 Telenetics, Myriad,9-36Vdc Power Supply With Front Plate Pre-Order Available 30 MDP-01 Telenetics, Myriad,38-56Vdc Power Supply With Front Plate Pre-Order Available 31 MDP-02 Telenetics, Myriad,90-140Vac,50/60Hz˜Power Supply With Front Plate Pre-Order Available 32 MDP-03 Telenetics, Myriad,175-265Vac,50/60Hz˜Power Supply With Front Plate Pre-Order Available
