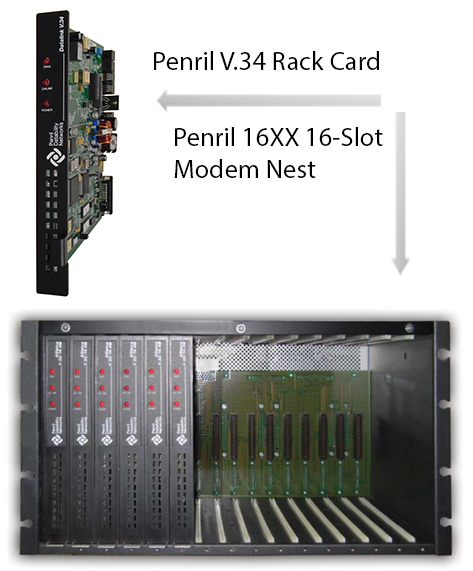

RayTel Penril 3428 and 3192 Dial/Leased Line Modem (V.26/V.29/V.32/V.34), Async./Sync. with RS-232

The Original and Iconic Penril V34/V32 modem series uses DSPs to deliver super-fast, highly reliable and flexible data communication links for serial networking.

• Penril Quality - The original ASIC/DSP based high performance V.34/V.32 modem.
• Dial-Up & Leased Line - High speed performance on 2- or 4-wire unconditioned leased lines or dial-up PSTN.
• Best Performance - High performance Digital Signal Processing provides fast, flexible communications, 33.6Kbps to 300bps with DTE speeds to 230Kbps and support for 14.4Kbps fax traffic.
• Data & Fax - Universal, multimode, multispeed data and fax modems.
• Advanced Diagnostics - Supports advanced features such as V.54 diagnostics to maximize network uptime.
• Easy to Install - Rapid set-up for both local and remote devices.
• Status Reporting - Continuous Data Terminal Equipment (DTE) and telephone line status reporting and comprehensive diagnostics.
• Fax Interop - Compatible with Group 3, Class 1 and Class 2 fax and supports multiple modulation standards and speeds for fax transmission.
• Failover - Supports automatic dial backup for leased line and dial applications.
• Secure - Multiple levels of network security.

The Raymar-Telenetics Penril V.34 modem operates at speeds up to 33.6Kbps over the standard Public Switched Telephone Network (PSTN) in accordance with ITU-R V.34 recommendation and over 2- or 4-wire unconditioned leased lines.

Call setup is accommodated by either ITU-R V.8 or V.25 procedures. Channel probing by the Penril V.34 automatically conditions the unit for maximum throughput and performance. Asymmetrical connection data rates allow maximum throughput when channel directional characteristics differ. The Penril V.34 provides fallback rates in Accordance with the V.34 recommendation to accommodate channel limits: 33.6K, 28.8K, 26.4K, 24.0K, 21.6K, 19.2K, 16.8K, 14.4K, 12.0K, 9600, 7200, 4800, 2400, 1200, 600, and 0-300 bits per second (bps).

COMPATIBILITY & INTEROPERABILITY

The Raymar-Telenetics Penril V.34 will fall back to non-V.34 modes to connect with installed base V.32terbo, V.32bis, V.32, V.22bis, Bell 212A, V.22, V.21, and V.23 modems. Also, the Penril family of modems support ITU-T V.13 for half-duplex simulation to work with those systems already configured for half-duplex modems. The V.29 Fast Train (FT) mode is available for multidrop applications on all Penril modems.

FAX TRANSMISSIONS

The Raymar-Telenetics Penril modem family is compatible with Group 3, Class1, and Class 2 fax and supports multiple modulation standards and speeds for fax transmission, including:

ØITU-T V.17 at 14.4K, 12.0K, 9600 & 7200bps

ØITU-T V.29 at 9600 & 7200 bps

ØITU-T V.27ter at 4800 & 2400bps

ØITU-T V.21 channel 2 at 300bps for T.30

Integrated support for fax traffic means that the Penril family works with standard communications software packages to:

ØReceive faxes on your computer and print faxes on a local plain paper printer

ØSend faxes directly from your computer, and,

ØSend data at rates up to 230.4Kbps

NETWORK MANAGEMENT

The management software built into the Raymar-Telenetics Penril modem family is compatible with Penril Communications Series 6000 Network Management System. The Series 6000 provides centralized configuration, status monitoring and diagnostic control over a network of Penril modems in any operating mode: dial-up line, leased line, or a combination of both. The Penril reports the condition of the attached DTE port and telephone line to the network management console for easy detection and diagnosis of network faults.

AUTOMATIC DIAL BACKUP

Penril modems support auto dial backup for leased line & dial applications. For leased line applications, the modem monitors the received carrier level and signal quality; in the event performance drops below selected thresholds, Penril modems will automatically establish a dial connection to the remote modem. Automatic loopback allows the communications path to be returned to the leased line when conditions

permit. In dial mode, the modem will redial the number stored in any selected memory cell in the event the connection is lost.

AT & V.25bis AUTODIALERS

Automatic call origination is provided via an AT-compatible or ITU-T V.25bis-compliant autodialer. The AT emulation mode allows the modem to interface with a computer or device running intelligent communications software designed to drive an AT-style modem. The V.25bis autodialer complies with asynchronous and synchronous international serial call origination standards.

V.54 DIAGNOSTICS

Versatile diagnostics are supported for rapid problem isolation and uptime maximization. ITU-T V.54 tests plus self-test can be initiated from the units front panel via AT commands through the DTE interface or through the DIAG port. Penril modems support Analog Loopback (Loop3), Analog Loopback Self-test, Analog Loopback Self-test with Errors, Remote Digital Loopback (Loop2), and Remote Digital Loopback Self-test. In addition to diagnostic tests, Penril modems provide numerous status displays for monitoring the DTE interface and telephone line transmit and receive conditions. The status information is displayed on the units front panel and is available remotely to minimize service calls

to remote locations.

V.42bis & MNP CLASS 5

The Penril modem family supports ITU-T V.42bis and MNP classes 1 through 5 to provide end-to-end error correction and data compression between modems equipped with V.42bis or MNP in the asynchronous operating mode. Error correction is provided by V.42 and MNP classes 2-4. Error correction and data compression is available in both dial and leased line operation.

NETWORK SECURITY

Multiple levels of network security are provided by the Penril family of modems. Penril modems can be programmed to provide manual password protection (MPP) by calling back or passing through the incoming caller after password validation. Automatic password protection (APP) can be used in the synchronous operating mode as well.

APP provides transparent security support by incorporating the password as part of the modem training process. Additionally, the Penril modem can be programmed to call back the originator during the APP security process.

SOFT SETUP

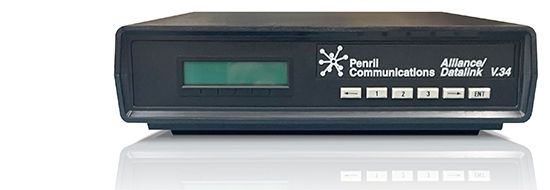

Penril modems support multiple methods of modem configuration. The LCD and six front panel push buttons can configure the unit and alleviate the need for internal switches. AT commands can be used to control configuration parameters through DTE interface. There is also a separate DIAG port through which configuration can be done from a dumb terminal or the Series 6000 Network Management System on both the local and remote modems.
