Industrial Power Adapters

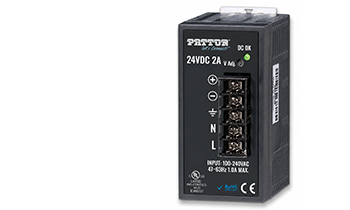

RayTel RT-PS-ACDC Industrial DIN-Rail AC to DC Switching Power Supply

Patton's RT-PS-ACDC is an Industrial Grade Switching Power Adapter/Converter that delivers reliable, regulated DC power from an AC power source for industrial applications. Featuring universal AC/DC input, rugged design, comprehensive protection functions, and support for DIN-rail or wall mounting, it provides dependable power for mission-critical infrastructure deployments.

• Universal AC/DC Input - Accepts 100-240 VAC or 120-370 VDC power sources through a single platform. This simplifies global deployments, reduces inventory, and supports utility, industrial, and telecommunications power environments without requiring multiple power supply variants.
• 24 or 48 VDC - Supports the two most common industrial operating voltages. Provides deployment flexibility while simplifying standardization across control-system and networking installations.
• 48-Watt Regulated Output Power - Delivers stable, regulated DC power for industrial networking equipment, automation controllers, RTUs, IEDs, communications devices, and security systems. Ensures reliable operation of mission-critical infrastructure applications.
• Industrial Temperature - Designed for continuous operation from -40°C to +70°C (-40°F to +158°F). Can be installed in substations, roadside cabinets, utility facilities, outdoor enclosures, and unconditioned industrial environments.
• Integrated Circuit Protection - Built-in short-circuit, overload, over-voltage, and surge protection safeguards both the power supply and connected equipment. Improves system availability and reduces maintenance costs in critical applications.
• Low Ripple and Noise Output - Provides clean DC power for sensitive networking, automation, communications, and electronic control systems. Enhances device performance and minimizes susceptibility to electrical interference.
• Adjustable Output Voltage - Output trim adjustment of up to ±10% allows field optimization for voltage drop compensation and application-specific requirements. Reduces the need for additional power conditioning equipment.
• Compact DIN-Rail Form Factor - Space-saving industrial design supports standard 35-mm DIN-rail mounting or direct wall mounting. Conserves valuable panel space and simplifies installation in crowded control cabinets.
• Fanless Convection Cooling - Passive cooling eliminates moving parts and reduces mechanical failure points. Delivers silent, maintenance-free operation while increasing long-term reliability.
• High Isolation Protection - Provides galvanic isolation between input, output, and chassis ground circuits. Helps protect connected equipment from ground loops, electrical transients, and industrial power disturbances.
• EMC and Industrial Compliance - Meets major industrial EMC, safety, CE, UL, and RoHS requirements. Streamlines regulatory compliance and deployment in demanding industrial environments.
• UPS System Ready - Can be paired with RayTel battery charging and backup modules to create compact DC backup power solutions.
• 100% Full-Load Tested - Every unit is verified under full-load operating conditions before shipment. Provides confidence in long-term performance and deployment reliability.

Patton's RT-PS-ACDC is an Industrial Switching Power Adapter that is engineered to provide dependable DC power for demanding industrial, utility, transportation, telecommunications, and critical infrastructure environments.

Designed for continuous operation in harsh conditions, the power supply combines a compact form factor with industrial-grade performance, making it ideal for powering Ethernet switches, serial device servers, RTUs, IEDs, security systems, wireless communications equipment, and other mission-critical devices.

A universal input design accepts either 100-240 VAC or 120-370 VDC, allowing a single power supply platform to be deployed across a wide variety of global installations and power architectures. This flexibility simplifies procurement, standardization, and field maintenance while enabling deployment in traditional commercial facilities, industrial control cabinets, substations, utility sites, and remote infrastructure applications.

Available in both 24 VDC and 48 VDC output models, the power supply delivers up to 48 watts of regulated output power with excellent voltage stability, low ripple, and high reliability. The output voltage can be field-adjusted to compensate for voltage drops or application-specific requirements, helping ensure proper device operation even in challenging installations.

The rugged industrial design supports operation in extreme temperatures from -40°C to +70°C (-40°F to +158°F), enabling reliable performance in environments where consumer-grade power supplies cannot operate.

Fanless convection cooling eliminates moving parts, increasing long-term reliability while reducing maintenance requirements and eliminating concerns associated with mechanical cooling failures.

To maximize system availability, the power supply incorporates comprehensive protection features including overload protection, short-circuit protection, over-voltage protection, and surge protection. High isolation between input, output, and chassis ground circuits further enhances system resilience by helping protect connected equipment from electrical disturbances commonly encountered in industrial environments.

The compact enclosure supports both 35-mm DIN-rail and wall-mount installation, allowing seamless integration into new and existing control cabinet designs. Convenient screw-terminal connections simplify field wiring and help accelerate installation and servicing activities.

For applications requiring uninterrupted operation, the power supply can be paired with external battery charging and backup modules to create a compact DC UPS solution. This capability makes it particularly well suited for communications networks, SCADA systems, utility automation infrastructure, industrial Ethernet networks, and other critical systems where power continuity is essential.

With industrial EMC compliance, safety certifications, a minimum 100,000-hour MTBF rating, and 100% full-load production testing, Patton's RT-PS-ACDC Switching Power Supply provides the reliability, flexibility, and long service life required for today's mission-critical infrastructure applications.

The RT-PS-ACDC is ideal for providing power to Industrial Ethernet Switches, Industrial Gateways, RTUs and SCADA equipment, Intelligent Electronic Devices (IEDs), Substation automation systems, Security and surveillance networks, Transportation control systems, Telecommunications equipment, Industrial control and automation panels and Remote critical infrastructure installations
