Rack Mount Chassis

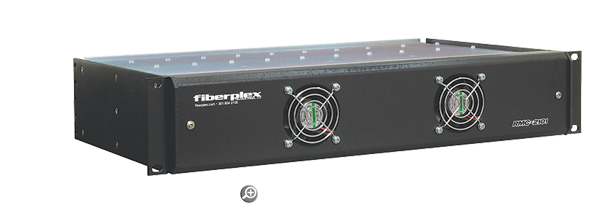

FiberPlex RMC-2100 19" 2U rack mount chassis for FOI series units

Overview

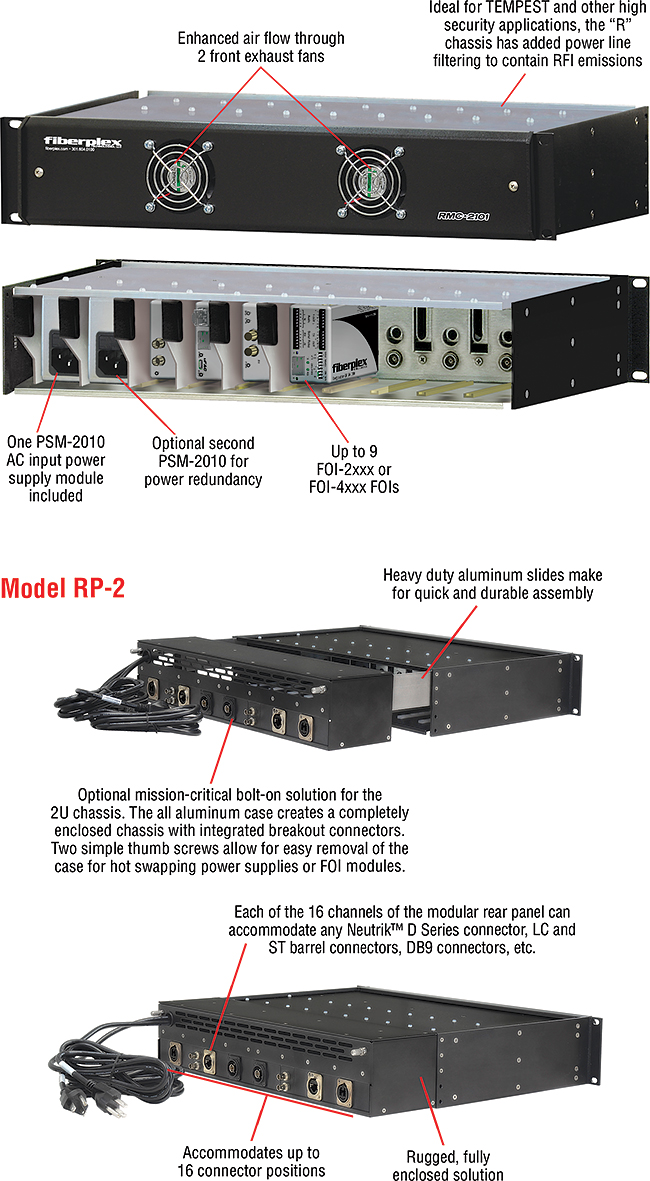

The RMC-2101 provides up to nine available slots for mounting FOI devices. Slot 10 must be occupied by a PSM-2010 power supply module which is included with the chassis. An optional second PSM-2010 can be added for power redundancy, leaving eight available slots for FOI devices.

A cable bay is provided for cable routing and enhanced air flow through two front exhaust fans. Each FOI device must also be accompanied by a CMA-2001 chassis mount adapter, which slides the fiber optic isolator into the slot and assures correct alignment of the isolator power connector to the power bus inside the RMC-2101. For TEMPEST or other high security applications, Patton recommends the RMC-2101R.

Applications

Features

• Up to 9 FOI units can be mounted inside this chassis
• Each FOI device is easily accessible from the rear of the chassis
• Enhanced cooling is performed using two exhaust fans mounted in the front of the chassis
• Power redundancy is available through an optional second power supply module.
• Options for TEMPEST grade RFI power filtering available

Ordering

# Model # Description Availability 1 RMC-2101 19 in EIA Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, (requires CMA-2001 for FOI type isolator mounting) General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 1) Switzerland Power Cord (L) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) Additional Charge: Power Supply PSM-2010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-2xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) 2 RMC-2101-R 19 in EIA�Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, two power line filters, (requires CMA-2001 for FOI type isolator mounting); 2 x US power cords General Availability    Accessories Additional Charge: Power Supply PSM-2010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-2xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) 3 RMC-2101-R-EU 19 in EIA�Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, two power line filters, (requires CMA-2001 for FOI type isolator mounting); 2 x Euro power cords General Availability    Accessories Additional Charge: Power Supply PSM-2010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-2xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) 4 RMC-2101-R-UK 19 in EIA�Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes one PSM-2010 power supply, cooling fans, two power line filters, (requires CMA-2001 for FOI type isolator mounting); 2 x UK power cords General Availability    Accessories Additional Charge: Power Plugs & Cords PSM-2010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-2xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) 5 RMC-2101-RZ 19 in EIA�Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes two PSM-2010 power supplies, cooling fans, two power line filters, (requires CMA-2001 for FOI type isolator mounting); Split Backplane; 2 x US power cords General Availability    Accessories Additional Charge: Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) 6 RMC-2101-RZ-EU 19 in EIA�Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes two PSM-2010 power supplies, cooling fans, two power line filters, (requires CMA-2001 for FOI type isolator mounting); Split Backplane; 2 x Euro power cords General Availability    Accessories Additional Charge: Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis) 7 RMC-2101-RZ-UK 19 in EIA�Rack mount chassis, 3.5 in (2RU) for up to 9 size 2000 or 4000 series FOI type isolators, rear access, includes two PSM-2010 power supplies, cooling fans, two power line filters, (requires CMA-2001 for FOI type isolator mounting); Split Backplane; 2 x UK power cords General Availability    Accessories Additional Charge: Rack CMA-2001   (Qty: 1) Chassis Mounting Adapter for size 2000 or 4000 series FOI type isolators (to be installed in RMC-2xxx series chassis)
