Standalone (Desktop) Enclosures (for FOM cards)

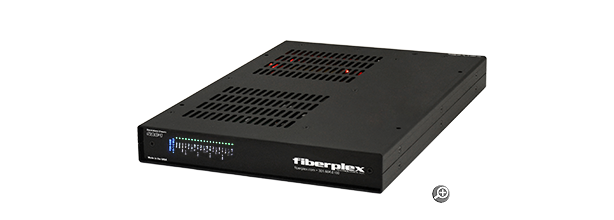

FiberPlex SAC1 Stand-alone single slot chassis for use with FOM series cards

Overview
The SAC-1 is a standalone FOM card chassis, providing power, enclosure and secure mounting for a single Fiber Optic Module. Each SAC-1 may be rack, wall or desktop mounted using the included mounting system.

Bracket configurations include standalone unit for desktop or wall mounting, 1U rack mounting in single unit configuration or a 1U rack mounting in a dual unit configuration.

The FOM cards are field installed from the rear of the chassis, providing electrical and fiber optic connections at the rear of the chassis. A front panel window allows viewing of status LEDs on each installed card and indicating power status, fiber optic link status, signal line status, and control or configuration information.

Applications

Features

• Standalone Unit Housing for any FOM (Fiber Optic Multi-Port Module)
• Desktop, wall mount, rack mount configurations
• Dual side-by-side rack mounting kits available
• Each FOM is accessible and removable through rear of the box
• Available with integrated AC or DC power supply

Ordering

# Model # Description Availability 1 SAC-1/CC-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply); Conformal Coated Special Order    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) Additional Charge: C118473 BENT - Black Anodized Binding Strap C118451   (Qty: 1) Small Bracket Ear for SAC1 (Single unit rack also requires C118450) (Double unit rack requires additional C118451) SAC-1-19RCKMNT-DUAL   (Qty: 1) Dual SAC-1 (2 unit) 19" rackmount kit SAC-1-19RCKMNT-SINGLE   (Qty: 1) Single SAC-1 (1 unit) 19" rackmount kit 2 SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) Additional Charge: Rack SAC-1-19RCKMNT-DUAL   (Qty: 0.5) Dual SAC-1 (2 unit) 19" rackmount kit SAC-1-19RCKMNT-SINGLE   (Qty: 1) Single SAC-1 (1 unit) 19" rackmount kit 3 SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) Additional Charge: Rack SAC-1-19RCKMNT-DUAL   (Qty: 0.5) Dual SAC-1 (2 unit) 19" rackmount kit SAC-1-19RCKMNT-SINGLE   (Qty: 1) Single SAC-1 (1 unit) 19" rackmount kit
