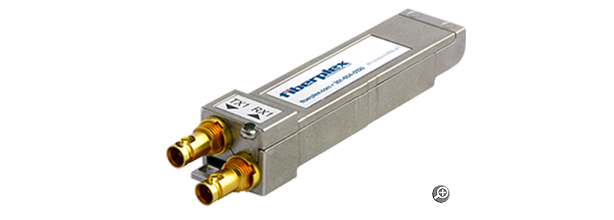

FiberPlex SFP-BH12XC SFP for 12G-SDI Video with HD-BNC copper interfaces

The SFP-BH12XC is a 12Gbps SDI Re-clocked Video Transceiver SFP/SFP+ module with HD-BNC transporting SDI signals conforming to the ST2081, ST2082, ST424, ST292, ST259, DVB-ASI

• Re-Clocked Transceiver - 12Gbps SDI Re-clocked Video Transceiver SFP/SFP+.
• Hot-Pluggable - SDI Video SFP module allows live insertion into video gear.
• SMPTE Compliant - ST2081, ST2082, ST424, ST292, ST259, and DVB-ASI compliant.
• HD-BNC - Miniature Coax HD-BNC connectors.
• All SDI Types - Supports video pathological patterns for SD-SDI, HDSDI, 3G-SDI, 6G-SDI and 12G-SDI. Supports DVB-ASI at 270Mbps.
• Control & Monitoring - Performed via a serial interface and delivering Alarm reports, Input signal detection (RX1_LOS), Voltage & Temperature monitoring, ad Reclocker bypass control.
• Green - Offers Low Power Consumption (typical 825mW @ 3.3V), Pb-free and RoHS compliant.
• Industrial Grade - Extended temperature ranges (-40°C to 85°C), Mechanical compliant with SFF-8431 & SFF-8432, and supporting Ganged Cage or Stacked Cage mounting.

The SFP-BH12XC is a 12Gbps SDI, HD-BNC, Transceiver available in either MSA or Non-MSA variants.   The units are designed to transmit and receive one SDI signal up to 12Gbps over 75 ohms coaxial, re-clocked as defined in ST2081, ST2082, ST424, ST292, ST259, and DVB-ASI.

The unit supports 12G uncompressed video transport and is useful for all kinds of SDI video gear including cameras, video routers and processing cards.

The module supports SDI pathological test patterns and contains one (1) receiver and one (1) transmitter with one (1) re-clocker integrated per channel.  It is a hot pluggable/removable SFP/SFP+ solution for in-field system upgrade and maintenance.

A 2-wire serial interface provides module identification information and diagnostics.   The device is interchangeable with other MSA and Non-MSA video pinouts improving product flexibility.
