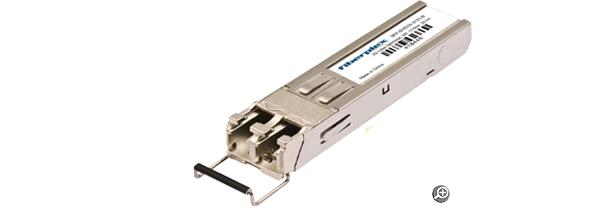

FiberPlex SFP-SH12 SFP Optical Modules optimized for 12G SDI Video over Fiber

The SFP-SH12 series optical modules are optimized for 12G SDI Optical Video. Including Transmitters, Receivers and Transceivers, the units send and receive SDI signals up to 12G with support for SDI pathological patterns.

• 12G SDI Optical - 12Gbps SDI SFP optical to electrical (OE) modules offer high-power transmitters and high sensitivity receivers with support for SDI signals.
• Hot-Pluggable - SDI Video SFP module allows live insertion into video gear.
• All SDI Types - Supports video pathological patterns for SD-SDI, HDSDI, 3G-SDI, 6G-SDI and 12G-SDI. Supports DVB-ASI at 270Mbps
• SMPTE Compliant - ST297, ST259, ST292, ST424, ST2081, ST2082 and DVB-ASI compliant.
• Future Proof - High-density and future-proof architecture.
• Signal Quality - Superior jitter management and signal regeneration. Link budget performance following ST297 with the highest optical performance (fiber stub) and lowest defect rate in the market.
• LC Connectors - Single mode fiber transport is presented on LC connectors for high-density, high-speed networking.
• Control & Monitoring - Performed via a serial interface and delivering Alarm reports, Input signal detection (RX1_LOS), Voltage & Temperature monitoring, and Module Information.
• Green - Offers Low Power Consumption, Pb-free and RoHS compliance.
• Broadcast Grade - Temperature ranges from 0°C to 70°C. Mechanically compliant with SFF-8431 & SFF-8432 and supporting Ganged Cage or Stacked Cage mounting

The Transceiver (SFP-SH12XC-3131-M) is a SD to 12G-SDI optical transceiver designed to transmit and receive one SDI signal up to 12Gbps over single mode fiber as defined in ST297, ST259, ST292, ST424, ST2081, ST2082.

The Receiver (SFP-SH12R2-0031-MN) is a SD to 12G-SDI dual optical PIN receiver designed to receive two SDI signals up to 12Gbps over single mode fiber as defined in ST297.  It offers two high sensitivity receivers.

The modules support SDI pathological test patterns and has a high sensitivity receiver and a high-power transmitter.

The units provide module identification information and diagnostic through a 2-wire serial interface. It is also hot pluggable/removable solution for in field system upgrade and maintenance. The SFP-SH12 units are interchangeable with other MSA and non-MSA datacom pinouts improving product flexibility.
