Media IP Transport

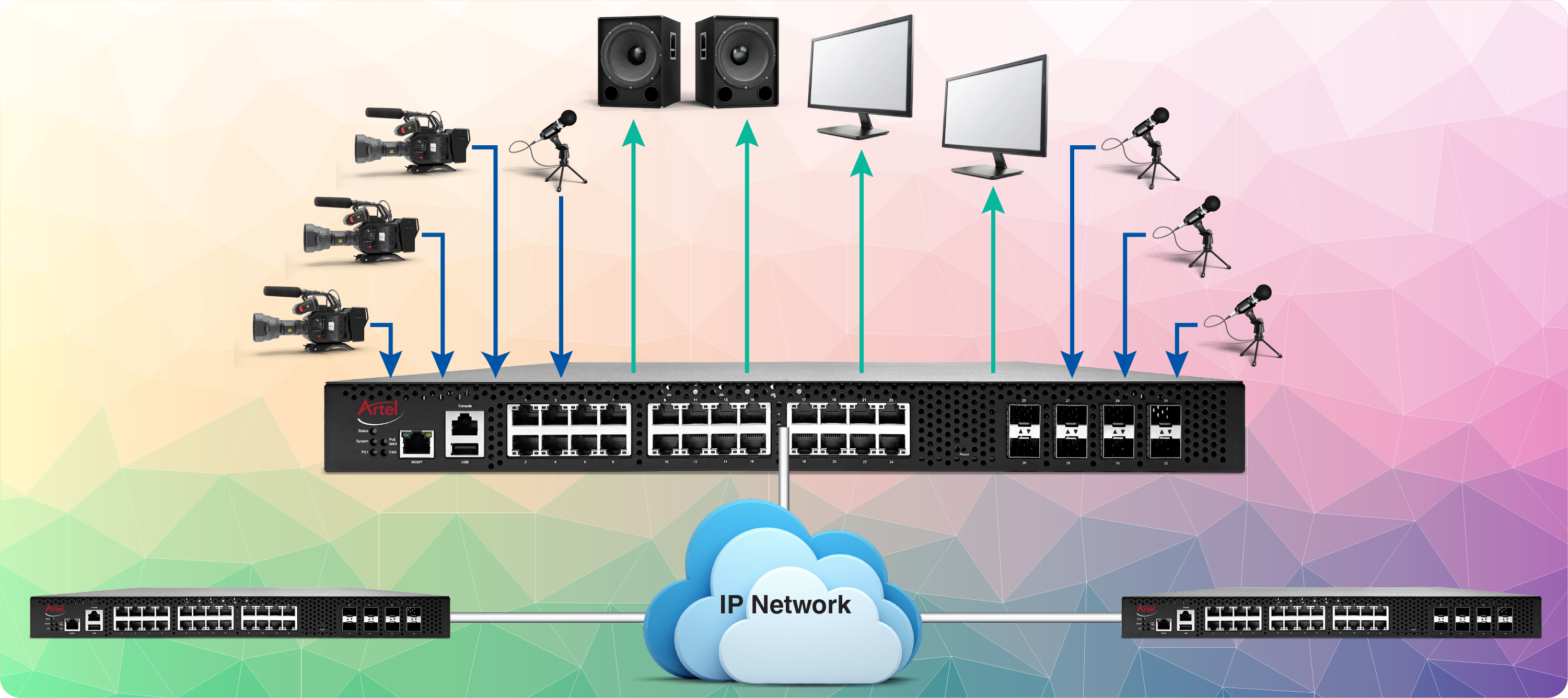

Media IP Transport or Media Over IP is the transmission of video, audio, and related data over and IP (Internet Protocol) network, where the IP network is serving as a backbone to move the signals around a facility or between locations. The technology "converges" multi-media and standard data to a common network infrastructure. Standards like SMPTE ST 2022 and SMPTE ST 2110 have been developed to enable interoperability between different devices and manufacturers. Media IP Transport is used in broadcasting, AV distribution, and other applications and is different from directly transporting media over Fiber. Media over IP transport eliminates the need for dedicated cables and equipment. It also enables easy reconfiguration and scalability which improves flexibility and allows for simplified workflows and is cost-effective compared to direct transmission of analog or SDI.Read Also https://www.artel.com/solutions/media-over-ip/.
Patton Media IP Transport Solutions
- The Artel FiberLink product line offers a SMPTE ST2110 Gateway to assist in integrating a hybrid IP / Fiber network. The Fiberlink product line also now includes a family of ST2110 and ST2022-6 SFP’s to integrate additional IP workflows from your SDI network. This helps eliminate additional 3rd party products and simplifies your network connectivity as well as lowers overall cost.
- The Artel DigiLink product line includes products that support ASI/SD/HD/3G-SDI transport over IP networks using standards based SMPTE ST2022-6 for uncompressed transport. Also available are compressed standards using TR-01 (JPEG-2000). Many products also aggregate a 1GE IP path that can be used for data transfer or remote control and monitoring of your network.
- The Artel InfinityLink product line includes products that support ASI/SD/HD/3G-SDI transport over IP networks using standards based SMPTE ST2022-6 for uncompressed transport. Also available are compressed standards using TR-01 (JPEG-2000). The small footprint and low power make this a great solution for use in fly-away packs for live events that are on the move such as concerts and sporting events.
- The Artel Quarra is the industry’s most accurate PTP Switch that offers nanosecond accuracy to synchronize IP packets from audio consoles and video devices during live events to eliminate latency, audio dropouts and popping.
- The FiberPlex family offers a family of managed and unmanaged switches including PoE capabilities. Included are products that are ruggedized and support wide temperature ranges.
Featured Solutions

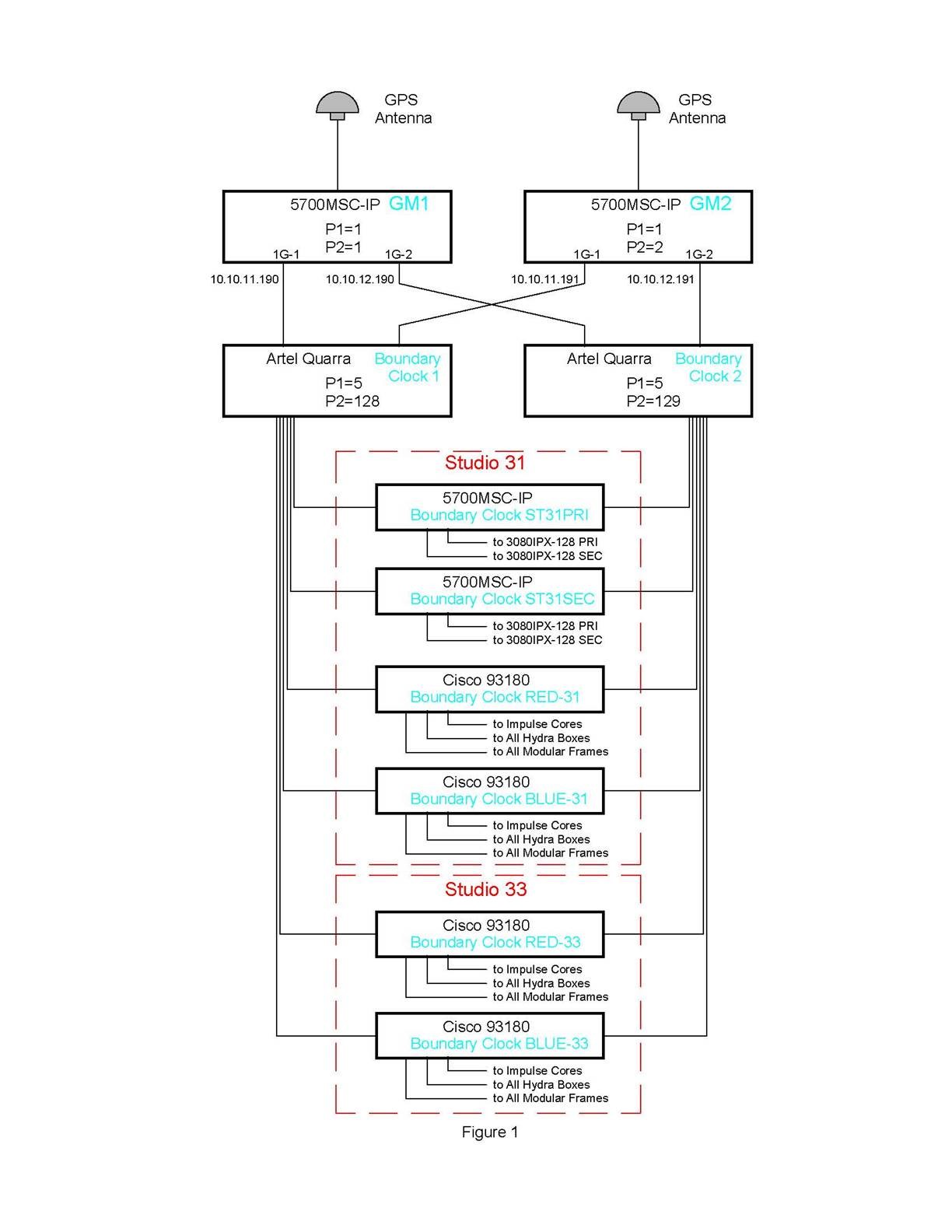

Television City Studios (TVCS) use Quarra Switches to migrate to Media-over-IP using SMTPE ST2110 taking advantage of the new technology for scalability, flexibility in content management, and the lower costs of a converged all-digital infrastructure.
Related Solutions

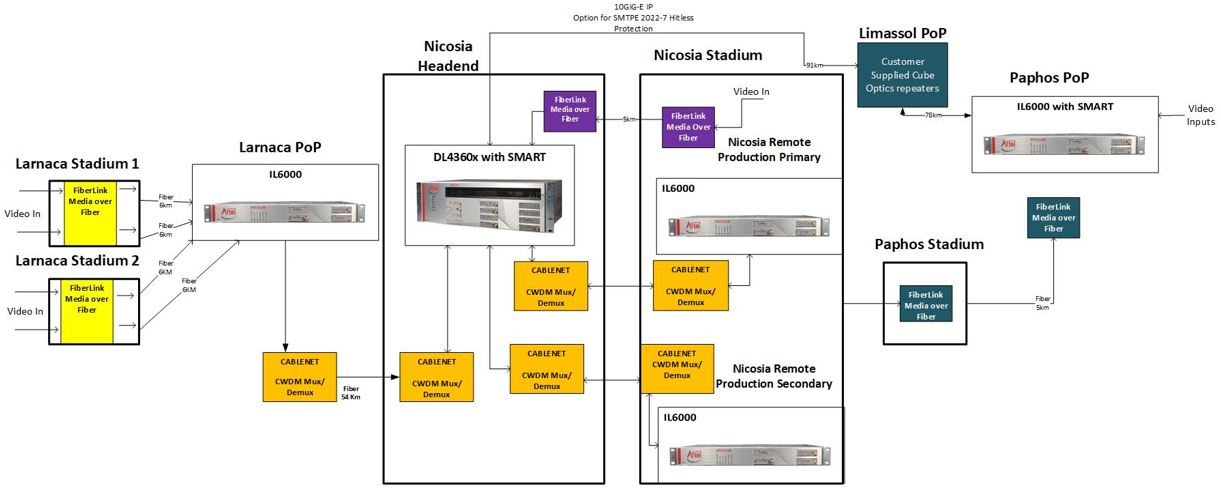

CableNet leverages ST2022-7 to connect stadiums across Cyprus to two remote production studios, distributing to hubs, and on to the headend using Media over IP and using SMPTE ST2022-7 redundancy and avoiding the cost of Satellite links.

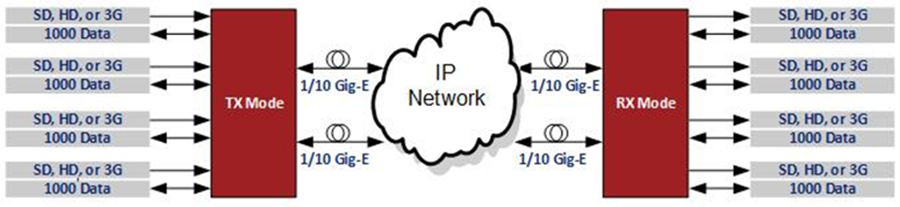

Artel SMART J2K Encoders enabled a Broadcaster to use existing 1-Gig Ethernet Infrastructure to compress four HD-SDI video feeds into a 150 Mb/s per-stream to transport and deliver content to its affiliate.

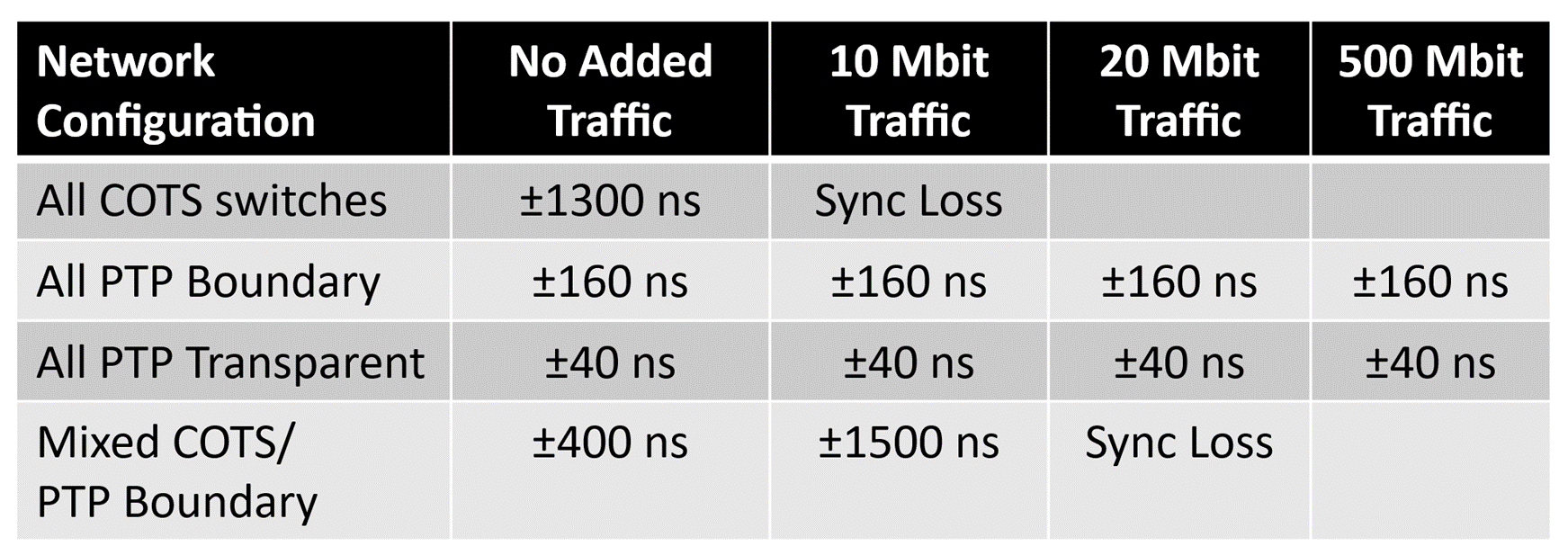

PTP Boundary Clock Testing of Artel’s Quarra switch demonstrates PTP-jitter is dramatically reduced with the Quarra hardware-optimized PTP boundary clock implementation.
Transparent clocking is often sufficient for small sized networks with only a handful of Audio/Video devices. But larger more complex networks benefit from boundary clocking to better manage a heavy PTP message load.
Office-grade Ethernet Switches can really mess up Audio-Over-IP and Audio/Video-Over-IP deployments. Being selective in Ethernet Infrastructure is a must. All AoIP & AVoIP standards, benefit tremendously from Ethernet Infrastructure designed for multi-media workflows.
