Patton TD-6010

Overview
The TD-6010 series is the true “Swiss army knife” of fiber optic transport. The TD-6010 series, along with any combination of FiberPlex of third-party SFP/SFP+ optical & electrical modules, enables you to transport what you want, when you want it, how you want it, wherever you want it. The TD-6012 allows for dual transmit or dual receive SFP/SFP+ modules. The FiberPlex TD-6010 and SFP/ SFP+ module should be in everyone’s toolbox.

Applications
The TD-6010 Series facilitates interface between virtually any fiber optic devices. You simply choose the SFP transceiver modules you need for your application.

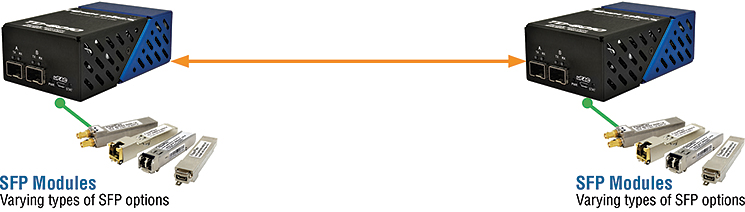

FiberPlex TD-6010 application diagram

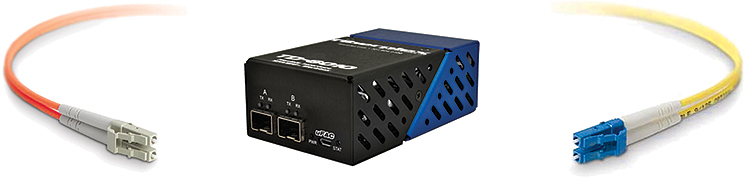

Mode Conversion/Repeater applications

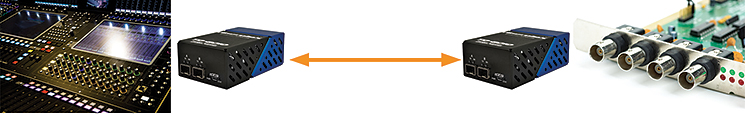

MADI applications

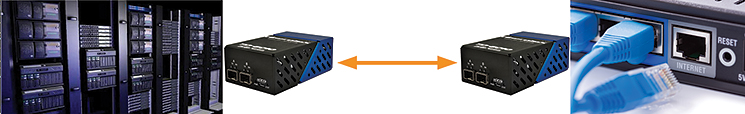

Ethernet applications

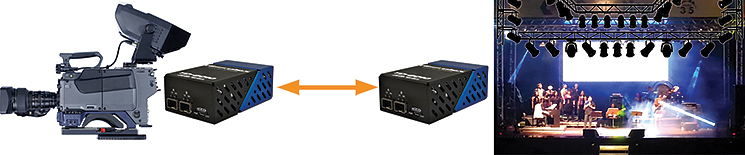

HD Video/Security applications

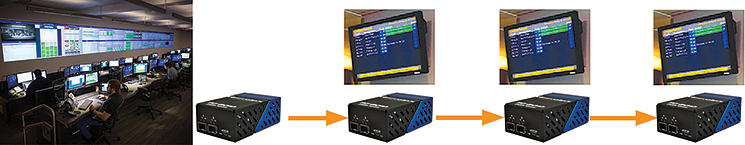

Video Distribution applications

Features

Dual high speed 12.5 Gbps SFP/SFP+ ports
A wide variety of SFPs are available for field installation
TD-6010: Supports Transceiver SFPs
TD-6012: Supports TX or Dual RX SFPs
Can be used to for Multimode to Singlemode conversion, fiber bidirectional (BiDi) conversion, Fiber Repeater, Optical wavelength conversion, 10/100/1000 Ethernet to Fiber, ASI, SD-SDI, HD-SDI & 3G-SDI to fiber, HDMI/DVI to fiber, MADI to fiber, 4K UHD Video to fiber, Video format conversion
Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting.

Ordering

Model #

Description

Availability

TD-6010

Throw Down Box, Flexible Interface Dual SFP/SFP+, MSA Compliant, up to 12.5 Gbps, uFAC USB control, Includes AC Power Adapter

General Availability

Accessories

Additional Charge:
Industrial Solutions
TNE-01-A (Qty: 1)	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector
TNE-01-D (Qty: 1)	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector
TNE-01-N	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power
TNE-03	Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply
Power Plugs & Cords
12000186 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW, US
12000187 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,EU
12000188 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,UK
12000189 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,AUS
12000239 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,CHINA
12000240 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,ARGEN
12000241 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,KOREA
12000242 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,INDIA,SA
12000243 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,BRAZIL
25000003 (Qty: 1)	Wall Mount Power Supply Adapter; 100-240VAC; 12V, 2A, 2.5mm plug
PSWSU0903500 (Qty: 1)	Power Supply, Wall-Mount, Switching, 9VDC, 3.5A, with 5.5 x 2.1mm Barrel Connector Output
Rack
TDP-G (Qty: 1)
TDR-01-AC (Qty: 1)	1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC Power Adapter
Stage / Truss Solutions
TTM-G (Qty: 1)
Standalone Operation
NS-1001R-19ADJDIN (Qty: 1)	19" Rackmount Adjustable Depth 35MM DIN Rail Kit
TD-DINR (Qty: 1)	DIN Rail Mounting Bracket for TD Series Modules

TD-6012

Throw Down Box, Flexible Interface 2 Channel SFP/SFP+ Dual TX/RX, MSA Compliant, up to 12.5 Gbps, uFAC USB control, Includes AC Power Adapter

General Availability

Accessories

Additional Charge:
Industrial Solutions
TNE-01-A (Qty: 1)	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector
TNE-01-D (Qty: 1)	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector
TNE-01-N	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power
TNE-03	Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply
Power Plugs & Cords
12000186 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW, US
12000187 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,EU
12000188 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,UK
12000189 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,AUS
12000239 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,CHINA
12000240 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,ARGEN
12000241 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,KOREA
12000242 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,INDIA,SA
12000243 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,BRAZIL
PSWSU0903500 (Qty: 1)	Power Supply, Wall-Mount, Switching, 9VDC, 3.5A, with 5.5 x 2.1mm Barrel Connector Output
Rack
TDP-G (Qty: 1)
TDR-01-AC (Qty: 1)	1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC Power Adapter
Stage / Truss Solutions
TTM-G (Qty: 1)
Standalone Operation
NS-1001R-19ADJDIN (Qty: 1)	19" Rackmount Adjustable Depth 35MM DIN Rail Kit
TD-DINR (Qty: 1)	DIN Rail Mounting Bracket for TD Series Modules

Universal SFP to SFP Workbox
FiberPlex TD-6010 Dual SFP+ transceiver and Dual TX/RX universal SFP Workbox Industrial Packaging

TD-6010 facilitates connection and conversion of a host of optical and copper signals. You simply choose the SFP transceiver modules you need for your application. The TD-6010 supports a single Transceiver, while the TD-6012 supports Dual TX or Dual RX.
