FiberPlex TDU-4000 Telephone Disconnect Unit for POTS (FXO/FXS) for positive disconnect of instrument while on hook; supports fax, STE and STU equipment

Overview

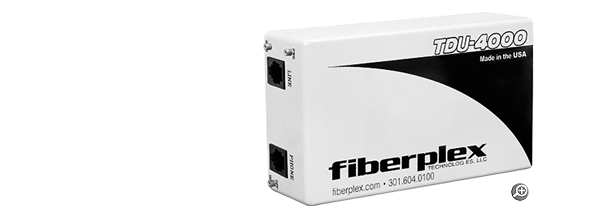

The TDU-4000 provides protection for phones from being used as clandestine listening devices by electrically disconnecting the telephone line from the phone when the phone is in the “on hook” position.

During disconnect the telephone line is left open, while the voice path on the phone is grounded. This disables room audio from being transmitted onto the telephone line to prevent any eavesdropping. The phone will only connect to the telephone line when it is in the “off hook” position. The “off hook” detect and “ring” detect signals are also opto-isolated from the phone.

The TDU-4000 is part of the FOI line of products designed for ruggedized MIL applications. It is housed in the familiar FOI shielded enclosure. For standalone applications it can be powered by adding a PSQ-3909 AC supply or a PSQ-3920 DC power supply (not included). Optionally, up to 8 units can be mounted on CMA chassis adapters and installed in an RMC-3101 rack mount chassis.

Applications

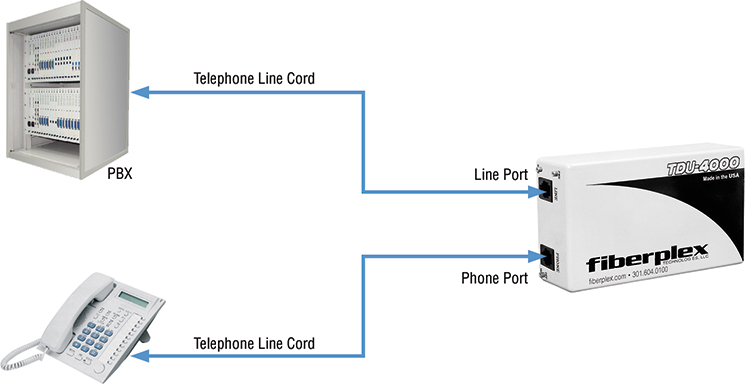

A typical link consists of one TDU-4000 with connections to the POTS line and to the subscriber’s phone. Patton recommends “R” units for high security applications because the units have added shielding and filtering for RFI suppression.

Features

• These units prevent the propagation of signals when phone is on-hook
• Supports rates from DC to 1 Mbps
• Compatible with standard POTS phones, STU-III phones, fax machines and modems

Ordering

# Model # Description Availability 1 TDU-4000 Telephone disconnect unit for Phone, Fax, Data,  STU and STE equipment, 0-56 Kb, one line interface, one instrument interface, TSG-6 listed General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Supply PSQ-3909   (Qty: 1) Easy-On Power Supply for size 3 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 2 TDU-4000-R Telephone disconnect unit for Phone, Fax, Data,  STU and STE equipment, 0-56 Kb, one line interface, one instrument interface, RFI suppressed, TSG-6 listed General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords PSQ-3909-R   (Qty: 1) Easy-On Power Supply for size 3 FOI type isolator stand-alone configuration, 100-240 VAC, 50/60 Hz input, 9V @1A output, RFI Suppressed Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules
