FiberPlex TKIT-12G 12G SDI Fiber Converter/Extender Kits | Extend 12G SDI Video over Fiber

The TKIT-12G offers single or dual channel 12G-SDI Fiber Transport. These Converter/Extender kits extend 12G-SDI video over fiber.

• 12G SDI - Simplifies production and post workflows, providing bandwidth to handle high resolution, high frame rate and deep color content over a single cable.
• Over Fiber - Extends 12G-SDI digital video (75ohm HD-BNC™ Coax) over fiber.
• Long Haul - Supports 20km distances, video optimized, 1310nm, LC Connectors.
• Autosensing SDI - The device auto-senses 12G/6G/3G/HD/SD-SDI formats and supports video pathological patterns.
• Lossless Transmission - Integrated Re-clocker and Cable Driver delivers transparent, broadcast quality lossless transmission.
• High Definition - Widely used in 4K ultra high-definition TV program production, live broadcast of large-scale events.
• SMPTE Compliant - SMPTE 2082, ST2081, ST424M, SMPTE 292M and SMPTE 259M compliant.
• Throw Down - Rugged, compact, portable packaging means the units can be "thrown down" wherever needed, rather than permanently installed in a rack or equipment room.
• Small Form Factor - Small enough to directly connect a camera to fiber.
• DVB-ASI - Support DVB-ASI (Digital Video Broadcasting - Asynchronous Serial Interface) and Audio in SDI stream.
• Mounting Options - Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting. AC Power Adapter Included.

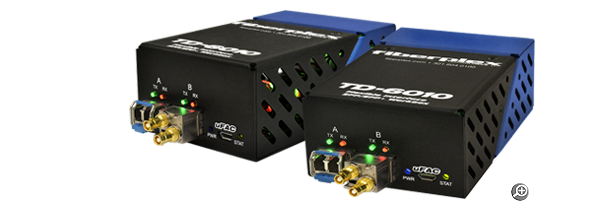

Manufactured in the USA, the FiberPlex TKIT bundles from Patton leverage the incredible flexibility of our TD-6010 and TD-6012 workbox, and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific SDI Fiber Converter application.

The TKIT-12G SDI Fiber Converter extends 12G-SDI digital video (75ohm HD-BNC™ Coax) over fiber.  The TKIT-12G is offered in two versions.  The units offer either bi-Directional (Transceiver) and multi-channel (Transmitter or Receiver) support.

The TKIT-12G/1CH offers bidirectional 12G/6G/3G/HD/SD-SDI over two fibers, like a Transceiver.

The TKIT-12G/2CH offers support for 2 channels of 12G/6G/3G/HD/SD-SDI in one direction over fiber.  You need to use two strands of single mode fiber to support two channels, using a Transmit Unit on one side and a Receive unit on the other.  Only one single mode fiber is required for one channel of single direction transport.

The TKIT 12G is ideal for modern broadcast and production environments where workflows are required between uncompressed 12G/6G/3G/HD/SD-SDI.
