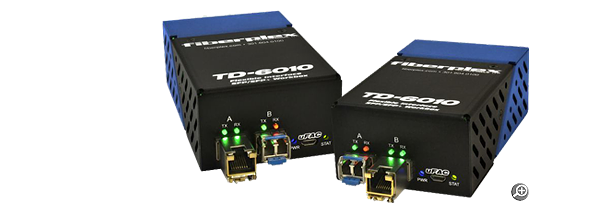

FiberPlex TKIT-DANTE DANTE/AVB Networked Audio over Fiber Extender Kits (2-Pack)

Overview
The ‘TKIT’ bundles leverage the incredible flexibility of our TD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific application. The TKIT-DANTE is a pair of fiber extenders support multichannel audio using the Dante protocol. One unit at each end of a pair of fiber accepts either a 100 Mbps or 1 Gbps Dante connection. The resulting link will extend the usable distance from just 300 meters to up to 12.4 miles (20 km) or more maintaining near-zero latency and synchronization.

Applications
Dante/AVB Fiber Conversion, Extension and Isolation of Audio

Features

• Extend DANTE/AVB/AES67 audio over Fiber
• ULTRA-Low latency for AoIP and other QoS applications
• Support multimode or singlemode operation
• Up to 1.25 Gbps bi-directional links
• Hot-pluggable SFPs
• Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
• AC Power Adapters included

Ordering

# Model # Description Availability 1 TKIT-DANTE-M TD-6010 (Pair) Preconfigured DANTE™ to Multimode Optical Conversion, 1310nm, LC, 2km, Includes AC  Power Adapters General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 2) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,BRAZIL PSWSU0903500   (Qty: 2) Power Supply, Wall-Mount, Switching, 9VDC, 3.5A, with 5.5 x 2.1mm Barrel Connector Output Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 2 TKIT-DANTE-S TD-6010 (Pair) Preconfigured DANTE™ to Singlemode Optical Conversion, 1310nm, LC, 20km, Includes AC  Power Adapters General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 2) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,BRAZIL PSWSU0903500   (Qty: 2) Power Supply, Wall-Mount, Switching, 9VDC, 3.5A, with 5.5 x 2.1mm Barrel Connector Output Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules
