HDMI Fiber Converter | FiberPlex TKIT-HDMI

Overview

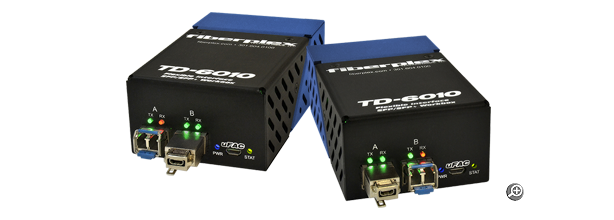

FiberPlex TKIT HDMI Fiber Converter bundles leverage the incredible flexibility of our TD-6010 12.5 Gbps workbox bundled with a set of application-specific SFP modules—creating a simple, easy-to-order solution for your specific application.

The TKIT-HDMI HDMI Fiber Converter / Extender kit includes pair of video-over-fiber converters that extend HDMI/DVI (high-definition multimedia interface®) over fiber without introducing scaling artifacts. The TKIT-HDMI enforces HDCP. That means the units will not pass protected content. Up to 8 channels of audio are supported and de-embedded from the HDMI signal.

Applications
HDMI Fiber Conversion, Extension and Isolation

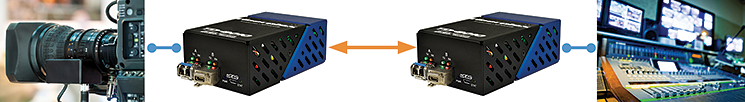

TKIT-HDMI applications

Features

SMPTE 424M, 292M and 259M compliant
Supported formats 25/625, 720p/1080i (50/59.94/60Hz), 1080p (23.98/24/15/29.97/30/50/59.95/60 Hz)
HDMI/DVI Input 24 bit (3x8 bits), RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:4:4, BW = 150Mhz, RGB Range (Full/SMPTE), Up to 8 channel audio de-embedding (PCM), HDMI 1.4 Type D connector, HDMI Type D plug with retention and HDCP supported
Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
AC Power Adapters included

Ordering

Model #

Description

Availability

TKIT-HDMI-M

TD-6010 (Pair) HDMI Video to Multimode Optical Conversion, Video Optimized, 850nm, < 500m, LC, Includes AC Power Adapters

General Availability

Accessories

Additional Charge:
Cable
CBL-HLHAH2-01-02M (Qty: 2)	Cable Assembly, HDMI Type D Locking to Type A, 2 meters
Industrial Solutions
TNE-01-A (Qty: 1)	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector
TNE-01-D (Qty: 1)	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector
TNE-01-N	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power
TNE-03	Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply
Power Plugs & Cords
12000186 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW, US
12000187 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,EU
12000188 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,UK
12000189 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,AUS
12000239 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,CHINA
12000240 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,ARGEN
12000241 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,KOREA
12000242 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,INDIA,SA
12000243 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,BRAZIL
PSWSU0903500 (Qty: 2)	Power Supply, Wall-Mount, Switching, 9VDC, 3.5A, with 5.5 x 2.1mm Barrel Connector Output
Rack
TDP-G (Qty: 1)
TDR-01-AC (Qty: 1)	1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC Power Adapter
Stage / Truss Solutions
TTM-G (Qty: 1)
Standalone Operation
NS-1001R-19ADJDIN (Qty: 1)	19" Rackmount Adjustable Depth 35MM DIN Rail Kit
TD-DINR (Qty: 1)	DIN Rail Mounting Bracket for TD Series Modules

TKIT-HDMI-S

TD-6010 (Pair) HDMI Video to Singlemode Optical Conversion, Video Optimized 1310nm, LC, 20km, Includes AC Power Adapters

General Availability

Accessories

Additional Charge:
Cable
CBL-HLHAH2-01-02M (Qty: 2)	Cable Assembly, HDMI Type D Locking to Type A, 2 meters
Industrial Solutions
TNE-01-A (Qty: 1)	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector
TNE-01-D (Qty: 1)	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector
TNE-01-N	Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power
TNE-03	Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply
Power Plugs & Cords
12000186 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW, US
12000187 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,EU
12000188 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,UK
12000189 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,AUS
12000239 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,CHINA
12000240 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,ARGEN
12000241 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,KOREA
12000242 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,INDIA,SA
12000243 (Qty: 2)	CON,POWER,PLUG,MEGA MJSW,BRAZIL
Rack
TDP-G (Qty: 1)
TDR-01-AC (Qty: 1)	1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC Power Adapter
Stage / Truss Solutions
TTM-G (Qty: 1)
Standalone Operation
NS-1001R-19ADJDIN (Qty: 1)	19" Rackmount Adjustable Depth 35MM DIN Rail Kit
TD-DINR (Qty: 1)	DIN Rail Mounting Bracket for TD Series Modules

Pro-AV Extender/Converter Kits
FiberPlex TKIT-HDMI HDMI Fiber Converter Pro-AV Extender Kits (2-Pack)

The TKIT-HDMI fiber converter kits are pre-configured video-over-fiber kits for extending HDMI video over fiber using multimode or singlemode cabling.
