Pro-AV Extender/Converter Kits

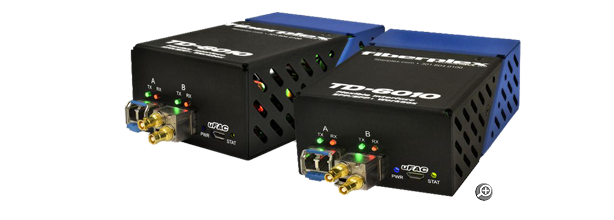

FiberPlex TKIT-MADI MADI/AES10 Audio Over Fiber Extender Kits (2-Pack)

Overview
The ‘TKIT’ bundles leverage the incredible flexibility of our TD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific application. The TKIT-MADI fiber extender kit transports 125 Mbps MADI signals over fiber. The cable driver amplitude and edge rate are automatically configured in order to achieve compliance to AES10-2003.

Applications
MADI Fiber Conversion, Extension and Isolation

Features

• MADI presented over HD-BNC™ 75Ω coax
• Meets Electrical Specifications of AES10-2003
• Integrated Equalizer and Cable Driver
• Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
• Power Adapters Included

Ordering

# Model # Description Availability 1 TKIT-MADI-M TD-6010 (Pair) MADI (AES10) to Multimode Optical Conversion, 1310nm, LC, 2km, Includes AC  Power Adapters General Availability    Accessories Power Plugs & Cords 12-129   (Qty: 2) North American plug for interchangeable power supplies 12-130   (Qty: 2) European plug for interchangeable power supplies 12-131   (Qty: 2) United Kingdom plug for interchangeable power supplies 12-132   (Qty: 2) Australian plug for interchangeable power supplies 12-201   (Qty: 2) Korean plug for interchangeable power supplies 12-202   (Qty: 2) India Type D plug for interchangeable power supplies Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 2 TKIT-MADI-S TD-6010 (Pair) MADI (AES10) to Singlemode Optical Conversion, 1310nm, LC, 20km, Includes AC  Power Adapters General Availability    Accessories Power Plugs & Cords 12-129   (Qty: 2) North American plug for interchangeable power supplies 12-130   (Qty: 2) European plug for interchangeable power supplies 12-131   (Qty: 2) United Kingdom plug for interchangeable power supplies 12-132   (Qty: 2) Australian plug for interchangeable power supplies 12-201   (Qty: 2) Korean plug for interchangeable power supplies 12-202   (Qty: 2) India Type D plug for interchangeable power supplies Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords PSWSU0903500   (Qty: 2) Power Supply, Wall-Mount, Switching, 9VDC, 3.5A, with 5.5 x 2.1mm Barrel Connector Output Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules
