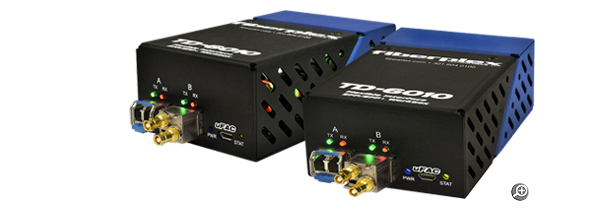

FiberPlex TKIT-SD Analog Video to Optical Conversion Kit

Overview
The ‘TKIT’ bundles leverage the incredible flexibility of our TD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific application.

The TKIT-SD fiber extender kit extends SDI-Analog composite video over fiber. The kit encodes and decodes composite signals over 75Ω coaxial cables via HD-BNC™ connectors. On the receive channel, the module decodes NTSC/PAL composite inputs and convert to SD-SDI signal. On the transmit channel, the module encodes the SD-SDI signal to NTSC/PAL composite.

The TKIT-SDXC-M (Paired 2-Pack) is a Composite Video to Multimode Optical Conversion Transceiver with Video Optimized at 1310nm, < 500m.

The TKIT-SDXC-S (Paired 2-Pack) is a Composite Video to Singlemode Optical Conversion Transceiver with Video Optimized, 1310nm supporting 20km.

The TKIT-SDT2-M (Paired 2-Pack) is a Composite Video to Multimode Optical Conversion supporting 2 Channel Single Direction, Video Optimized at 1310nm, < 500m.

The TKIT-SDT2-S (Paired 2-Pack) is a Composite Video to Singlemode Optical Conversion supporting 2 Channel Single Direction, Video Optimized at 1310nm, for a distance of up to 20km.

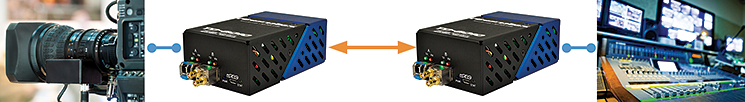

Applications

Features

• SDI-Analog presented over HD-BNC™ 75Ω coax
• SMPTE 259M-C compliant
• Supports composite standards: NTSC M, NTSC J, NTSC 4.43; PAL B/G/H/I/D, PAL M,
• Rx Channel is a 10-bit Composite to SD-SDI video decoder with 4x Oversampling (54Mhz) and Test Pattern Generation
• Tx Channel is a SD-SDI to Composite 10-bit video encoder with up to 16x Oversampling (216Mhz)
• Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
• AC Power Adapter Included

Ordering

# Model # Description Availability 1 TKIT-SDT2-S TD-6010 (Pair) Composite Video to Singlemode Optical Conversion, Dual Channel, Video Optimized, 1310nm, LC, 20km, Includes AC  Power Adapters Special Order    Accessories Power Plugs & Cords 12-129   (Qty: 2) North American plug for interchangeable power supplies 12-130   (Qty: 2) European plug for interchangeable power supplies 12-131   (Qty: 2) United Kingdom plug for interchangeable power supplies 12-132   (Qty: 2) Australian plug for interchangeable power supplies 12-201   (Qty: 2) Korean plug for interchangeable power supplies 12-202   (Qty: 2) India Type D plug for interchangeable power supplies Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 2 TKIT-SDXC-M TD-6010 (Pair) Composite Video to Multimode Optical Conversion, Transceiver, Video Optimized, 850nm, < 500m, LC, Includes AC  Power Adapters Special Order    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 2) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,BRAZIL Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 3 TKIT-SDXC-S TD-6010 (Pair) Composite Video to Singlemode Optical Conversion, Transceiver, Video Optimized, 1310nm, LC, 20km, Includes AC  Power Adapters Special Order    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 2) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,BRAZIL Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules
