Secure US-made SIP Phone

Overview

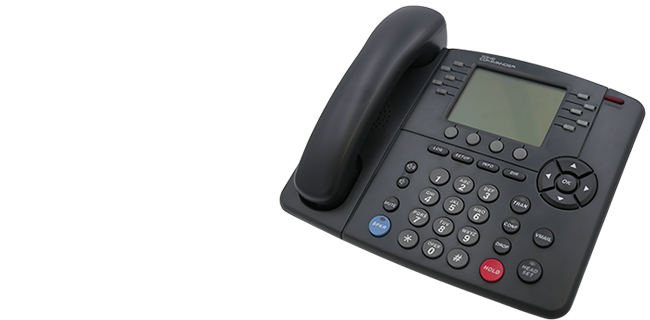

The Tone Commander IP Phone 7010 is a US made, feature-rich, executive-level desk phone designed for state, local, education, and commercial power users. The phone can be powered over Ethernet, or with an included power supply.

Powered by the Patton Cloud, the unit can be securely and automatically provisioned, managed, monitored and orchestrated in mass from a central location. It is also easy install with it's desk or wall mount enclosure; and easy to use thanks to a dedicated headset port with headset control key.

The unit comes with a large high resolution 320 x 240 pixel graphic display. Ten (10) desi-less programmable multi-function line or feature keys enable customization to customer use-cases.

An optional 8030x expansion module increases the number of features and speed dial keys to 40, offering rapid access to the numbers and features you use most.

The 7010 incorporates TLS and SRTP encryption and supports both IPv4 and IPv6 transport.

8030X Button Expansion Module

This option adds 30 multifunction keys to the IP Phone 7010. The additional multifunction keys can be set up as Call Appearance keys, speed dial keys, Direct Station Select keys, or Feature Activator keys. All multifunction keys have both red and green lamp indicators for easy status viewing. This module is ideal for answering positions and high-density key applications.

A close-up of a telephone Description automatically generated

Only one 8030X per telephone is supported.

Features

Made in USA - Designed, developed, and fully manufactured in the USA ensuring source and origin security.
Highly Secure - Secure Real-time Transport Protocol (SRTP), Transport Layer Security (TLS), Hypertext Transfer Protocol Secure (HTTPS) and digitally signed tamper-proof firmware.
Provisioning & Orchestration - Mass secure provisioning using the Patton Cloud Edge Orchestration Service.
SIP Protocol Support - IETF RFC 3261 compliant SIP stack.
Easy Ethernet Connectivity - Switched 10/100 ethernet port enable PC connectivity. Power over Ethernet & local power according to 802.3af.
Large Graphic Display - High resolution 320 x 240 pixel LCD.
Multi-Function Keys - Ten (10) desi-less programmable multi-function line or feature keys. “Desi-less means designations are available on the LCD for customization. Optional 30-button Expansion Module.
Easy Install - Desk or wall mount enclosure with dedicated headset port with headset control key. Automated provisioning.
Handset and Headset Options *NEW* - Standard and Push-to-Talk Handset Options available. An extra headset port allows use of standard compatible headsets.

Ordering

#	Model #	Description	Availability
1	TC7010/POE	Tone Commander 7010 Secure SIP Phone, 10 Lines with POE, Switched PC Port. US Made.	Pre-Order Available
2	TC7010/PTT/POE	Tone Commander 7010 Secure SIP Phone with Push-to-Talk Handset, 10 Lines with POE, Switched PC Port. US Made.	Pre-Order Available

US Made Commercial Secure SIP Phones
Tone Commander TC7010 Tone Commander 7010 US Made Secure SIP Phone, 10 Lines with POE

The Tone Commander IP Phone 7010 is a feature-rich, executive-level desk phone designed for power users. The phone can be powered over Ethernet, or with an optional power supply. The 7010 incorporates TLS and SRTP encryption and supports both IPv4 and IPv6 transport.
