C1D2 Ethernet Switch | Unmanaged 5-port Class 1 Div 2 Ethernet Switch

Overview

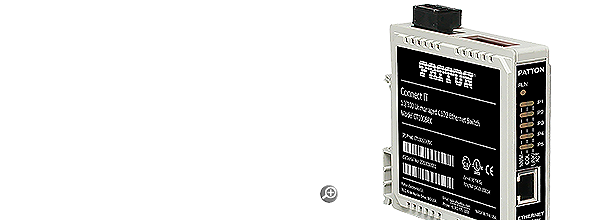

The Connect-IT CT1005EX is an Un-Managed 5-port 10/100 C1D2 Ethernet Switch designed for use in industrial applications. Rugged construction ensures reliable operation under demanding conditions and in the harshest locations. This is a perfect switch for use in power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

The CT1005EX circuit board is made of military grade FR-4 epoxy glass and is housed in a sturdy UL94 V0 rated fiber-reinforced polycarbonate PC-F plastic DIN-rail enclosure.

CT1005EX is fully protected from harmful transients and noise including RFI, EMI, ESD, EFT even surges. Power and network circuits are completely isolated from each other.

Internal intelligence enables simple plug and play operation for fast and easy network installation. Power the switch, plug in the Ethernet connections and let the CT1005EX auto-negotiate data rate, flow control, and even the crossover signal compatibility.

C1D2

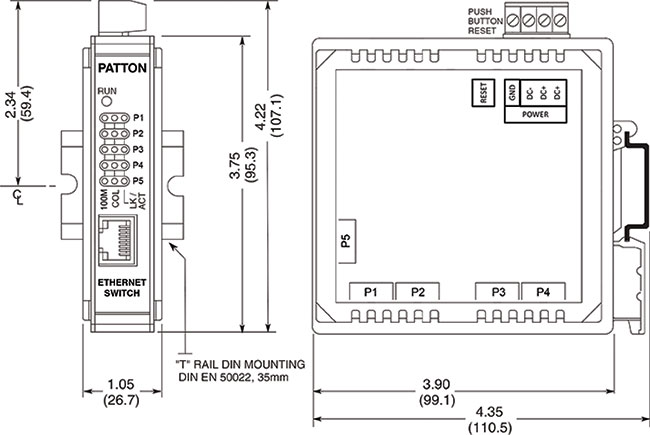

Class 1 Div 2 Ethernet Switch (Class 1 Division 2 Ethernet Switch). CT-1005EX Unmanaged 5-Port Industrial Ethernet Switch Line Drawing

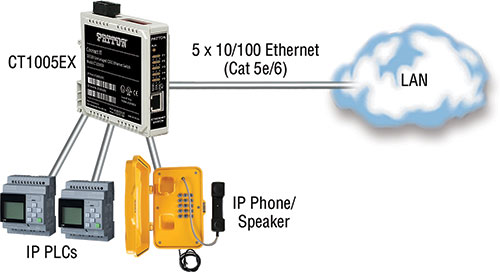

Applications
Class 1 Div 2 Ethernet Switch, Class 1 Division 2 Ethernet Switch | CT-1005EX Unmanaged 5-Port Industrial Ethernet Switch | C1D2 Ethernet Switch

Class 1 Div 2 Ethernet Switch, Class 1 Division 2 Ethernet Switch | CT-1005EX Unmanaged 5-Port Industrial Ethernet Switch | C1D2 Ethernet Switch

Features

Extended Operating Temperature - -13 to 158�F (-25 to 70�C) ambient temperature range
Redundant power input - Wide-Range DC-power with redundant power connection for optional standby backup power
Hardened for harsh environments - Protection from RFI, EMI, ESD, EFT, and surges
Fully isolated - For safety and increased noise immunity with power-to-network and port-to-port isolation
Designed and Manufactured in the USA - Top notch quality and reliability with local support

Ordering

#	Model #	Description	Availability
1	CT1005EX/DC	Unmanaged C1D2 Industrial 10/100 Ethernet Switch; 5 x 10/100 (RJ45); - 25 -70C, 12-36VDC input	Pre-Order Available

Un-Managed Industrial Switches
Connect-IT CT1005EX Unmanaged 5-port 10/100 Mbps Class 1, Division 2 Ethernet Switch, Extended Temperature 13°-158°F (-25° to 70°C)

The CT1005EX Class 1 Div 2 Ethernet Switch is a Class 1 Division 2 Ethernet Switch. This unmanaged 5-port 10/100 Mbps C1D2 Ethernet switch is built to perform reliably in harsh environments.
